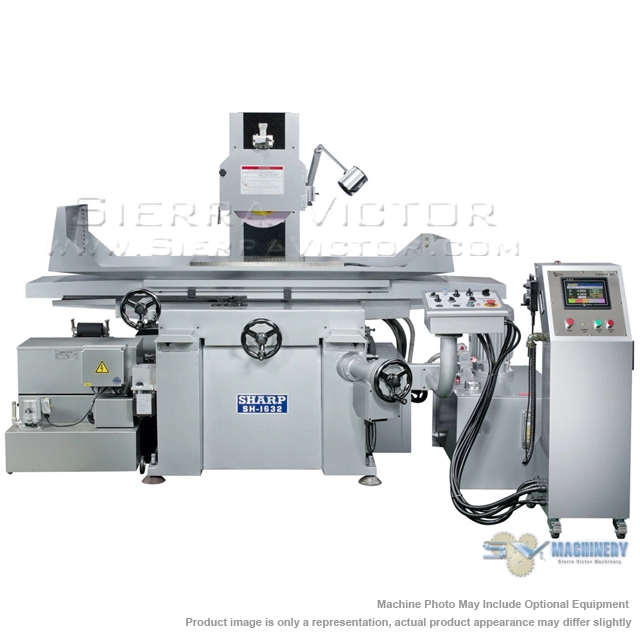

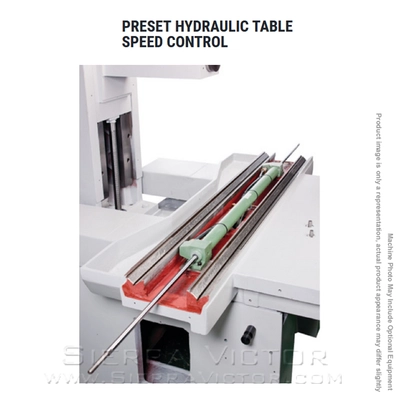

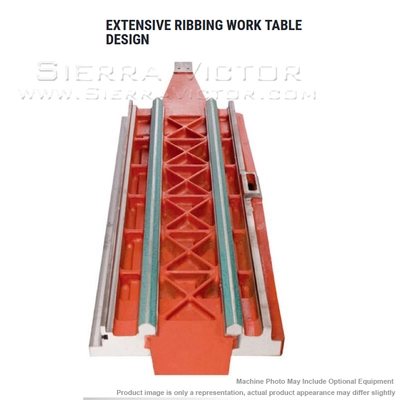

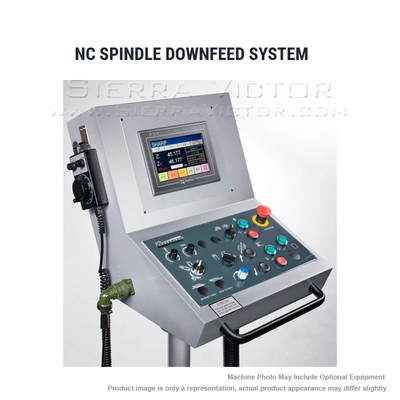

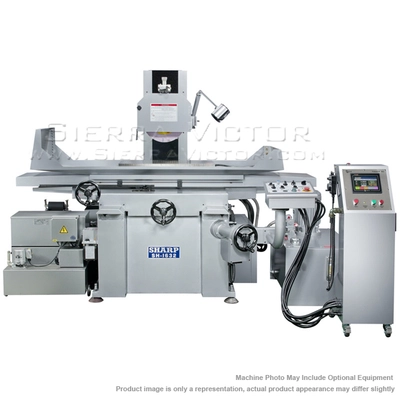

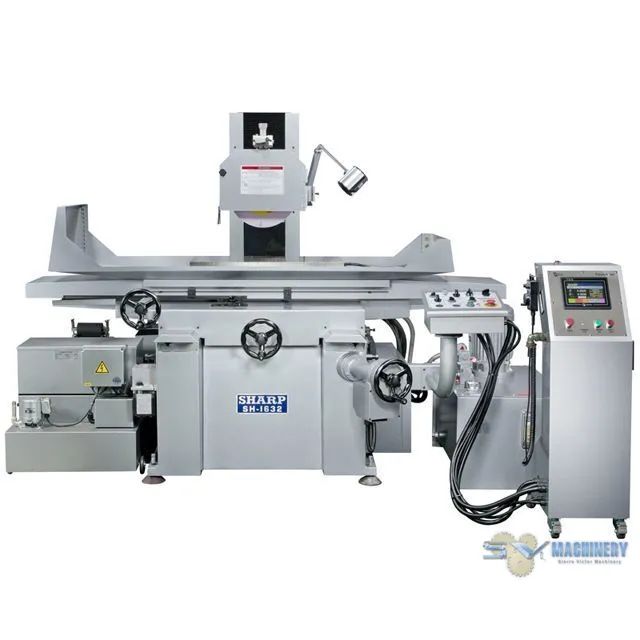

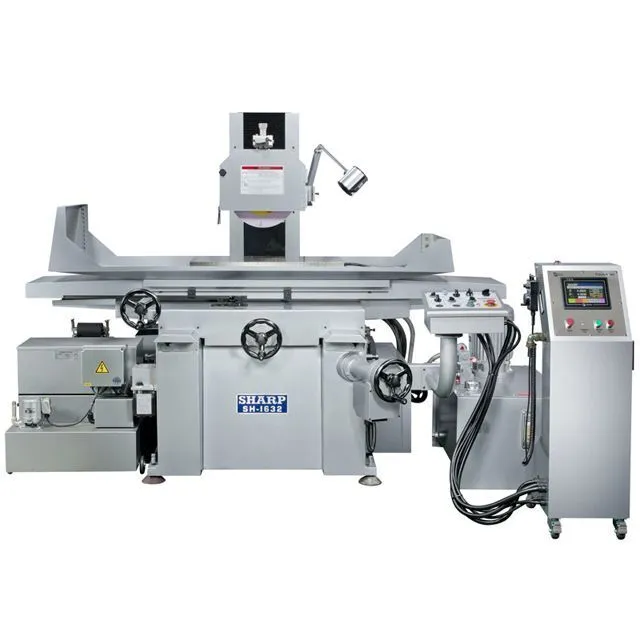

<p>SHARP 9 x 20 inch Automatic Surface Grinder SH-920</p><ul> <li>The model has automatic longitudinal and cross feed. It offers intermittent and continuous cross feed. The table and saddle both has double V ways. The NC spindle downfeed system is optional.</li> <li>2-way auto (longitudinal and cross)</li> <li>Optional NC downfeed with ballscrew and servo feed</li> <li>3 HP motor (SH-920, SH-1224), 5 HP motor (SH-1632)</li> <li>Spindle speed 1,720 rpm</li> <li>Extra wide bed</li> <li>Double longitudinal “V” ways and cross “V” ways</li> <li>Hydraulic table (w/ over travel protection) with pre-set functions</li> <li>Auto crossfeed (intermittent and continuous mode)</li> <li>Slide ways are hand scraped and TURCITE coated</li> <li>Preset hydraulic table speed control: <ul> <li>Preset hydraulic table speed control allows operator to pre-set table feed rate (6 fpm – 83 fpm) so one can have the same speed rate every time the hydraulic table is engaged. The saddle rides on precision, hand scraped double V ways coated with TURCITE for better retaining of lube oil and minimize wear on the ways.</li> </ul> </li> <li>Extensive ribbing work table design: <ul> <li>Extensive ribbing design of the work table allows heavy duty grinding, ensures no distortion of the table even under difficult grinding conditions. Double V ways at the bottom of the work table allows precise longitudinal movement during grinding. The saddle is also equipped with double V ways to ensure precise movement of cross travel.</li> </ul> </li> <li>NC spindle downfeed system: <ul> <li>Settings include : Zero setting, total depth, rough cut, fine cut and number of spark out. down feed speed, table stop at right or left. Electronic handwheel (MPG) allows manual dialing for down feed operations.</li> </ul> </li> </ul><p><strong> STANDARD ACCESSORIES:</strong></p><ul> <li>Coolant System (25 Gal.)</li> <li>Wheel Balancer</li> <li>Wheel Balancing Stand & Arbor</li> <li>Ballscrew on Cross Feed</li> <li>Electronic Crossfeed & Stroke Setting</li> <li>Wheel Flange</li> <li>Grinding Wheel 14” x 1.25“ x 5″(SH-920, SH-1224) 14″ x 1.5″ x 5″(SH-1632, SH-1640</li> <li>Auto Lube System</li> <li>Spindle head rapid up & down</li> <li>Wired 220V or 440V. Please specify</li> <li>Splash guard both front and back<br> </li> </ul><div>ITEM: 9" x 20" Automatic Surface Grinder</div><div>MANUFACTURER: SHARP</div><div>MODEL: SH-920</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: SHARP SH-920%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
