<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shear Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">100"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Thickness (SS)
</div>
</td>
<td width="319" class="TableText">
<div align="center">10 ga. (13 ga.)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Minimum Material Thickness
</div>
</td>
<td class="TableText">
<div align="center">24 ga
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Strokes Per Minute
</div>
</td>
<td width="319" class="TableText">
<div align="center">22
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Front Gauge Length
</div>
</td>
<td width="319" class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Back Gauge Length
</div>
</td>
<td class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Blade Angle
</div>
</td>
<td width="319" class="TableText">
<div align="center">2°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">7.5 HP
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Power
</div>
</td>
<td width="319" class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td width="319" class="TableText">
<div align="center">128" x 44" x 62"
</div>
</td>
</tr>
<tr>
<td width="319" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td width="319" class="TableText">
<div align="center">6,000 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

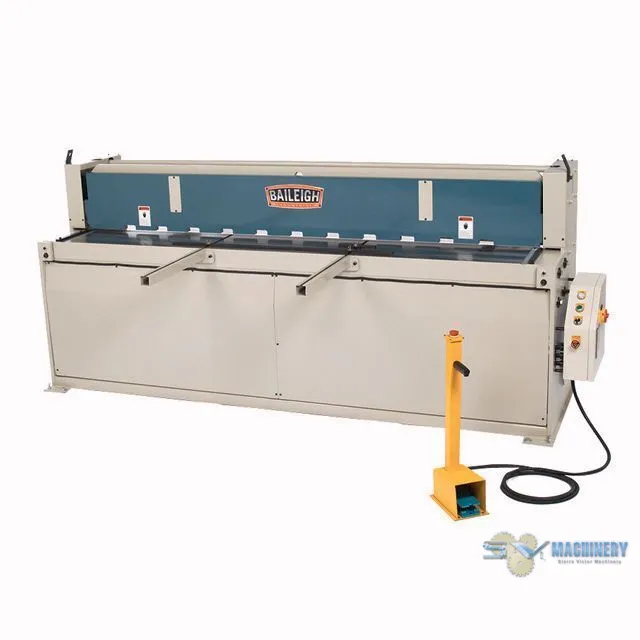

<li> Want to cut <strong>8-foot sheets</strong> without trimming? This <strong>100”-wide</strong> hydraulic shear can handle most applications. Its <strong>ground and polished steel plate frame</strong> ensures quality cuts at full capacity. <br>
</li>
<li><strong>10 gauge</strong> mild steel maximum capacity. </li>
<li> Minimum capacity of 24 gauge mild steel. </li>
<li> 7.5 hp motor runs on <strong>220-volt 3-phase</strong> power. </li>
<li> Powerful <strong>industrial-grade hydraulics</strong> produce smooth movements that prolong blade life. </li>
<li> Up to <strong>22 strokes</strong> per minute. </li>
<li> Adjustable <strong>24” backgauge</strong> provides for repeatability. </li>
<li><strong>Front support arms</strong> and table guides keep the material square to the blade. </li>
<li><strong>3 modes</strong> on the operator console:
<ul>
<li> Inch mode: Jog the control and ease the blade down to the material. </li>
<li> Single mode: Make one cut cycle per foot pedal push. </li>
<li> Auto mode: Continue cycling as you hold the pedal down. </li>
</ul>
</li>
<li> Comes standard with <strong>high carbon chromium blades</strong>. </li>
<li> Blades have <strong>4 shearing edges</strong>, so you can turn them when an edge gets dull to extend blade life and save money. </li>
<li><strong>Hydraulic hold-downs</strong> clamp the sheet solidly to the table, eliminating material lifting and improving blade life. </li>
<li><strong>Fully welded steel construction</strong> helps prevent flex and maintain accuracy for many years. </li>
<li> Covered by a <strong>1-year parts warranty</strong>. </li>
<li> We stock replacement parts, including blades, in house for fast shipping. </li>
<li> Includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalworking experience. </li>
<li> Also available in 80”-long and 120”-long versions (both with 10 gauge capacity). </li>
</ul>
