<p><b>SPECIFICATIONS:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td width="257">
<div><strong><span style="color: #ffffff;">1610084K</span></strong>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Cutting Capacity (W x D)
</div>
</td>
<td>
<div>8-1/2"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Cutterhead Speed
</div>
</td>
<td>
<div>7,000 RPM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Cuts Per Minute
</div>
</td>
<td>
<div>21,000
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Cutterhead Diameter
</div>
</td>
<td>
<div>3"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Number of Knives (Helical/Standard)
</div>
</td>
<td>
<div>3
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Standard Knife Size (L x W x T)
</div>
</td>
<td>
<div>8" x 11/16" x 1/8"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Rabbeting Capacity
</div>
</td>
<td>
<div>1/2"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Rabbeting Ledge
</div>
</td>
<td>
<div>1/2"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Height
</div>
</td>
<td>
<div>32"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Table Size (L x W)
</div>
</td>
<td>
<div>73" x 8-1/2"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Infeed Table Length
</div>
</td>
<td>
<div>35-1/4"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Outfeed Table Length
</div>
</td>
<td>
<div>35-1/2"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Fence Size (L x H)
</div>
</td>
<td>
<div>38" x 4-3/4 "
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Fence Tilts
</div>
</td>
<td>
<div>45° forward, 45° backward
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Fence Positive Stops
</div>
</td>
<td>
<div>45° forward, 45° and 90° backward
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Dust Port Outside Diameter
</div>
</td>
<td>
<div>4"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>
<div>Motor
</div>
</div>
</td>
<td>
<div>2 HP, 1 Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Voltage
</div>
</td>
<td>
<div>230V
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Motor Current
</div>
</td>
<td>
<div>9 A
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Dimensions ( L / W / H ) (in.)
</div>
</td>
<td>
<div>25 x 73 x 46
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc">
<div>Net Weight ( lb. )
</div>
</td>
<td>
<div>490
</div>
</td>
</tr>
</tbody>
</table>

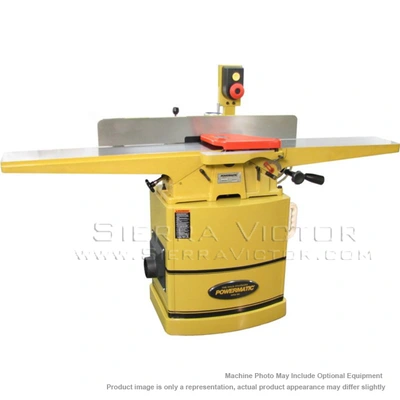

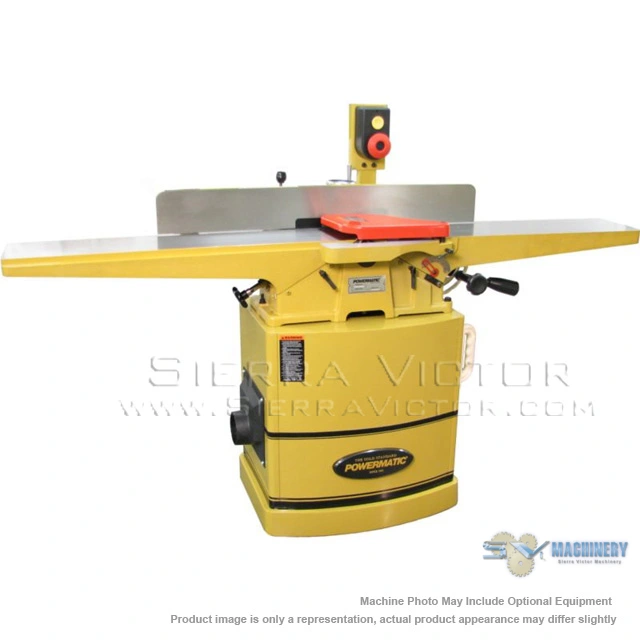

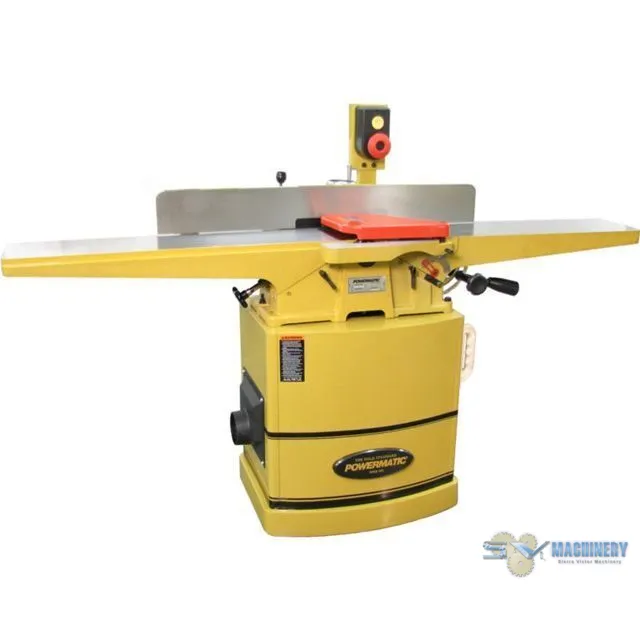

<p><b><br></b><b>FEATURES:</b></p><ul><li>This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.</li><li>High-speed heat-treated steel knives</li><li>Extra long tables are mounted on dovetailed ways, for extended workpiece support</li><li>Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth</li><li>High mount switch for operator convenience</li><li>Handwheel operated worm gear system for smooth fence tilting</li><li>Magnetic push blocks can be stored on the machine within constant reach</li><li>Non-mar fence insert protects table surface</li><li>Large extension rest on infeed table for rabbeting</li></ul>
