<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">

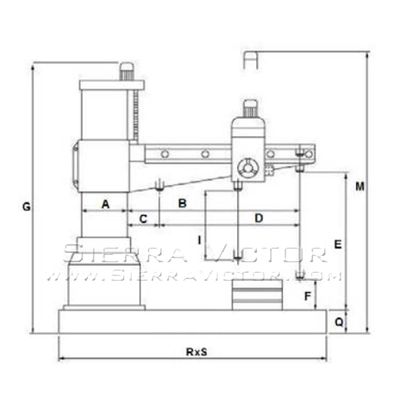

<div>Diameter of column
</div>
</td>
<td class="TableText" width="257">
<div>12.60"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Max distance from column to spindle
</div>
</td>
<td class="TableText">
<div>62.99"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Min distance from column to spindle
</div>
</td>
<td class="TableText">
<div>13.78"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Travel of spindle head
</div>
</td>
<td class="TableText">
<div>49.21"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Max distance from base to spindle end
</div>
</td>
<td class="TableText">
<div>55.91"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Min distance from base to spindle end
</div>
</td>
<td class="TableText">
<div>18.31"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Elevating height of arm
</div>
</td>
<td class="TableText">
<div>26.77"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Effective area of table
</div>
</td>
<td class="TableText">
<div>24.80" x 19.69" x 19.69"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Dimensions of base
</div>
</td>
<td class="TableText">
<div>93.11" x 38.19" x 7.87"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Drilling capacity steel
</div>
</td>
<td class="TableText">
<div>1.97"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Drilling capacity cast iron
</div>
</td>
<td class="TableText">
<div>2.36"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Tapping steel
</div>
</td>
<td class="TableText">
<div>1.57"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Tapping cast iron
</div>
</td>
<td class="TableText">
<div>1.97"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Taper hole sppindle
</div>
</td>
<td class="TableText">
<div>MT #5
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Stroke of spindle
</div>
</td>
<td class="TableText">
<div>10.63"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>R.P.M of spindle (rpm x steps)
</div>
</td>
<td class="TableText">
<div>56 - 1,450 rpm x 12 Steps
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Feed of spindle (rev. x steps)
</div>
</td>
<td class="TableText">
<div>0.0024", 0.0039", 0.0079" x 3 steps
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Main motor
</div>
</td>
<td class="TableText">
<div>5 HP, 3 phase (2-speed motor)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Elevating motor
</div>
</td>
<td class="TableText">
<div>2 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Hydraulic clamping motor
</div>
</td>
<td class="TableText">
<div>1 HP hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Coolant pump
</div>
</td>
<td class="TableText">
<div>1/8 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. machine height from floor
</div>
</td>
<td class="TableText">
<div>108.66"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Dimensions
</div>
</td>
<td class="TableText">
<div>106" x 45" x 95"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Net Weight
</div>
</td>
<td class="TableText">
<div>7,275 lbs.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Weight
</div>
</td>
<td class="TableText">
<div>8,380 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Design and Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Hydraulic clamping system of column, arm, and head controlled by push button switch</li>
<li>Power elevating motor arm with anti-fall safety device</li>
<li>Hardened and precision ground arm ways</li>
<li>The arm is made of high quality cast iron through heat treatment process and precision grinding</li>
<li>The spindle is counter balanced by means of an adjustable block</li>
<li>Limit safety device for operation</li>
<li>Built-in coolant system</li>
<li>Work light</li>
<li>5 HP 2-speed spindle motor</li>
</ul>
<p><strong> STANDARD ACCESSORIES: </strong>
</p>
<ul>
<li>Plain box table</li>
<li>Work light</li>
<li>Coolant system</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white" bgcolor="#333333">
<td width="85" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong></strong></span>
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</td>
<td width="361" bgcolor="#333333">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">43407
</div>
</td>
<td>
<div align="center">440V Conversion
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">19014-02
</div>
</td>
<td>
<div align="center">Tilt table 520 x 510 x 570 mm (20.47" x 20" x 22.44")<br>
(when ordering with machine)
</div>
</td>
</tr>
<tr>
<td class="optional_accessories" bgcolor="#CCCCCC">
<div align="center">19014-03
</div>
</td>
<td>
<div align="center">Tilt table 810 x 710 x 610 mm (31.89" x 27.95" x 24")<br>
(when ordering with machine)
</div>
</td>
</tr>
</tbody>
</table>
