<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText" width="257">
<div align="center">72"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText">
<div align="center">4.67 rpm.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Upper Roll Dia.
</div>
</td>
<td class="TableText">
<div align="center">5.91"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Forming Dia
</div>
</td>
<td class="TableText">
<div align="center">8.86"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">9 ga. (.150")
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div align="center">114" x 32" x 52"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">5,610 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

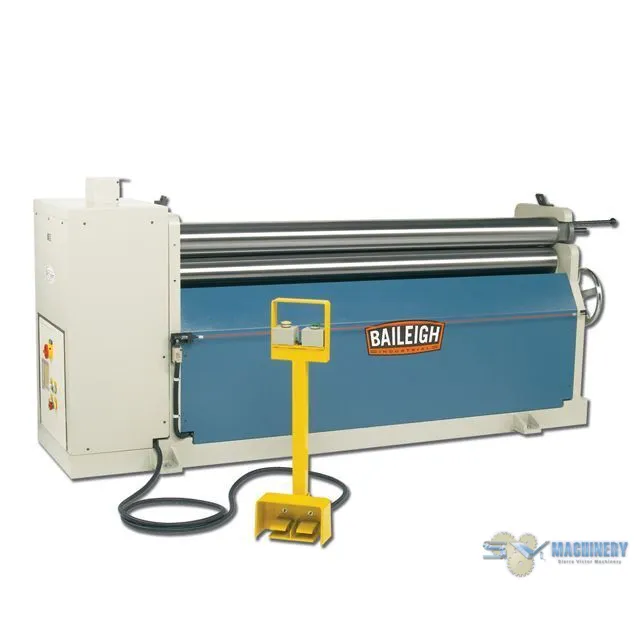

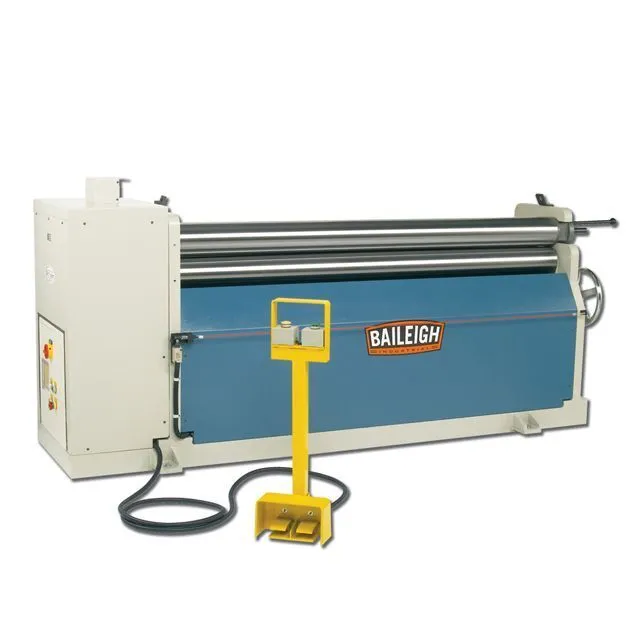

<li> The PR-609 hydraulic plate roll features an <strong>industrial-grade hydraulic system</strong> and <strong>welded steel frame</strong> that offer enough power to handle 9-gauge mild steel all day long. All functions on this steel plate rolling machine are hydraulically controlled for reliability. </li>
<li><strong>6'</strong> forming width.</li>
<li><strong>9 gauge</strong> mild steel maximum capacity.</li>
<li><strong>3 hp</strong> motor runs on <strong>220-volt 3-phase</strong>.</li>
<li>Hydraulic system controls the back roll.</li>
<li><strong>Foot pedestal</strong> allows you to easily control some bending functions; forward, reverse, up, and down.</li>
<li><strong>Simple release mechanism</strong> on the top roll to release work that has been wrapped around the top roll.</li>
<li><strong>Digital readout</strong> shows you the back roll’s exact position the whole time.</li>
<li><strong>Fully integrated plate steel frame</strong> keeps the forming rolls perfectly in alignment during the bending process.</li>
<li>Dual emergency stop cables are located on the back and front of the machine.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Includes <strong>lifetime technical support by phone</strong> for our team of experts, all with hands-on machine experience.</li>
</ul>
