<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Working Length
</div>
</td>
<td class="TableText" width="257">
<div align="center">78.74"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText">
<div align="center">80"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Driven Rolls
</div>
</td>
<td class="TableText">
<div align="center">2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText">
<div align="center">16 fpm. (5 mpm)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Upper Roll Dia.
</div>
</td>
<td class="TableText">
<div align="center">7"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Diameter
</div>
</td>
<td class="TableText">
<div align="center">7.4"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Side Roll Dia
</div>
</td>
<td class="TableText">
<div align="center">5.9"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Length
</div>
</td>
<td class="TableText">
<div align="center">80.70"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Forming Dia
</div>
</td>
<td class="TableText">
<div align="center">10.6"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">4 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div align="center">138" x 43" x 51"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">7,700 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

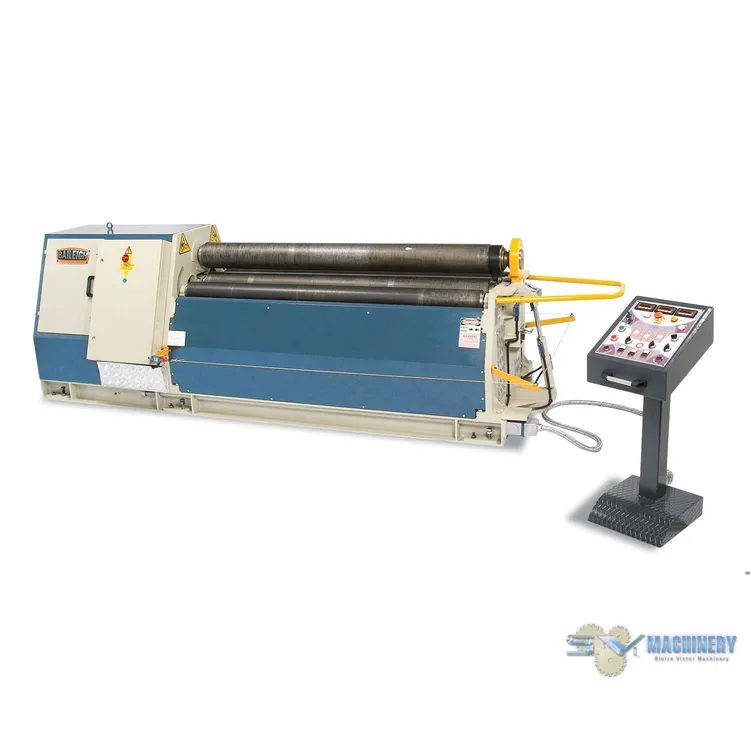

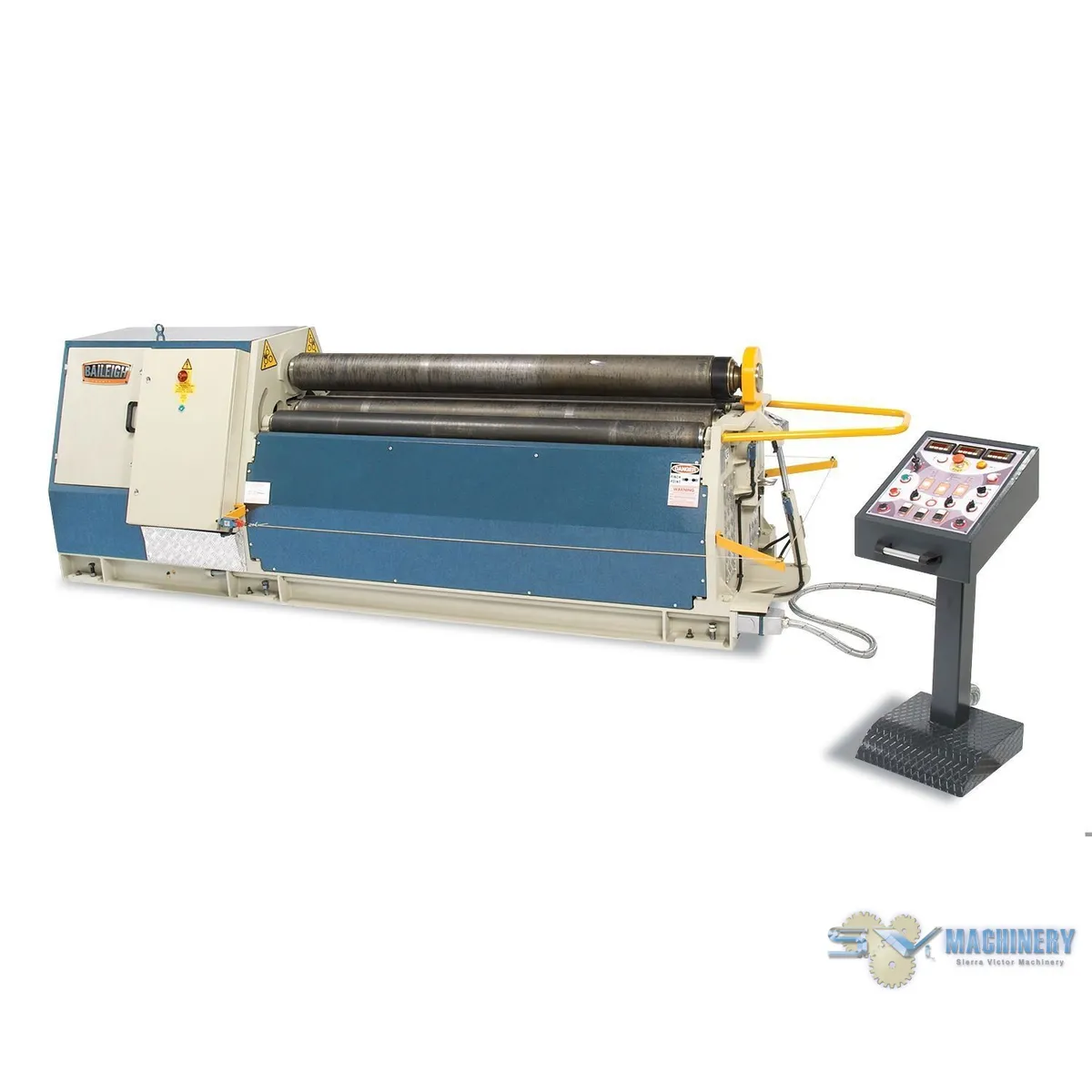

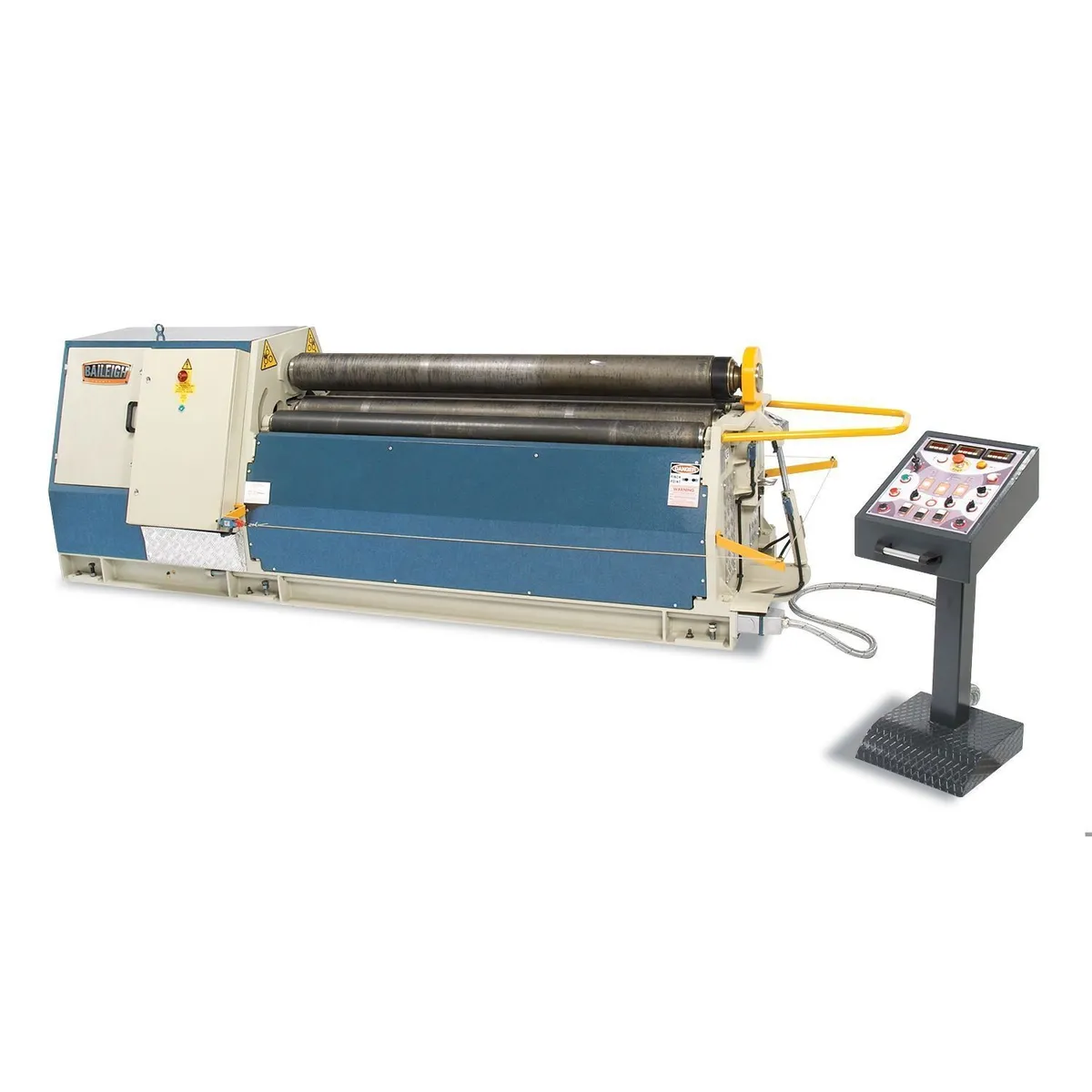

<li> We designed this plate roll for years of trouble-free use. <strong>Direct movement</strong> on the lateral rolls can form <strong>tighter diameters with less work</strong>, whereas many plate rolls rely on orbital movement.</li>
<li>Rolls up to ¼” mild steel in <strong>6-foot</strong> lengths.</li>
<li>Robust 4 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>
<li><strong>Planetary gearbox</strong>, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.</li>
<li><strong>Direct linear piston movement</strong> for the lateral and forming rolls delivers even more power.</li>
<li>Industrial 1.5 hp hydraulic motor moves the lateral rolls.</li>

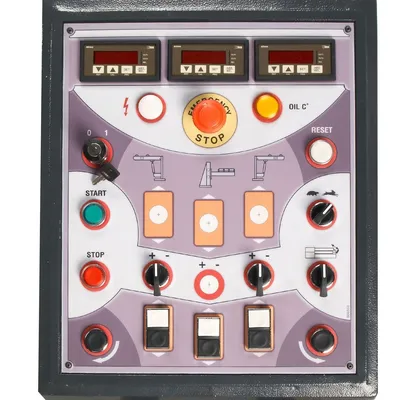

<li><strong>3 digital readouts</strong> give accurate roll locations for easy repeatability.</li>
<li><strong>Operator control pedestal</strong> lets you conveniently manage all movements of the machine.</li>
<li><strong>Welded steel plate frame</strong> keeps the machine rigid and helps prevent flex.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Includes <strong>lifetime technical support</strong> by phone from our team of in-house machine experts.</li>
<li><strong>Special Capacities:</strong>
<ul>
<li>Capacity at 5x roll diameter without pre bending .315”.</li>
<li>Capacity at 1.5x roll diameter without pre bending .236”.</li>
<li>Capacity at 1.5x roll diameter with pre bending .157”.</li>
</ul>
</li>
</ul>
