<p><b>SPECIFICATIONS:</b></p>
<table width="520" cellspacing="0" cellpadding="0" border="1" class="TableText">
<tbody style="text-align: center;">
<tr class="TableText">
<td width="279" bgcolor="#cccccc"><div align="center">Style (Type)</div></td>
<td><div align="center">Combination Belt/Disc</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Disc Diameter (In.)</div></td>
<td><div align="center">12</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Disc Speed (RPM)</div></td>
<td><div align="center">2,375</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Disc Table Tilt (Deg.)</div></td>
<td><div align="center">15 Up, 45 Down</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Disc Table Size (L x W) (In.)</div></td>
<td><div align="center">17-1/4 x 9</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Sanding Belt Size (L x W) (In.)</div></td>
<td><div align="center">6 x 48</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Belt Speed (RPM)</div></td>
<td><div align="center">2,410</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Belt Table Tilt (Deg.)</div></td>
<td><div align="center">45 Down</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Belt Table Size (L x W) (In.)</div></td>
<td><div align="center">13-1/4 x 7-1/2</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Sanding Arm Locking Positions</div></td>
<td><div align="center">0/45/90</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Collection Minimum CFM Required (CFM)</div></td>
<td><div align="center">400</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Port Outside Diameter (In.)</div></td>
<td><div align="center">4</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Power (HP)</div></td>
<td width="235"><div align="center">2</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Phase</div></td>
<td><div align="center">3</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Voltage (V.)</div></td>
<td><div align="center">230/460</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Prewired Voltage (V.)</div></td>
<td><div align="center">230</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Wiring Remarks</div></td>
<td><div align="center">Magnetic Switch / <br>
Must purchase 31A-MSA-2<br>
for 460V operation</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Motor Current (Amps)</div></td>
<td><div align="center">7/3.5</div></td>
</tr>
<tr>
<td bgcolor="#cccccc"><div align="center">Recommended Circuit Size (Amps.)</div></td>
<td><div align="center">20/10</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

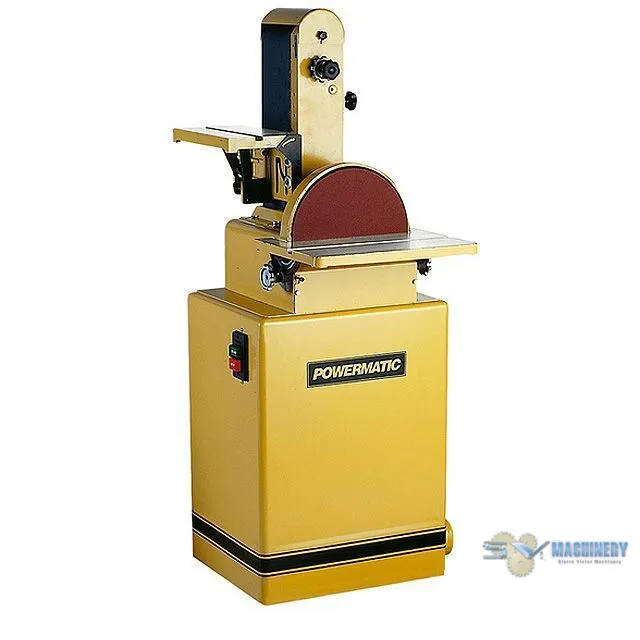

<p>Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.<br></p>
