<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" rowspan="10" width="95" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>SPINDLE CAPACITY</strong></span>
</div>
</div>
</td>
<td class="TableText" bgcolor="#cccccc">
<div>With jaw chucks
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>6"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With expanding collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>3"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With round 5C collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1-1/16"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With hexagon 5C collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>7/8"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>With square 5C collets
</div>
</td>
<td class="TableText" width="173" bgcolor="#ffffff">
<div>3/4"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>With step chucks
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1-1/16” to 6”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Spindle nose diameter
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>2.189”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Spindle nose I.D. / O.D.
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>5C / Chuck with 4º taper <br> (5C / 2-3/16”-10 TPI)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Hole through spindle
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1-1/4"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Variable spindle speeds
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>0 ~ 4,000 rpm (5C Collet)
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="3" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>CAPACITY</strong></span>
</div>
</div>
</td>
<td class="TableText" bgcolor="#cccccc">
<div>Swing over bed
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>12.992"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Max. fixture diameter
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>9"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Max. distance from face of turret to spindle
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>14"
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="5" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>FEEDS, </strong><strong>TRAVEL & THREADS</strong> </span>
</div>
</div>
</td>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Carriage power feed range (per minute)
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>0.236” ~ 9.842” (variable)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Cross slide power feed range <br>(per minute)
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>0.354” ~ 6.299” (variable)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Cross slide travel:
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>4.488”
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Metric threads:
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>0.2 ~ 6.35 mm <br> (digital threading system)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>Threads range
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>4 ~ 120 TPI <br> (digital threading system)
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="3" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>POWER</strong></span>
</div>
</div>
</td>
<td class="TableText" bgcolor="#cccccc">
<div>Coolant pump
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1/8 HP, 220V, 3PH
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Feed inverter motor
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1/2 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Main motor
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>3 HP, 220V, 3PH
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="2" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>WEIGHT & DIMENSIONS</strong></span>
</div>
</div>
</td>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>
<div>Machine dimensions (LxWxH):
</div>
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>74” x 34” x 74”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="244" bgcolor="#cccccc">
<div>
<div>Gross weight:
</div>
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>
<div>2,420 lbs.
</div>
</div>
</td>
</tr>
</tbody>
</table>
<p>Design and Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>

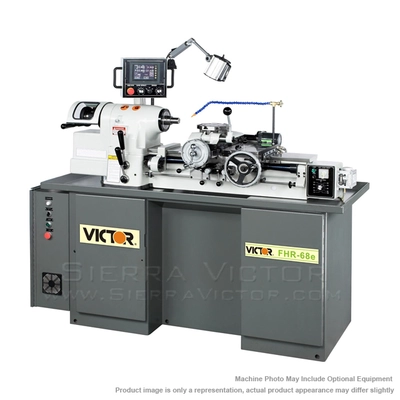

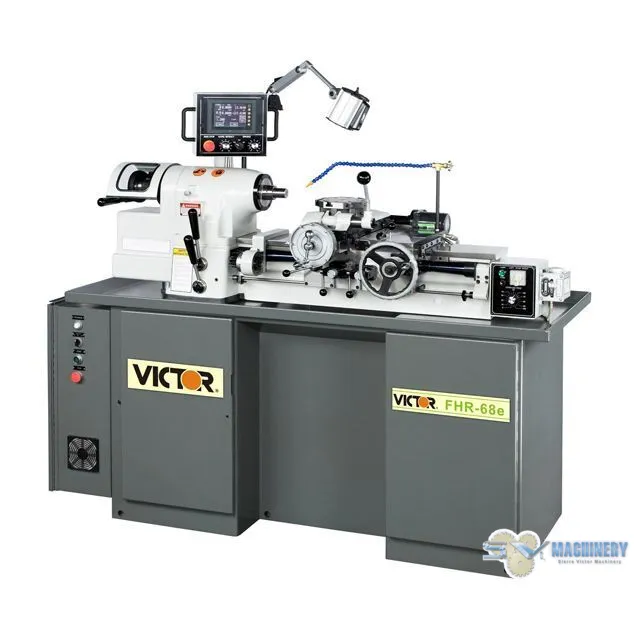

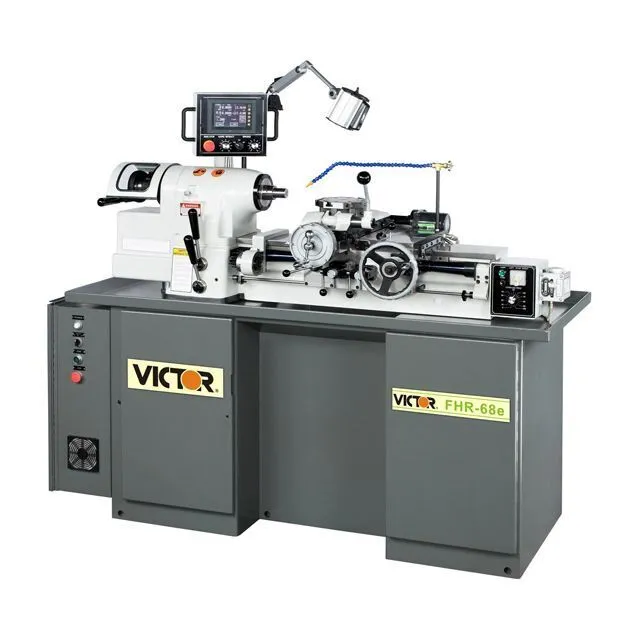

Super-precision Digital Threading Technology chucking lathe comes with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quiet. Easy to use LCD touchscreen to simplify threading operations by selecting target TPI or mm pitch on the screen. DRO capabilities are built-in as standard. Victor FHR-68e chucking lathe is built with extreme precision and performance in mind.
</li>
<li> Digital Threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor feed</li>
<li>LCD touchscreen to select thread pitch (TPI or mm) with no gears to change</li>
<li>DRO functions integrated into LCD panel features linear scales on X and Z axis</li>
<li>14" maximum distance from face of turret to spindle</li>
<li>The spindle is mounted in high precision preloaded angular contact ball bearings</li>
<li>Infinitely variable spindle speeds from 0 ~ 4,000 rpm</li>
<li>Fast lever collet chucking with a single movement</li>
<li>Preloaded ball bearing 8-station turret with indexing lever</li>
<li>Solid hardened and ground alloy tool steel bed</li>
<li>Independent electric variable speed</li>
<li>Full bearing carriage with Turcite-B slideway bearing surface</li>
<li>Hi/Low speed quick change lever for convenience</li>
<li>5C lever type collet closer standard</li>
<li>3 HP frequency controlled motor (inverter drive)</li>
<li>Digital Threading System is microprocessor controlled and carried out by synchronized spindle speed and servo motor feed. Simply select threading pitch on LCD touchscreen with no gears to change.</li>
<li>Select desired threading pitch and direction. Start spindle rotation and carriage feed as normally by using start/stop levers.</li>

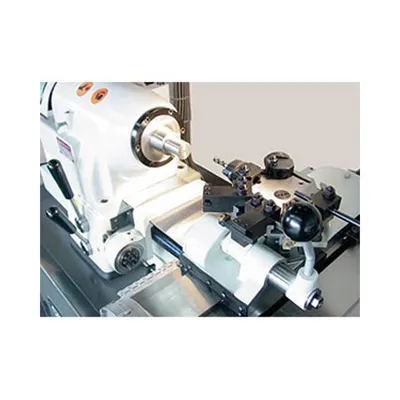

<li>8-position carriage stop which can be setup to simplify multiple repetitive tool feeds.</li>

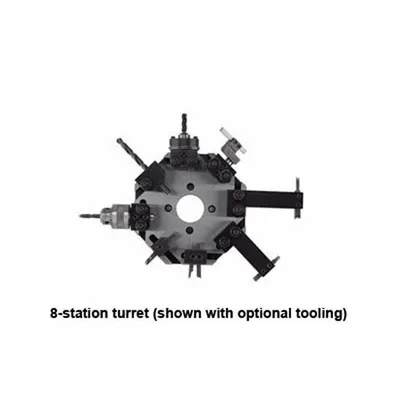

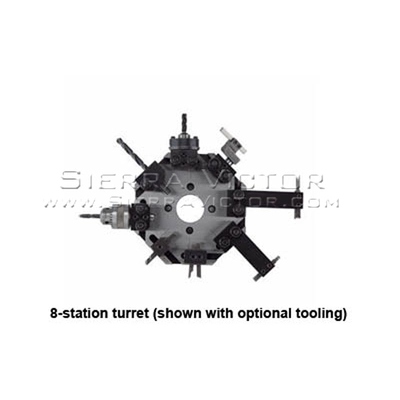

<li>8-station turret with indexing lever.</li>
</ul>
<p><strong> STANDARD ACCESSORIES: </strong>
</p>
<ul>
<li>LCD touchscreen with digital threading system</li>
<li>DRO functions integrated into the LCD touchscreen</li>
<li>Variable frequency drive</li>
<li>5C lever type collet closer</li>
<li>6" 3-jaw scroll chuck with back plate</li>
<li>8-station turret with indexing lever</li>
<li>8-position carriage stop</li>
<li>Halogen work light</li>
<li>Coolant system</li>
<li>Leveling screws and pads</li>
<li>Manual and parts list</li>
</ul>

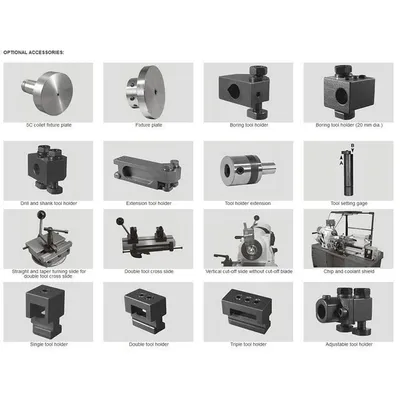

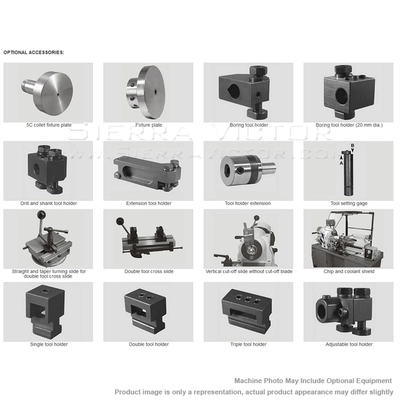

<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>5C collet fixture plate</li>
<li>Fixture plate</li>
<li>Boring tool holder</li>
<li>Boring tool holder (20 mm dia.)</li>
<li>Drill and shank tool holder</li>
<li>Extension tool holder</li>
<li>Tool holder extension</li>
<li>Tool setting gauge</li>
<li>Straight and taper turning slide for double tool cross slide</li>
<li>Double tool cross slide</li>
<li>Vertical cut-off slide without cut-off blade</li>
<li>Chip and coolant shield</li>
<li>Single tool holder</li>
<li>Double tool holder</li>
<li>Triple tool holder </li>
<li>Adjustable tool holder</li>

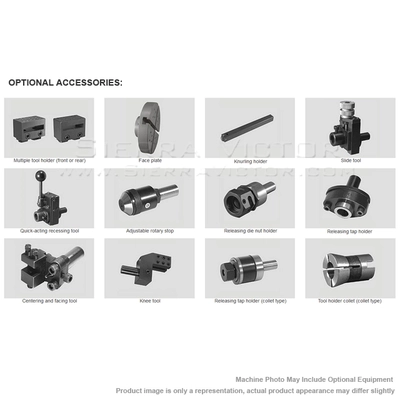

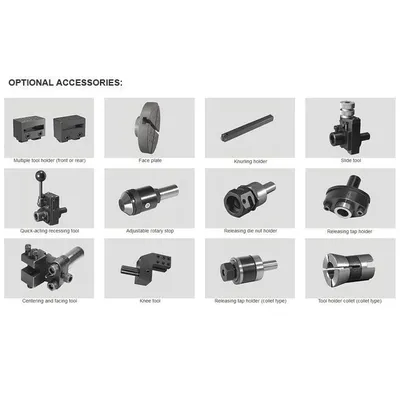

<li>Multiple tool holder (front or rear)</li>
<li>Face plate</li>
<li>Knurling holder</li>
<li>Slide tool</li>
<li>Quick-acting recessing tool</li>
<li>Adjustable rotary stop</li>
<li>Releasing die nut holder</li>
<li>Releasing tap holder</li>
<li>Centering and facing tool</li>
<li>Knee tool</li>
<li>Releasing tap holder (collet type)</li>
<li>Tool holder collet (collet type)</li>

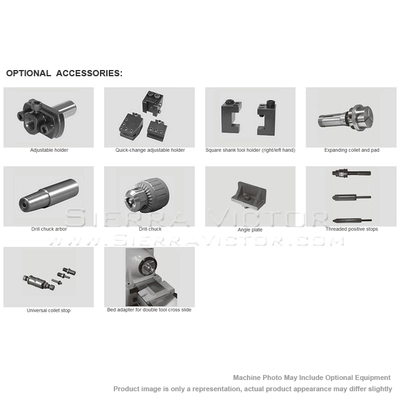

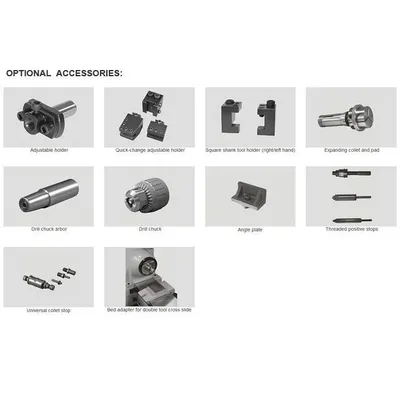

<li> Adjustable holder</li>
<li>Quick-change adjustable holder</li>
<li>Square shank tool holder (right/left hand)</li>
<li>Expanding collet and pad</li>
<li>Drill chuck arbor</li>
<li>Drill chuck</li>
<li>Angle plate</li>
<li>Threaded positive stops</li>
<li>Universal collet stop</li>
<li>Micro carriage stop with indicator</li>
<li>Bed adapter for double tool cross slide</li>
</ul>
