<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="Title_white_bold" rowspan="9" width="128" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>SPINDLE CAPACITY</strong></span>
</div>
</div>
</td>
<td class="TableText" bgcolor="#cccccc">
<div>With jaw chucks
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>6"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With expanding collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>3"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With round 5C collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1-1/16"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>With hexagon 5C collets
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>7/8"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>With square 5C collets
</div>
</td>
<td class="TableText" width="192" bgcolor="#ffffff">
<div>3/4"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>With step chucks
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1-1/16” to 6”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Spindle nose diameter
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>2.189”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Spindle nose I.D. / O.D.
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>5C / 4º taper
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Variable spindle speeds
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>0 ~ 4,000 rpm (5C Collet)
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>CAPACITY</strong></span>
</div>
</div>
</td>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Swing over bed
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>9"
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="2" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>TRAVELS</strong></span>
</div>
</div>
</td>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Compound slide X-axis travel
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>4-1/2"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Compound slide Z-axis travel
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>5-1/2"
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="2" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>TAILSTOCK</strong></span>
</div>
</div>
</td>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Tailstock spindle taper
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>M.T. #2
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>Tailstock spindle travel
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>3-3/4"
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="2" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>POWER</strong></span>
</div>
</div>
</td>
<td class="TableText" bgcolor="#cccccc">
<div>Inverter spindle motor
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>3 HP, 220V, 3PH
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Coolant pump:
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>1/8 HP
</div>
</td>
</tr>
<tr>
<td class="Title_white_bold" rowspan="2" bgcolor="#333333">
<div>
<div><span style="color: #ffffff;"><strong>WEIGHT & DIMENSIONS</strong></span>
</div>
</div>
</td>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>
<div>Machine dimensions (LxWxH):
</div>
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>73” x 35” x 75”
</div>
</td>
</tr>
<tr>
<td class="TableText" width="192" bgcolor="#cccccc">
<div>
<div>Gross weight:
</div>
</div>
</td>
<td class="TableText" bgcolor="#ffffff">
<div>
<div>1,364 lbs.
</div>
</div>
</td>
</tr>
</tbody>
</table>
<p>Design and Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
<br></p>
<ul>

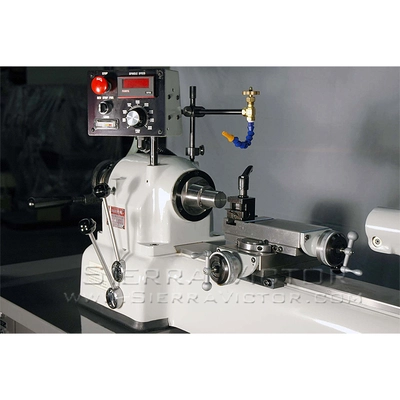

<li>Easy to read digital display on actual spindle rpm</li>
<li>Designed to machine precision small diameter parts</li>
<li>High performance machining capability of shaft, chucking, or collet held work piece</li>

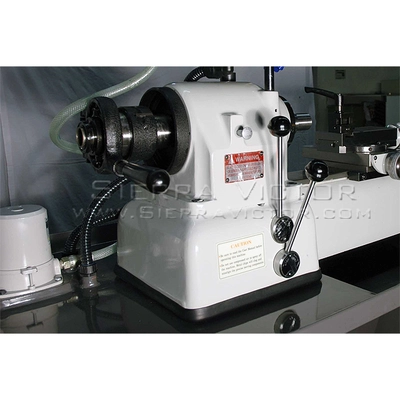

<li>Fully enclosed preloaded angular contact ball bearing headstock with splash shield for spindle</li>
<li>Hardened and ground alloy tool steel bedways.</li>
<li>Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings</li>

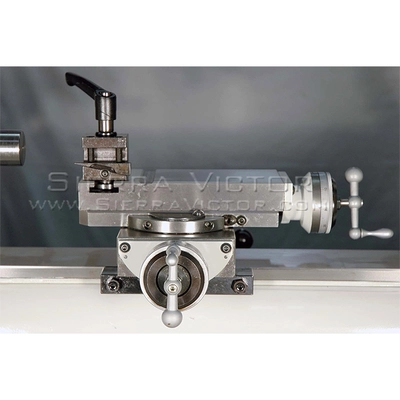

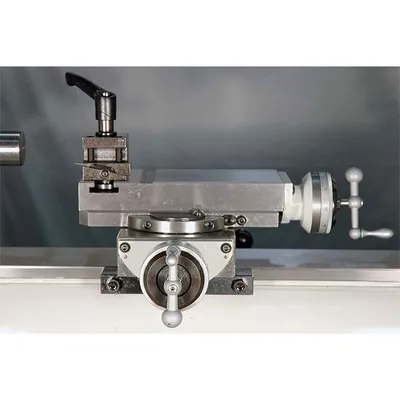

<li>Hardened and ground compound slide</li>

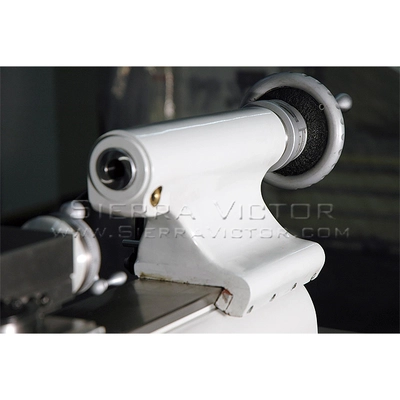

<li>Tailstock with graduated quill</li>
<li>5C lever type collet closer standard</li>
<li>3 HP frequency controlled motor</li>
<li>Yaskawa Inverter Drive</li>
</ul>
<p><strong> STANDARD ACCESSORIES: </strong>
</p>
<ul>
<li>Variable frequency drive</li>
<li>5C lever type collet closer</li>
<li>Compound slide</li>
<li>Tailstock</li>
<li>Test bar</li>
<li>Coolant system</li>
<li>Leveling screws and pads</li>
<li>Manual and parts list</li>
</ul>

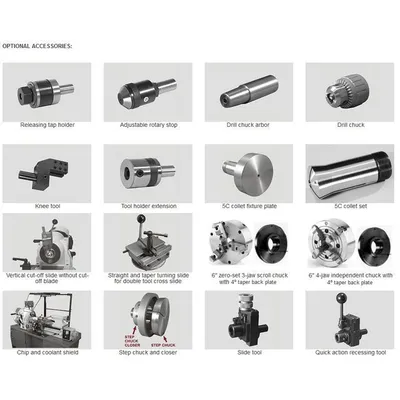

<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>

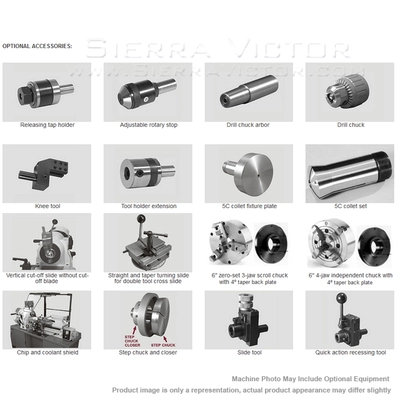

<li>Releasing tap holder</li>
<li>Adjustable rotary stop</li>
<li>Drill chuck</li>
<li>Drill chuck arbor</li>
<li>Knee tool</li>
<li>Tool holder extension </li>
<li>5C collet fixture plate</li>
<li>5C collet set </li>
<li>Vertical cut-off slide without cut-off blade</li>
<li>Straight and taper turning slide for double tool cross slide</li>
<li>6" zero-set 3-jaw scroll chuck with 4º taper back plate</li>
<li>6" 4-jaw independent chuck with 4º taper back plate</li>
<li>Chip and coolant shield</li>
<li>Step chuck and closer</li>
<li>Slide tool</li>
<li>Quick action recessing tool</li>

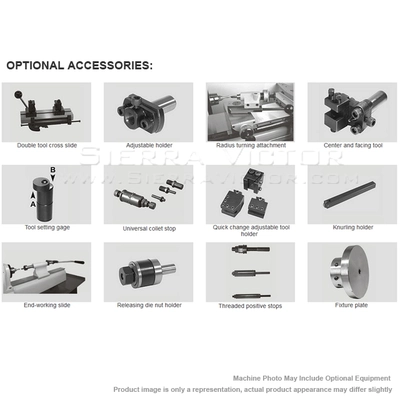

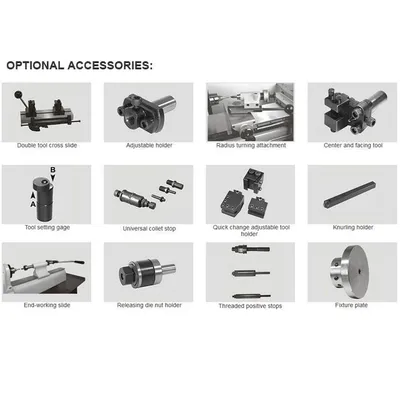

<li>Double tool cross slide</li>
<li>Adjustable holder </li>
<li>Radius turning attachment</li>
<li>Centering and facing tool </li>
<li>Tool setting gauge</li>
<li>Universal collet stop </li>
<li>Quick change adjustable holder</li>
<li>Knurling holder</li>
<li>End-working slide</li>
<li>Releasing die nut holder </li>
<li>Threaded positive stops </li>
<li>Fixture plate</li>
</ul>
<ul>
<li><strong>OPTIONAL ACCESSORIES SETUP:</strong></li>
<li>Expanding Collet</li>
<li>Vacuum Chuck</li>
<li>Hydraulic Chuck</li>
<li>Chuck Back Plate</li>
<li>6" 3-Jaw Chuck</li>
<li>Lathe Dog</li>
<li>Face Plate</li>
<li>Pneumatic Chuck</li>
<li>Precision Diaphragm Chucks</li>
<li>Step Chuck</li>
</ul>
