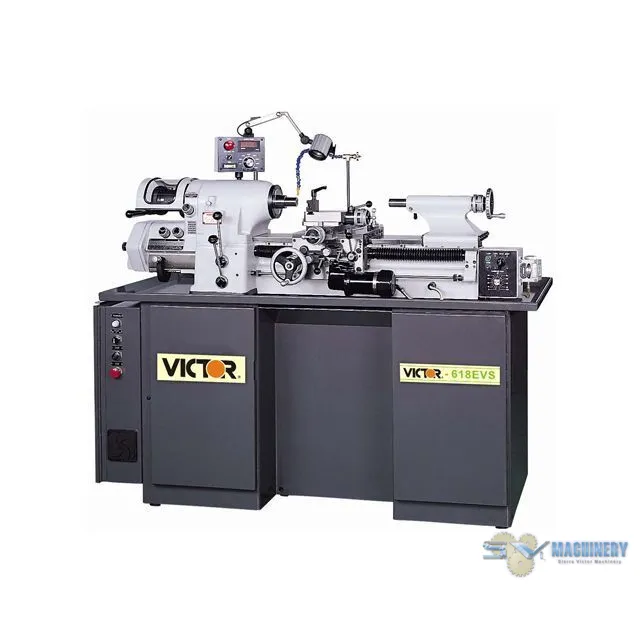

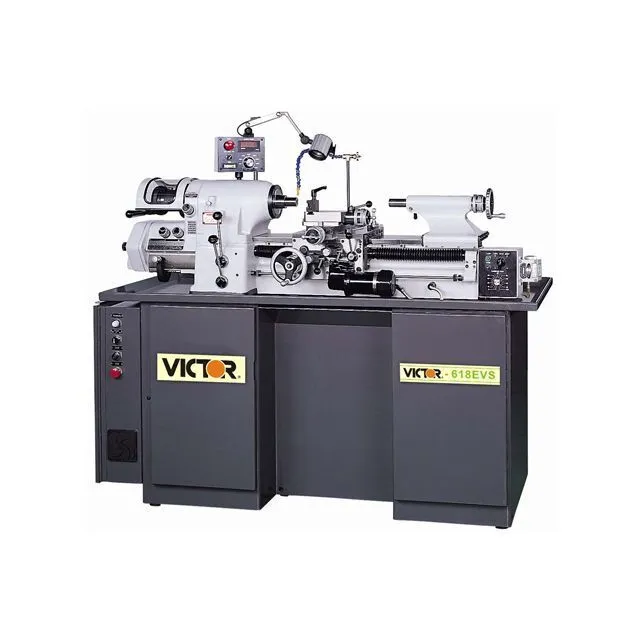

VICTOR 618EVS 6x18 in. Super Precision Electronic Variable High Speed Toolroom Lathe

Have one to sell?

386-304-3720

dan@sierravictor.com

Quantity

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (1)

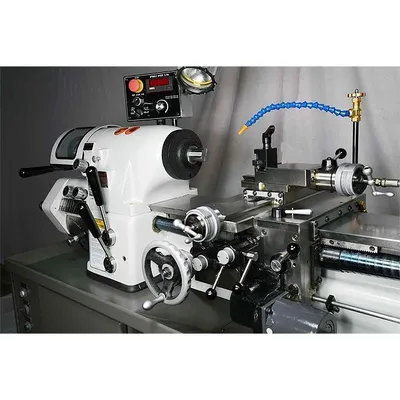

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (2)

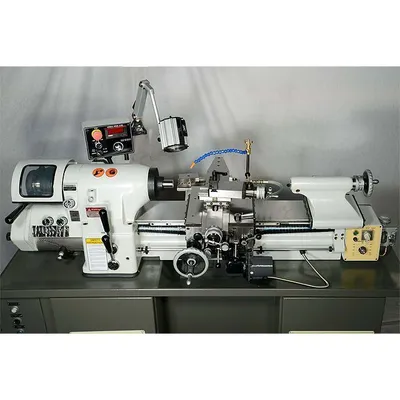

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (3)

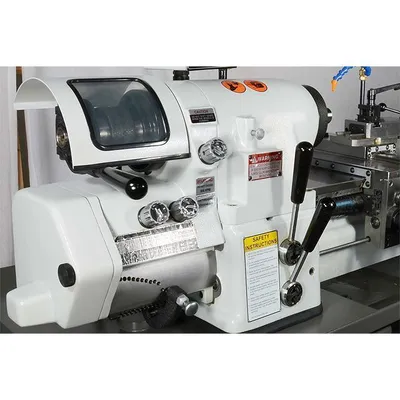

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (4)

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (5)

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries (6)

VICTOR 618EVS Tool Room Lathes | Sierra Victor Industries

New

Have one to sell?

Overview

Type:

Tool Room Lathes

Manufacturer:

VICTOR

Model:

618EVS

Stock #:

618EVS

Status:

For Sale

Description

VICTOR 618EVS High Speed Toolroom Lathe. Easy to read digital display on actual spindle rpm. High precision preloaded ball bearing 6-station turret with indexing lever. 3 HP frequency controlled motor. Yaskawa Inverter Drive.

<p><b>SPECIFICATIONS</b></p> <table cellspacing="0" cellpadding="0" border="1" width="520"> <tbody style="text-align: center;"> <tr> <td class="Title_white_bold" rowspan="10" width="90" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>SPINDLE CAPACITY</strong></span></div> </div> </td> <td class="TableText" bgcolor="#cccccc"><div align="center">With jaw chucks</div></td> <td bgcolor="#ffffff" class="TableText"><div align="center">6"</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">With expanding collets</div></td> <td bgcolor="#ffffff" class="TableText"><div align="center">3"</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">With round 5C collets</div></td> <td bgcolor="#ffffff" class="TableText"><div align="center">1-1/16"</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">With hexagon 5C collets</div></td> <td bgcolor="#ffffff" class="TableText"><div align="center">7/8"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">With square 5C collets</div></td> <td width="198" bgcolor="#ffffff" class="TableText"><div align="center">3/4"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">With step chucks</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">1-1/16” to 6”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"> <div align="center">Spindle nose diameter</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">2.189”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Spindle nose I.D. / O.D.</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">5C / 4º taper</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">Hole through spindle</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">1-1/4"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Variable spindle speeds</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">0 ~ 4,000 rpm (5C Collet) /<br> 0 ~ 3,000 rpm (6” 3-Jaw Chuck)</div></td> </tr> <tr> <td class="Title_white_bold" rowspan="4" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>CAPACITY</strong></span></div> </div> </td> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Swing over carriage</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">9"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Distance between center</div></td> <td class="TableText"><div align="center">18"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Swing over cross slide</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">6"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Swing over bed</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">11"</div></td> </tr> <tr> <td class="Title_white_bold" rowspan="8" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>THREADS, FEEDS</strong></span> & TRAVELS</div> </div> </td> <td class="TableText" bgcolor="#cccccc"><div align="center">Lead screw diameter</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">1” - 8 TPI</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">Carriage power feed range</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">5/16” ~ 7”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Cross slide power feed range</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">3/16” ~ 4”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Cross slide travel</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">6"</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Quick-action compound slide travel</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">0.1"</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">Compound slide travel</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">3"</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"> <div align="center">Inch threads</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">11 ~ 108 TPI (36 thread changes)</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Metric threads</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">0.275 ~ 2.7 mm <br> (36 thread changes)</div></td> </tr> <tr> <td class="Title_white_bold" rowspan="3" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>TAILSTOCK</strong></span></div> </div> </td> <td class="TableText" bgcolor="#cccccc"><div align="center">Tailstock spindle diameter</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">1.358”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Tailstock spindle taper</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">M.T. #2</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">Tailstock spindle travel</div></td> <td class="TableText"><div align="center">3-3/4"</div></td> </tr> <tr> <td class="Title_white_bold" rowspan="3" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>POWER</strong></span></div> </div> </td> <td class="TableText" bgcolor="#cccccc"><div align="center">Inverter spindle motor</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">3 HP, 220V, 3PH</div></td> </tr> <tr> <td class="TableText" bgcolor="#cccccc"><div align="center">Coolant pump:</div></td> <td class="TableText" bgcolor="#ffffff"><div align="center">1/8 HP</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"><div align="center">D.C. feed motor</div></td> <td class="TableText"><div align="center">110V, 70W</div></td> </tr> <tr> <td class="Title_white_bold" rowspan="2" bgcolor="#333333"> <div> <div align="center"><span style="color: #ffffff;"><strong>WEIGHT & DIMENSIONS</strong></span></div> </div> </td> <td class="TableText" width="224" bgcolor="#cccccc"> <div> <div align="center">Machine dimensions (LxWxH): </div> </div> </td> <td class="TableText" bgcolor="#ffffff"><div align="center">73” x 30” x 67”</div></td> </tr> <tr> <td class="TableText" width="224" bgcolor="#cccccc"> <div> <div align="center">Gross weight: </div> </div> </td> <td class="TableText" bgcolor="#ffffff"> <div> <div align="center">2,530 lbs. </div> </div> </td> </tr> </tbody> </table> <p><b><br></b></p> <p><b>FEATURES</b></p> <ul><li>Super-precision toolroom lathe equipped with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quiet. With fewer mechanical parts and exceptional built quality, Victor 618EVS toolroom lathe is easy to maintain, yet provides superior accuracy and performance.</li><li>Easy to read digital display on actual spindle rpm</li><li>Infinitely electronic variable spindle speeds from 0 ~ 4,000 rpm</li><li>Spindle runout within 50 millionths</li><li>Dual range inch/metric quick change gearbox</li><li>Electric variable feed control on carriage and cross slide</li><li>Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings</li><li>Hardened and ground alloy tool steel bedways</li><li>Turcite-B slideway bearing surface between carriage and bed</li><li>Automatic thread length control with fine adjustable stops to provide accurate threading</li><li>Quick-action tool post slide for threading</li><li>5C lever type collet closer standard</li><li>3 HP frequency controlled motor</li><li>Yaskawa Inverter Drive </li></ul> <p><strong> STANDARD ACCESSORIES: </strong></p> <ul><li>Variable frequency drive<br></li><li>5C lever type collet closer</li><li>Tool holder</li><li>Drive plate</li><li>Drive gear</li><li>Drive dog</li><li>Test bar</li><li>Headstock center</li><li>Tailstock</li><li>Coolant system</li><li>Leveling screws and pads</li><li>Manual and parts list</li></ul>

ImperialMetric

Spindle Capacity w/Jaw Chucks	6"	152.4 mm
Swing Over Bed	11"	279.4 mm
Distance Between Centers	18"	457.2 mm
Spindle Nose ID/OD	5C / 4º taper	5C / 4º taper
Spindle Nose Diameter	2.189"	55.601 mm
Motor	3 hp	2.2 kW
Phase	3	3
Voltage	220v	220v
Dimensions	73” x 30” x 67”	73” x 30” x 67”
Weight	2,530 lbs.	2,530 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

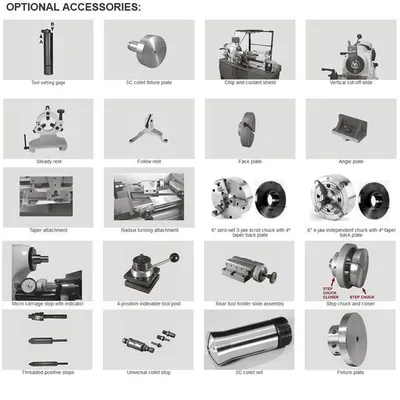

OPTIONAL ITEMS - CALL FOR PRICE:
Releasing tap holder
Adjustable rotary stop
Drill chuck
Drill chuck arbor
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Compound slide
Threaded positive stops
Slide tool
Quick action recessing tool
Fixture plate
Adjustable holder
Radius turning attachment
Centering and facing tool
Tool setting gauge
Universal collet stop
Quick change adjustable holder
Knurling holder
End-working slide
Releasing die nut holder

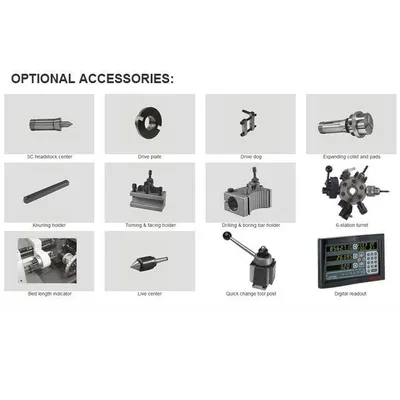

OPTIONAL ACCESSORIES SETUP:
Expanding Collet
Vacuum Chuck
Hydraulic Chuck
Chuck Back Plate
6" 3-Jaw Chuck
Lathe Dog
Face Plate
Pneumatic Chuck
Precision Diaphragm Chucks
Step Chucks
Straight and taper turning slide for double tool cross slide
Quick change adjustable holder
Quick action recessing tool
Knee Tool
Slide Tool
Boring Tool Holder
Centering and facing tool
Releasing tap holder
Tool Holder extension
Adjustable Rotary Stops
Adjustable Tool Holder
Releasing tap holder
