<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText" width="257">
<div align="center">72"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText">
<div align="center">5.85 rpm.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Upper Roll Dia.
</div>
</td>
<td class="TableText">
<div align="center">4.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Forming Dia
</div>
</td>
<td class="TableText">
<div align="center">7.125"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">13 ga. (.090")
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div align="center">112" x 30" x 50"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">4,950 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<ul>
<li>

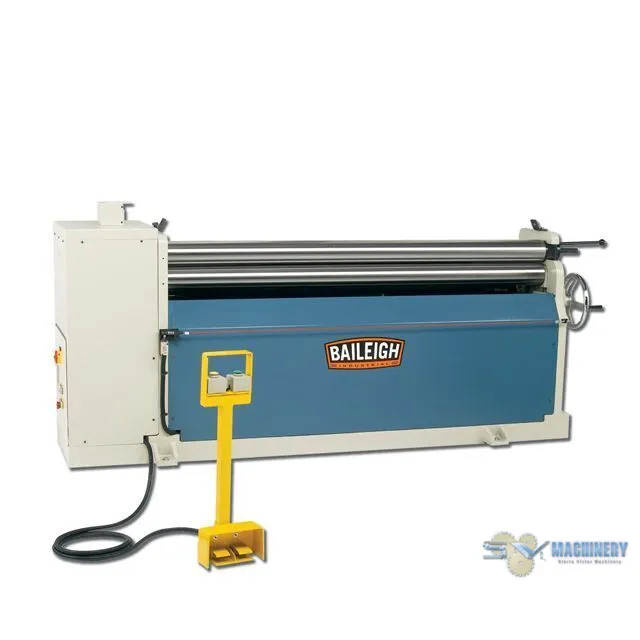

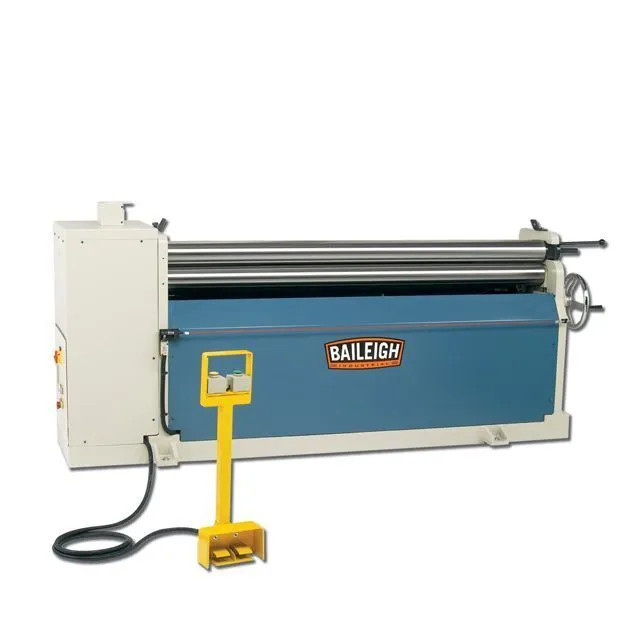

This <strong>hydraulic</strong> plate roller is just what every <strong>HVAC shop</strong> is looking for. All <strong>3 rolls are hydraulically driven</strong> to increase the efficiency of the finished product. Order today and experience the quality of this hydraulic plate rolling machine for sale.
</li>
<li><strong>6’</strong> working width.</li>
<li>Bending capacity of <strong>13 gauge</strong> mild steel across its full width.</li>
<li>Can roll to a <strong>minimum diameter of 7-⅛”</strong> at maximum capacity.</li>
<li><strong>2 hp</strong> motor runs on <strong>220 volt 3-phase</strong> power.</li>
<li><strong>Freestanding control pedestal</strong> makes it easy to manage bending functions; forward, reverse, up, and down.</li>
<li><strong>Independent control box</strong> on the machine allows you to raise or drop one side of the back roll for accurate coning.</li>
<li><strong>Digital readout</strong> lets you know exactly where the roll is at all times. </li>
<li>Constructed from <strong>plate steel</strong> to ensure accuracy of the rolls.</li>
<li><strong>Steel framework</strong> is fully integrated and welded to help prevent flexing at full capacity.</li>
<li>Dual emergency stop cables, located on both the back and front of the machine, help keep you safe.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Comes with<strong> lifetime technical support</strong> by phone from our team of experienced reps.</li>
</ul>
