<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>
<div align="center">Mild Steel Capacity
</div>
</div>
</td>
<td class="TableText" width="257">
<div>
<div align="center">5' 1" x 10 ga
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>
<div align="center">Roll Length and Diameter
</div>
</div>
</td>
<td class="TableText">
<div>
<div align="center">4-3/4"
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>
<div align="center">Motor
</div>
</div>
</td>
<td class="TableText">
<div>
<div align="center">2 HP, 3 PHASE, 220V/440V
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Pinch Adjustment
</div>
</td>
<td class="TableText">
<div align="center">Standard
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>
<div align="center">Net Weight
</div>
</div>
</td>
<td class="TableText">
<div>
<div align="center">4,500 lbs.
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>
<div align="center">Packing Size
</div>
</div>
</td>
<td class="TableText">
<div>
<div align="center">93" x 30" x 49"
</div>
</div>
</td>
</tr>
</tbody>
</table><br><p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Made in Taiwan</li>

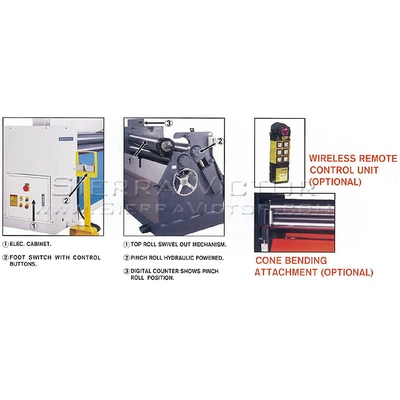

<li>All three rolls are driven by hydraulic power</li>
<li>Pinch roll cylinders are adjusted synchronously</li>
<li>Pinch roll is hydraulic powered up/down with digital counter for showing pinch roll position</li>
<li>All rolls are made of top-grade alloy steel hardened up to HRC55°</li>
<li>Rigid construction for precise and smooth operation, and long life time usage</li>
<li>The top roll can be swiveled out for easy removal of the finished workpiece</li>
<li>Removable foot control pedal for forward/reverse, fitted with a protective housing</li>
<li><strong>NOTE: Bigger Model R-0835H and R-0850H
are available on request
</strong>.</li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Cone bending attachment</li>
<li>Section bending attachment with profile roller</li>
</ul>
