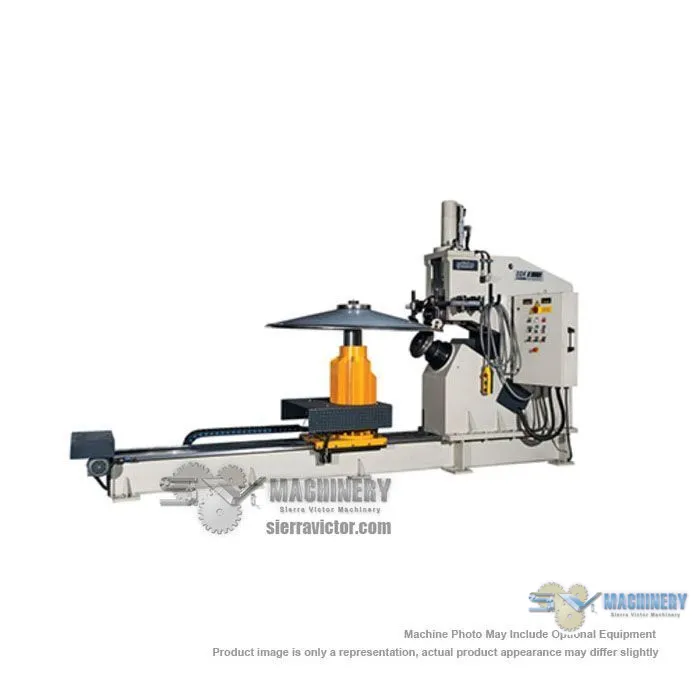

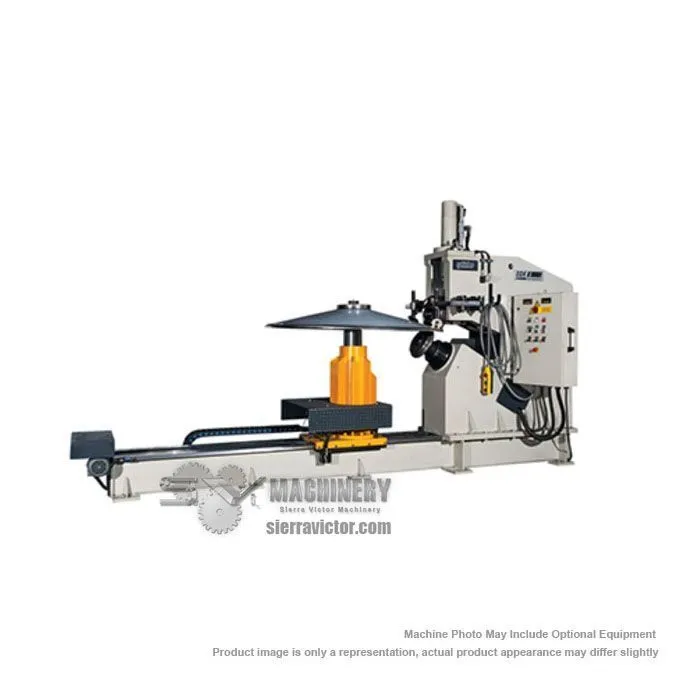

COLE-TUVE SDK-8 5/16 in. Combo Shear Flanger

COLE-TUVE SDK-8 5/16 in. Combo Shear Flanger

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Flangers
Manufacturer:
COLE TUVE
Model:
SDK-8
Condition:
Build To Order
Stock #:
SDK-8
Status:
For Sale

Description

One Set of Flanging Rolls and One Set of Cutting Blades Included with the Cole-Tube SDK-8 Combo Shear Flanger. Two-Rotation Speed Part Carrier 0,35-0,68 M/Sec.

Maximum Capacity - Mild Steel5/16 in.5/16 in.
Maximum Capacity - Stainless Steel0.1875 in
Max. Plate Diameter177 in.177 in.
Min. Plate Diameter2-3/8 in.2-3/8 in.
Max. Flanging Radius3.94 in.3.94 in.
Max. Flanging Length5.91" @ Radius of 100, 7.48" @ Radius of 255.91" @ Radius of 100, 7.48" @ Radius of 25
Motor14.5 HP14.5 HP
Dimensions182 x 50 x 107 in.182 x 50 x 107 in.
Weight9680 lbs.9680 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
Both Flat and Crowned Bottoms Flanging
Hydraulically Adjustable Bottom Height for Both Flat and Crowned Dish Flanging
Both Cutting and Flanging Operation on the Same Head
