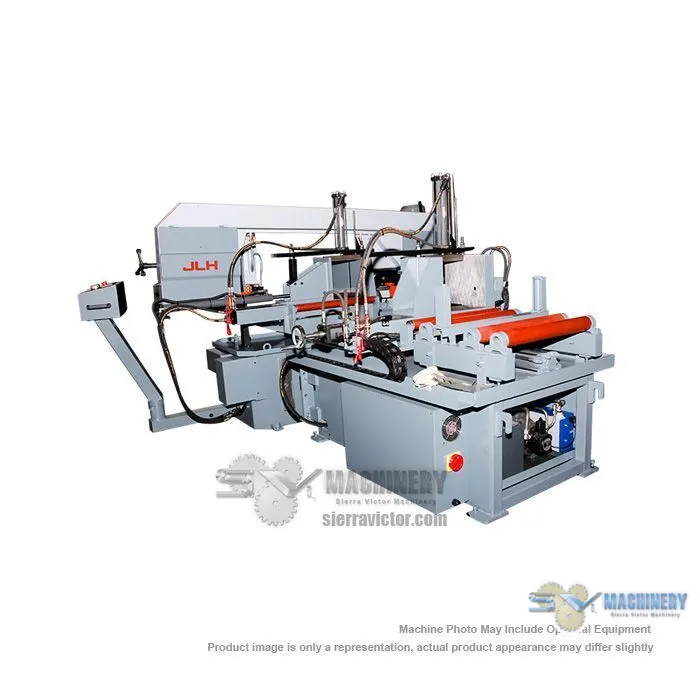

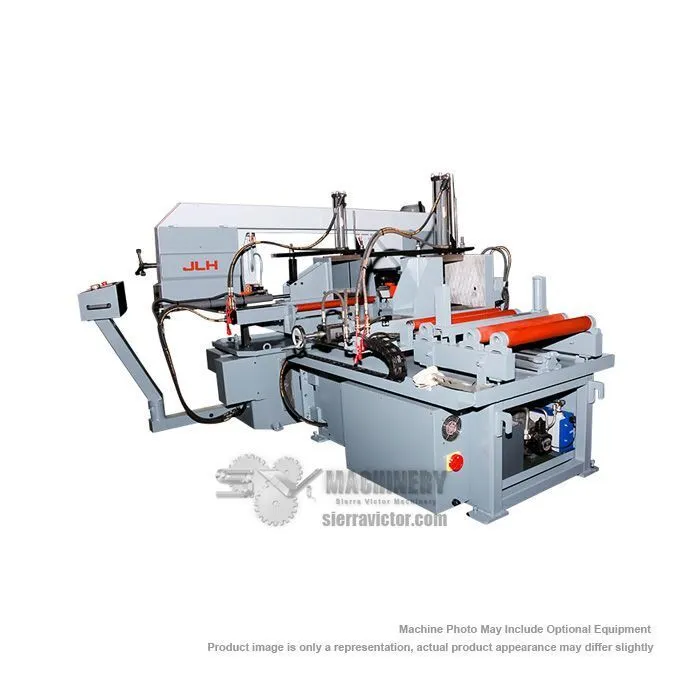

JLH S-16MNC 16 in. Automatic Mitering Bandsaw

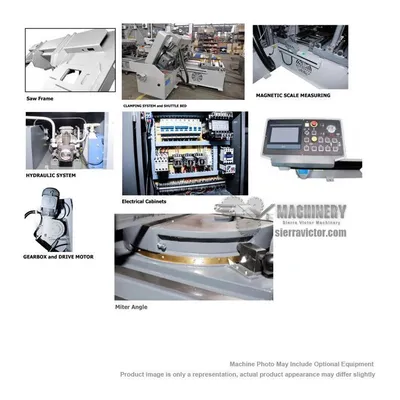

<!--StartFragment--> <ul><li><strong>Saw Frame:</strong>&nbsp;The saw is constructed buy laser cutting the various component parts to exacting tolerances. They are then welded in place by state-of-the-art robotic welders in our welding cells. Using robots allow for precise, strong and consistent welds. This is just another way JLH Saws provide the upmost in quality and precision.</li><li><strong>Manual Blade Tensioning:</strong>&nbsp;Consistent accurate tensioning is provided by a manual crank devise.</li><li><strong>CLAMPING SYSTEM and SHUTTLE BED:&nbsp;</strong>The shuttle vise sysem travels on two large ground and chromed columns. The main bed of the saw is a combination of rollers and plate type bed. Vises are double retracting with hardened wear plates installed. Overhead clamps are included in the productivity package. Upright rollers fill out this complete package.</li><li><strong>MAGNETIC SCALE MEASURING:</strong>&nbsp;Accurate and fast positioning are accomplished through a magnetic scale. One advantage to this type a measuring is that the scale can be placed out of the coolant area and completely protected.</li><li><strong>GEARBOX and DRIVE MOTOR:</strong>&nbsp;A highly efficient worm and gear type gearbox is used. The drive motor has a direct connection to the gear box eliminating the need for costly belt replacements. Drive motor is inverter controlled.</li><li><strong>Cooling System:</strong>&nbsp;A large coolant tank ensures excellent working conditions for the saw blade and work piece. Electrical coolant pump provides continuously circulation during the cutting process. The saw can also be equipped with a micro-spray coolant system (MQL). The MQL system has fully adjustable coolant time and volume on it for easy control by any operator. The chip conveyor is a hollow core style controlled by a hydraulic motor.</li><li><strong>HYDRAULIC SYSTEM:</strong>&nbsp;All JLH Saws use a modern and logical hydraulic system. Using the highest quality world class components for years of reliable operation. the solenoid valve base is made of aircraft grade aluminum for better heat dissipation and ease of maintenance.</li><li><strong>Electrical Cabinets:</strong>&nbsp;All electrical cabinets are built to international standards. They are well laid out, wired neatly and labeled for ease of repair.</li><li><strong>Miter Angle:</strong>&nbsp;Angle is manually selected. Saw frame is swiveled to desired angle on easy to read scale.</li><li><strong>Machine Control:</strong>&nbsp;JLH Saws Control provides latest in PLC based control technology. JLH Saws Control controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for kerf loss after data input and requires no manual calculation of number of times to index. The control also automatically shutdowns the machine, blade motor, and hydraulics, once the programmed number of cuts or out of stock situation has been achieved. The system includes an error feedback function enabling rapid troubleshooting through an error code to be displayed in the event of a malfunction.</li><li>JLH Saws Control Features include:<ul><li>10” Touch screen</li><li>PLC controller</li><li>100 individual jobs can be programmed and stored</li><li>Stored program(s) may be easily recalled and executed at will.</li><li>Blade Speed Display</li><li>Automatic Kerf Loss Compensation & Automatic Multiple Indexing up to 999”</li><li>Error Code Display Provides simplified self-diagnostics.</li></ul></li><li>The operator’s control station is ergonomically located on the front side of the saw. It is convenient and user friendly. All operator controls are positioned on the control station and clearly labeled for ease of operation.</li><li><strong>TECHNICAL FEATURES:</strong><ul><li>Fully automatic hinge type bandsaw</li><li>Magnetic scale measurement system</li><li>10” color touch screen HMI</li><li>PLC controlled colour type touch screen display</li><li>Heavy duty direct drive gearbox</li><li>100 programs to save the all parameters for cutting the same material again</li><li>± (0.005”) cutting length precision for straight cut</li><li>Coolant tank with electric pump for blade lubrication and cooling</li><li>Micro spray lubrication system available for saw blade</li></ul></li></ul> <!--EndFragment-->
