<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Capacity (Mild Steel)
</div>
</td>
<td width="257" class="TableText">
<div align="center">16 ga
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Aluminum Capacity
</div>
</td>
<td class="TableText">
<div align="center">14 ga.
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Throat Depth
</div>
</td>
<td width="257" class="TableText">
<div align="center">40"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Lower Die Radius
</div>
</td>
<td class="TableText">
<div align="center">1.85", 2.165", 4.85,40"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Power
</div>
</td>
<td class="TableText">
<div align="center">Manual
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Top Wheel Dimensions
</div>
</td>
<td class="TableText">
<div align="center">6” x 2-1/4”
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions(L/W/H)
</div>
</td>
<td width="257" class="TableText">
<div align="center">
<div>72" x 36" x 15"
</div>
</div>
</td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td width="257" class="TableText">
<div align="center">388 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>Not all English wheels are the same. A <strong>37-3/4” throat depth</strong> and <strong>box tubing frame</strong> make our EW-40 stand out from competing models. We include <strong>9 bottom anvils</strong> and 3 upper wheels.</li>
<li><strong>16 gauge</strong> mild steel capacity.</li>
<li><strong>37-3/4” throat depth</strong> can handle almost any project.</li>

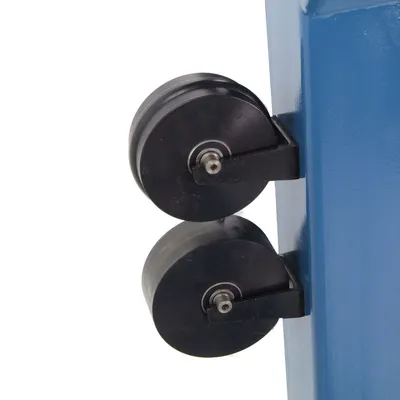

<li>Comes with <strong>3 upper wheels (6” x 2.75”)</strong>.</li>
<li><strong>9 hardened bottom anvils</strong>:
<ul>
<li>1/8”, 1/2”, and 3/4” edge radii.</li>
<li>6” crown radius.</li>
<li>2 flat rolls.</li>
<li>5/16” x 1/4” step roll.</li>
<li>1-1/2” and 5/8” round bead rolls.</li>
</ul>
</li>
<li>You can <strong>roll beads</strong> as well as form metal on this English wheel.</li>
<li>All upper wheels and lower anvils use <strong>sealed bearings</strong>.</li>
<li><strong>Swivel head</strong> lets you either push material directly into the throat or at a 90° to it.</li>

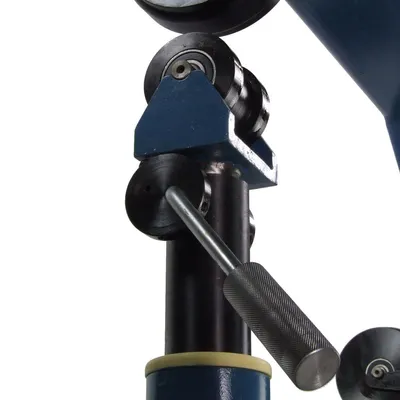

<li><strong>Quick-release cam</strong> allows you to release the panel without changing tension.</li>

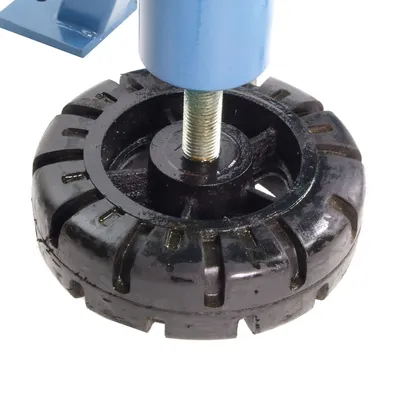

<li>Adjust the tension via the <strong>kick tensioner</strong>, made of real rubber.</li>
<li>Fully welded <strong>5” x 5” x .250” box tubing framework</strong> prevents flex when rolling at full capacity.</li>

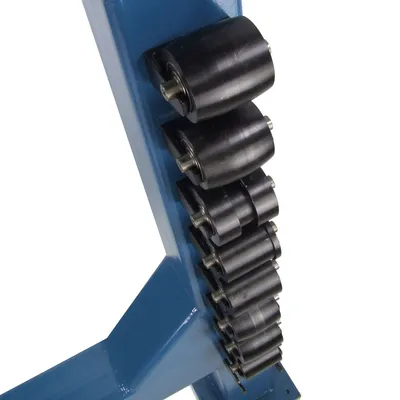

<li><strong>Tooling holder</strong> on the side of the machine gives you a convenient place to put your rolls.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>We offer <strong>lifetime technical support</strong> by phone from a team of service reps with hands-on machine experience.</li>
<li><strong>Recommended for:</strong> Restoration or bodywork on autos, planes, cycles, and much more. </li>
</ul>
