<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr class="Title_white_bold">
<td class="Title_white_bold" width="270" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>MODEL</strong></span>
</div>
</td>
<td class="Title_white_bold" width="244" valign="middle" bgcolor="#333333">
<div><span style="color: #ffffff;"><strong>52H</strong></span>
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Operation
</div>
</td>
<td class="TableText" valign="middle">
<div>Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, Mild Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>16 gauge/1.6mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum shearing capacity, <br>Stainless Steel
</div>
</td>
<td class="TableText" valign="middle">
<div>20 gauge/1.0mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum cutting length
</div>
</td>
<td class="TableText" valign="middle">
<div>52-1/4" / 1,327mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Back gauge range
</div>
</td>
<td class="TableText" valign="middle">
<div>30" / 762mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Front gauge range
</div>
</td>
<td class="TableText" valign="middle">
<div>37" / 940mm
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Floor space, gauges in position
</div>
</td>
<td class="TableText" valign="middle">
<div>60" x 80"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Dimensions, Less gauges, LxWxH
</div>
</td>
<td class="TableText" valign="middle">
<div>61" x 25" x 42"
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Strokes per minute, full length
</div>
</td>
<td class="TableText" valign="middle">
<div>45
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Maximum Operating Pressure
</div>
</td>
<td class="TableText" valign="middle">
<div>1,450 psi
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Air Consumption per Stroke
</div>
</td>
<td class="TableText" valign="middle">
<div>N/A
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Motor: 230 or 460V, 3ph, 60Hz, 1,745 RPM, <br>230V/1ph optional
(specify)
</div>
</td>
<td class="TableText" valign="middle">
<div>5 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" valign="middle" bgcolor="#cccccc">
<div>Shipping Weight:
</div>
</td>
<td class="TableText" valign="middle">
<div>1,300 lbs. / 590kg
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Limited
<br></p>
<p></p>

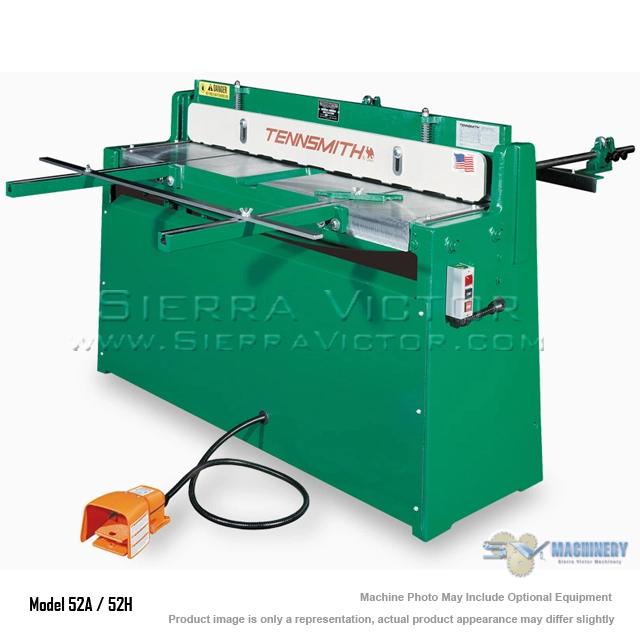

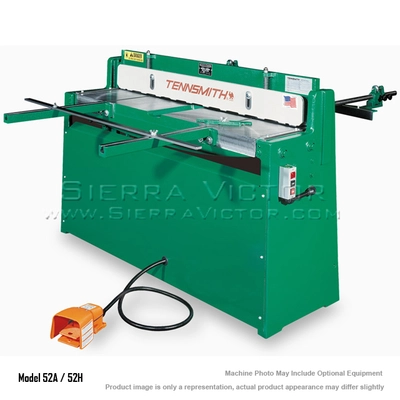

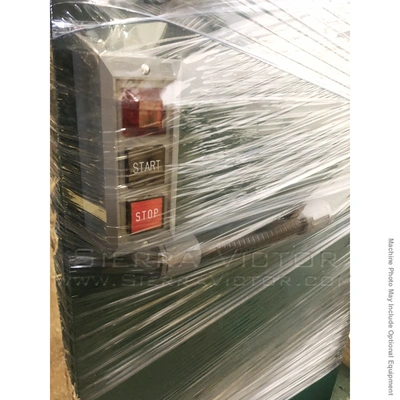

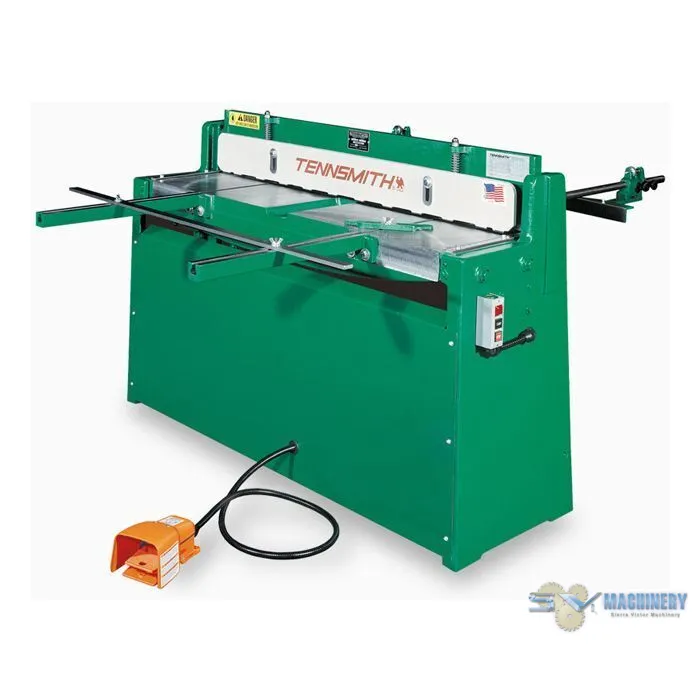

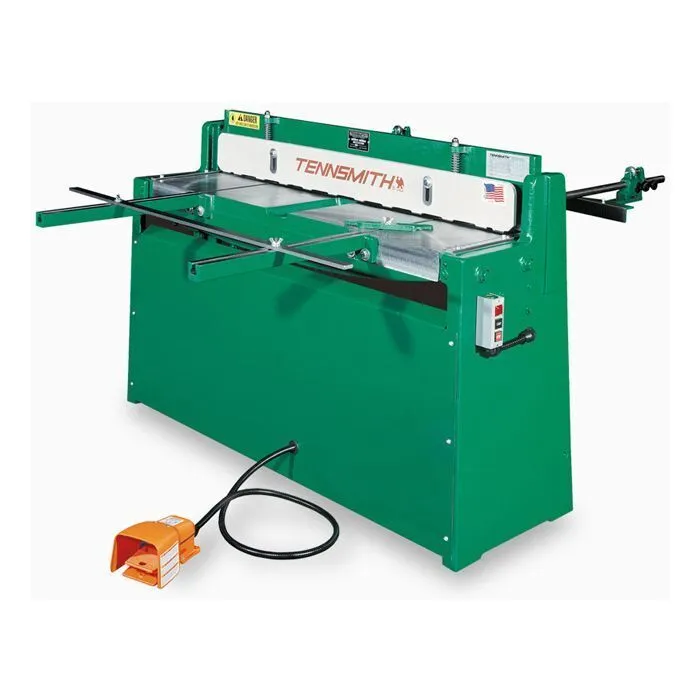

<ul><li><strong>MADE IN USA</strong></li><li>TENNSMITH'S power shears combine all of the features of our foot shears with the advantage and convenience of air or hydraulic operation. TENNSMITH power shears are a productive addition to any shop. The air shears utilize heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials.</li><li>A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.</li><li>The Model 52H cycle at 45 strokes a minute, thanks to its first class hydraulic system. The hydraulic unit is of a low maintenance design featuring a solenoid actuated valve, 3-HP electric motor, self-contained pump in tank with pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter.</li><li>Other electrical safety features include a low voltage on/off switch; low voltage, shrouded, electric foot switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. Models 36A and 52A are ideal ways to enhance shearing productivity with minimal investment.</li></ul>
<p><strong> STANDARD EQUIPMENT:</strong></p>
<ul><li>High Carbon/High-Chromium (HCHC) Blades</li><li>Back gauge</li><li>Front extension arms with stop</li><li>Bevel gauge</li><li>Graduated side gauges</li><li>Foot control</li><li>Neoprene padded hold down feet</li></ul>
