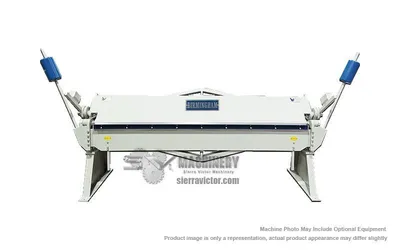

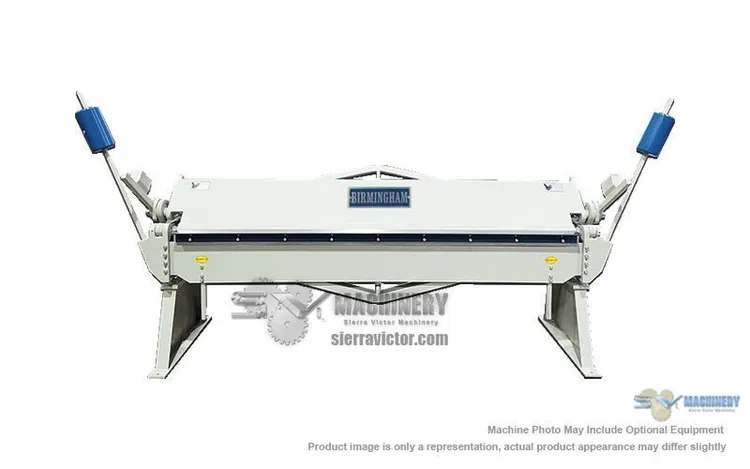

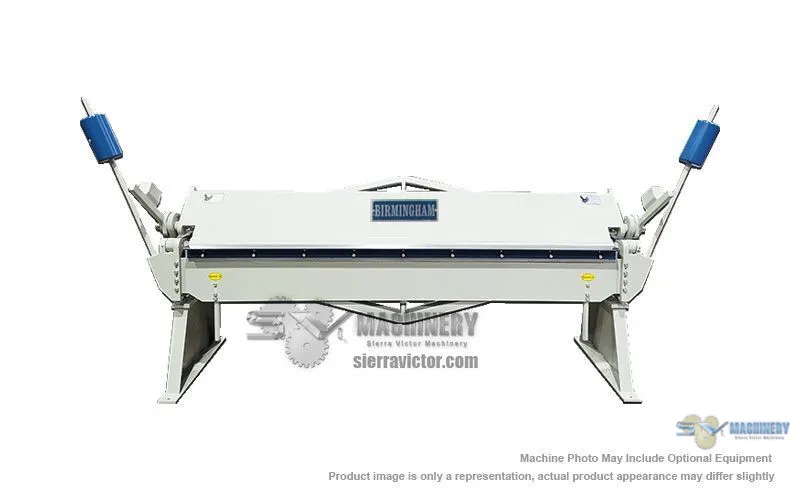

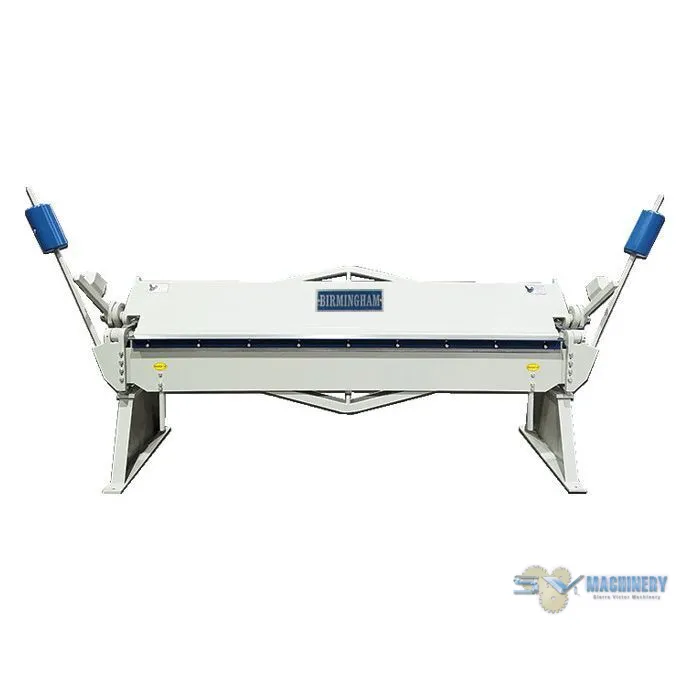

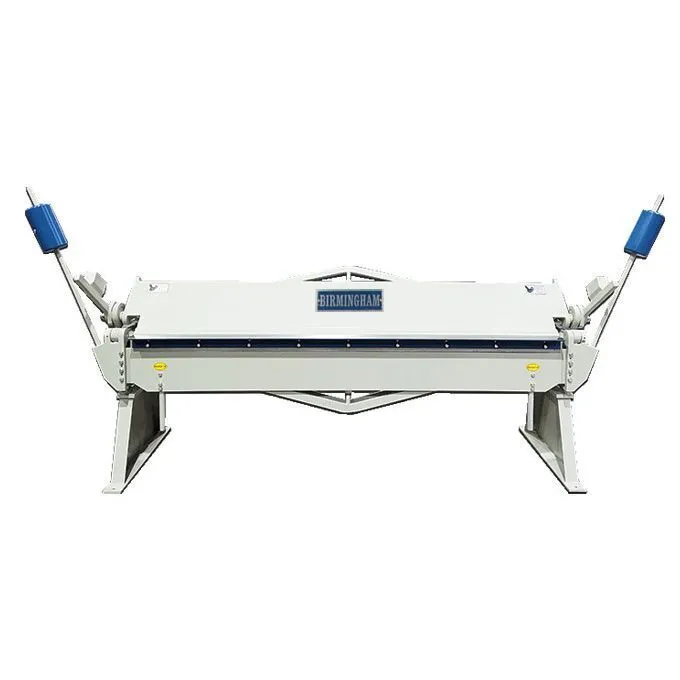

BIRMINGHAM V-412 4ft x 12 ga. Manual Straight Hand Brake

BIRMINGHAM V-412 4ft x 12 ga. Manual Straight Hand Brake

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Straight Brakes
Manufacturer:
BIRMINGHAM
Model:
V-412
Condition:
Build To Order
Stock #:
V-412
Status:
For Sale

Description

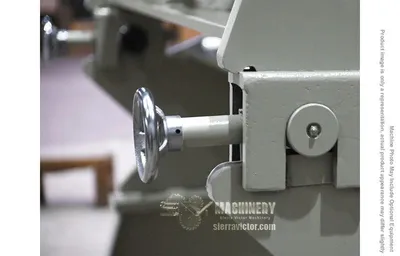

Floor type model with Bending angle adjustable mechanism and angle range from 0-135 degrees. This machine was made in Taiwan.

Capacity (ga) Mild Steel12 gauge12 gauge
Capacity (ga) Stainless16 gauge16 gauge
Bending Length48.5"1,231.9 mm
Bending Angle0-135°0-135°
Beam Adjustment1"25.4 mm
Min Reverse Bend0.3125"7.9375 mm
Shipping Dimensions L/W/H71 x 34 x 40 in.71 x 34 x 40 in.
Shipping Weight1,500 lb680.4 kg
Dimensions71 x 34 x 40 in.71 x 34 x 40 in.
Weight1500 lbs.1500 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
24" manual back gauge with slide and lock for all manual brakes
32" single axis, NC programmable power brake gauge with Germany ELGO# P8511
