<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. Shear Length
</div>
</td>
<td class="TableText" width="257">
<div>52"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Max Material Thickness - Mid Steel*
</div>
</td>
<td class="TableText">
<div>14 ga. / .075”
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Max Material Thickness - Stainless Steel**
</div>
</td>
<td class="TableText">
<div>18 ga. / .048”
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Strokes / Minute
</div>
</td>
<td class="TableText">
<div>35
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Front Gauge Length
</div>
</td>
<td class="TableText">
<div>24"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Back Gauge Length
</div>
</td>
<td class="TableText">
<div>24"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Blade Angle
</div>
</td>
<td class="TableText">
<div>1°
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText">
<div>3 hp
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Power Requirement
</div>
</td>
<td class="TableText">
<div>220 volt / 1 phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Dimensions (L/W/H)
</div>
</td>
<td class="TableText">
<div>75" x 33" x 55"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Weight
</div>
</td>
<td class="TableText">
<div>1,880 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>*Mild Steel T.S. 64,000 PSI
</p>
<p>**Stainless Steel T.S. 100,000 PSI
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>
<li>

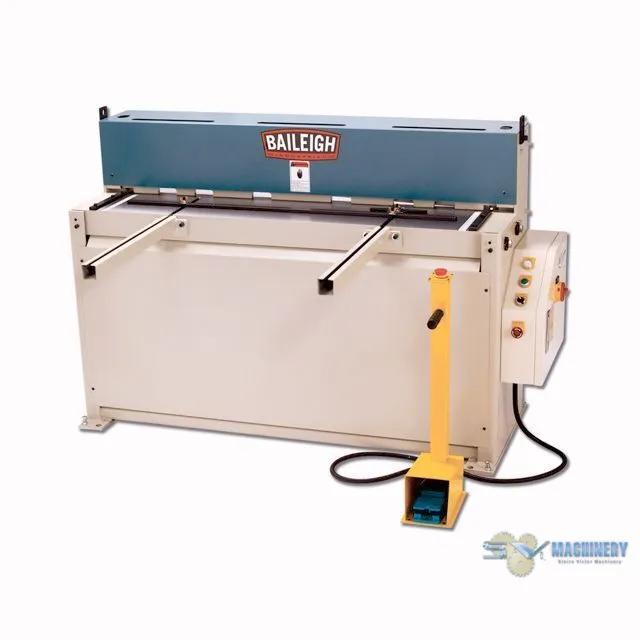

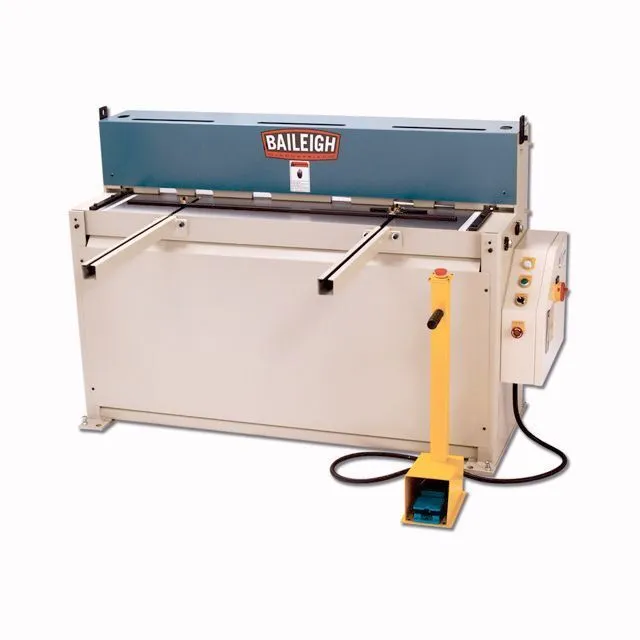

A <strong>dependable</strong> tool for a great price, this hydraulic shear draws strength from a <strong>welded steel plate frame</strong>. Auto mode with <strong>35 strokes per minute</strong> makes the SH-5214 efficient for production.
</li>
<li><strong>52”</strong> length.</li>
<li><strong>14 gauge</strong> mild steel maximum capacity.</li>
<li>Minimum capacity of 24 gauge mild steel.</li>
<li>Runs on <strong>220-volt single-phase</strong> power.</li>
<li>Adjustable <strong>24” backgauge</strong> ensures precise repeatability.</li>
<li><strong>Front arm extensions</strong> and table guides keep the material square to the blade.</li>
<li><strong>3 modes</strong> on the operator console:
<ul>
<li><strong>Inch mode:</strong> Jog the control and ease the blade down to the material.</li>
<li><strong>Single mode:</strong> Make one cut cycle per foot pedal push.</li>
<li><strong>Auto mode:</strong> Continue cycling as you hold the pedal down.</li>
</ul>
</li>
<li>Comes standard with <strong>high carbon chromium blades</strong>.</li>
<li>Blades have <strong>4 shearing edges</strong>, so you can turn them when an edge gets dull to extend blade life and save money. </li>
<li><strong>Hydraulic hold-downs</strong> clamp the sheet solidly to the table, eliminating material lifting and improving blade life.</li>
<li><strong>Rigid, fully welded steel plate construction</strong> helps prevent flex and gives you many years of accuracy.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock replacement parts, including blades, in house for fast shipping. </li>
<li>Includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalworking experience. </li>
</ul>
