<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Shear Length
</div>
</td>
<td class="TableText" width="257" align="center">
<div align="center">52"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Thickness (SS)
</div>
</td>
<td class="TableText" align="center">
<div align="center">10 ga. (13 ga.)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Material Thickness
</div>
</td>
<td class="TableText" align="center">
<div align="center">24 ga.
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade Rake Angle
</div>
</td>
<td class="TableText" align="center">
<div align="center">.5 to 2.0 degrees
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Back Gauge Length
</div>
</td>
<td class="TableText" align="center">
<div align="center">23.62"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Strokes Per Minute
</div>
</td>
<td class="TableText" align="center">
<div align="center">35 – 47
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Front Gauge Length
</div>
</td>
<td class="TableText" align="center">
<div align="center">39.37"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade Angle
</div>
</td>
<td class="TableText" align="center">
<div align="center">1/2° – 2° Adjustable
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade Gap Adjustment
</div>
</td>
<td class="TableText" align="center">
<div align="center">Manual, Lever Acuated
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText" align="center">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText" align="center">
<div align="center">7.5 hp
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L/W/H)
</div>
</td>
<td class="TableText" align="center">
<div align="center">88" x 45" x 66"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText" align="center">
<div align="center">4,200 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

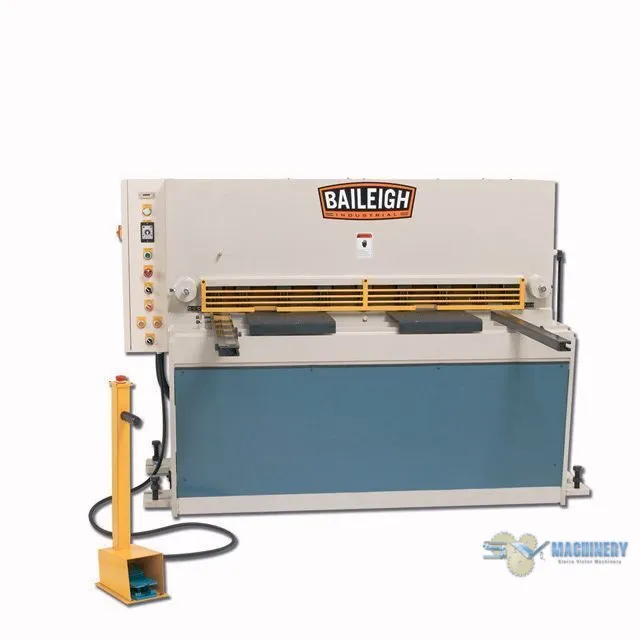

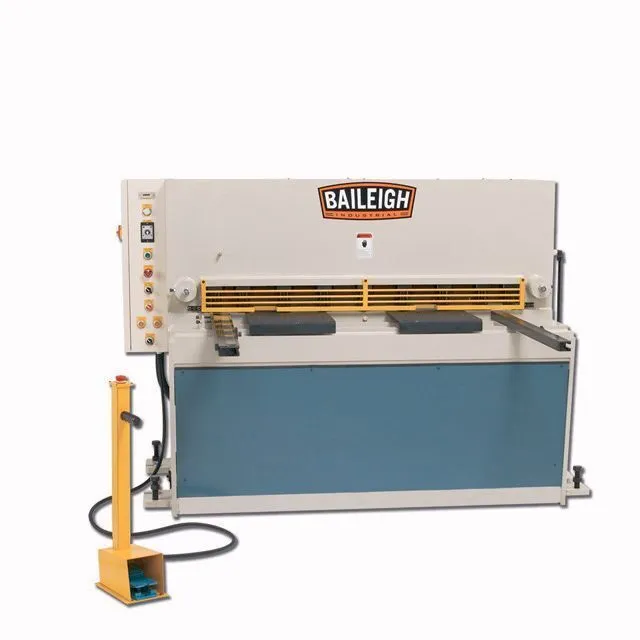

<li> With its <strong>welded steel frame</strong>, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The <strong>adjustable blade gap and rake angle</strong> ensure quality cuts. <br>
</li>
<li><strong>52”</strong> length.</li>
<li><strong>10 gauge</strong> mild steel maximum capacity.</li>
<li>Minimum capacity of 24 gauge mild steel.</li>
<li>7.5 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>
<li><strong>Industrial-grade hydraulic system</strong> is located in the front for easy fluid changes.</li>
<li>35 to 47 strokes per minute for speedy production.</li>
<li>Shearing carriage <strong>rides on hardened ways</strong> and uses heavy-duty bearings to reduce friction.</li>
<li>Manually adjustable <strong>23.62” backgauge</strong> ensures precise repeatability.</li>
<li><strong>Heavy duty table with roller bars</strong> slides material into the machine more easily.</li>
<li><strong>Side gauges</strong> keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.</li>
<li>Switch between <strong>3 modes</strong> as needed:
<ul>
<li>Jog mode: Inching the blade down to the material.</li>
<li>Single cycle mode: One cut for one pedal push.</li>
<li>Automatic cycling mode: Continuously cutting for production runs.</li>
</ul>
</li>
<li><strong>Adjustable rake angle dial</strong> makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.</li>
<li><strong>Convenient blade gap adjustment</strong> lets you eliminate folding and twisting. </li>
<li>Comes standard with <strong>high carbon chromium blades</strong>.</li>
<li>2-sided upper blades and 4-sided lower blades can be <strong>flipped and resharpened</strong> as needed, saving money.</li>
<li><strong>Hydraulic hold-downs</strong> clamp the sheet solidly to the table, eliminating material lifting and improving blade life.</li>
<li><strong>Rigid, fully welded steel plate construction</strong> helps prevent flex and gives you many years of accuracy.</li>
<li><strong>Shadow line</strong> creates a reference line on the material so you know exactly where the cut will be.</li>
<li>The SH-5210-HD plate shear is covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock replacement parts, including blades, in house for fast shipping.</li>
<li>Includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalworking experience.</li>
<li>Also available in a more economical single-phase version, the SH-5210 sheet metal shear is designed for lighter production.</li>
<li>You can add an <strong>optional sheet support system</strong> to this model. Please call us for details. </li>
