<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody>
<tr>
<td width="257" bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Max. Shear Length
</div>
</td>
<td width="257" align="center" class="TableText">
<div align="center">52”
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Max Material Thickness - Mid Steel *
</div>
</td>
<td align="center" class="TableText">
<div align="center">10 ga / .135”
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Max Material Thickness - Stainless Steel **
</div>
</td>
<td align="center" class="TableText">
<div align="center">13 ga / .090”
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Strokes / Minute
</div>
</td>
<td align="center" class="TableText">
<div align="center">28
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Front Gauge Length
</div>
</td>
<td align="center" class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Back Gauge Length
</div>
</td>
<td align="center" class="TableText">
<div align="center">24"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Blade Angle
</div>
</td>
<td class="TableText">
<div align="center">1°
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Motor
</div>
</td>
<td align="center" class="TableText">
<div align="center">5 hp
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Power Requirement
</div>
</td>
<td align="center" class="TableText">
<div align="center">220 volt / 1 phase
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Shipping Dimensions (L/W/H)
</div>
</td>
<td align="center" class="TableText">
<div align="center">75" x 35" x 59"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" align="left" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td align="center" class="TableText">
<div align="center">3,150 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>*Mild Steel T.S. 64,000 PSI
</p>
<p>**Stainless Steel T.S. 100,000 PSI
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

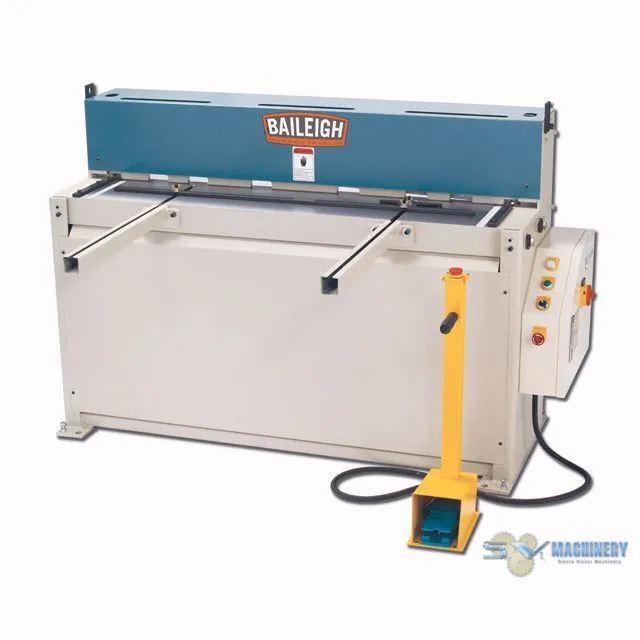

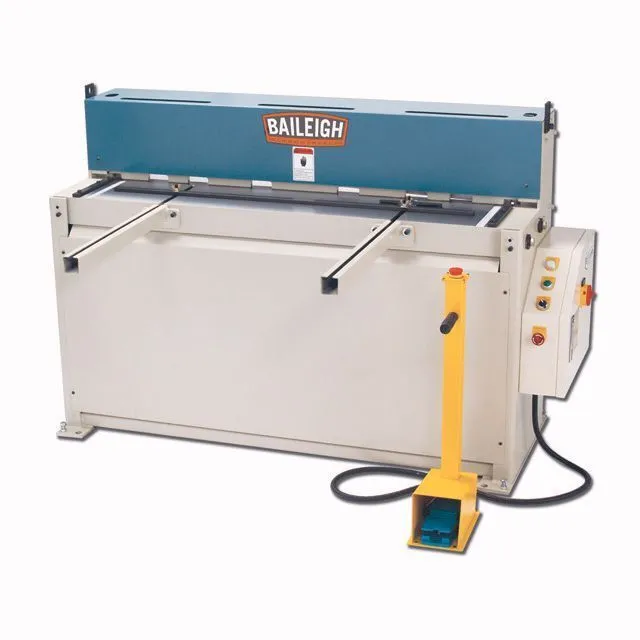

<li> This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its <strong>welded steel frame</strong>, the SH-5210 sheet metal shear makes perfect cuts every time. <br>
</li>
<li><strong>52”</strong> length.</li>
<li><strong>10 gauge</strong> mild steel maximum capacity.</li>
<li>Minimum capacity of 24 gauge mild steel.</li>
<li>5 hp motor runs on <strong>220-volt single-phase</strong> power.</li>
<li>Up to <strong>28 strokes</strong> per minute.</li>
<li>Adjustable <strong>24” backgauge</strong> ensures precise repeatability.</li>
<li><strong>Front support arms</strong> and table guides keep the material square to the blade.</li>
<li><strong>3 modes</strong> on the operator console:
<ul>
<li><strong>Inch mode:</strong> Jog the control and ease the blade down to the material.</li>
<li><strong>Single mode:</strong> Make one cut cycle per foot pedal push.</li>
<li><strong>Auto mode:</strong> Continue cycling as you hold the pedal down.</li>
</ul>
</li>
<li>This hydraulic shear comes standard with <strong>high carbon chromium blades</strong>.</li>
<li>Blades have <strong>4 shearing edges</strong>, so you can turn them when an edge gets dull to extend blade life and save money.</li>
<li><strong>Hydraulic hold-downs</strong> clamp the sheet solidly to the table, eliminating material lifting and improving blade life.</li>
<li><strong>Rigid, fully welded steel plate construction</strong> helps prevent flex and gives you many years of accuracy.</li>
<li>This 10 gauge sheet metal shear is covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock replacement parts, including blades, in house for fast shipping. </li>
<li>Includes <strong>lifetime technical support</strong> by phone from a team of reps with hands-on metalworking experience.</li>
</ul>
