<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Back Gauge Length
</div>
</td>
<td class="TableText" width="319">
<div align="center">23.62"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Shear Length
</div>
</td>
<td class="TableText" width="319">
<div align="center">52"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText" width="319">
<div align="center">15 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Thickness (SS)
</div>
</td>
<td class="TableText" width="319">
<div align="center">1/4" (7 ga.)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Strokes Per Minute
</div>
</td>
<td class="TableText" width="319">
<div align="center">16 – 24
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Front Gauge Length
</div>
</td>
<td class="TableText" width="319">
<div align="center">39.37"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Blade Angle
</div>
</td>
<td class="TableText" width="319">
<div align="center">1/2° – 2° Adjustable
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Blade Gap Adjustment
</div>
</td>
<td class="TableText">
<div align="center">Manual, Lever Acuated
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText" width="319">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Minimum Material Thickness
</div>
</td>
<td class="TableText" width="319">
<div align="center">24 ga
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Shipping Dimensions
</div>
</td>
<td class="TableText" width="319">
<div align="center">91" x 54" x 65"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="319" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText" width="319">
<div align="center">5,720 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>*Mild Steel T.S. 64,000 PSI
</p>
<p>**Stainless Steel T.S. 100,000 PSI
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

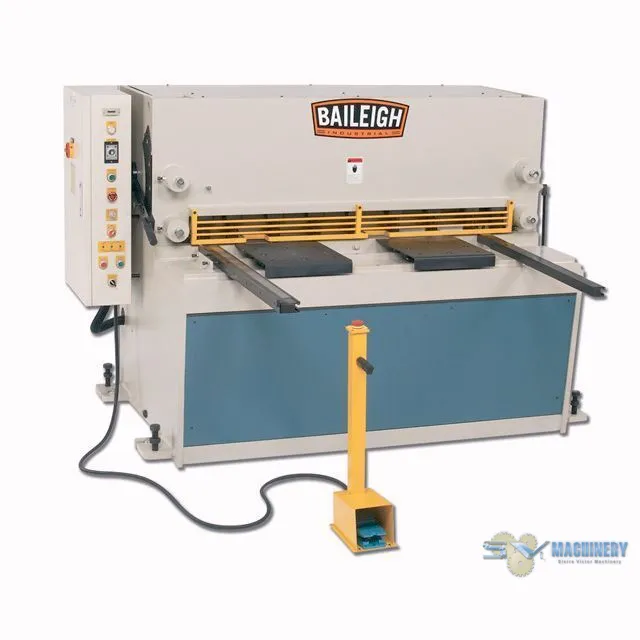

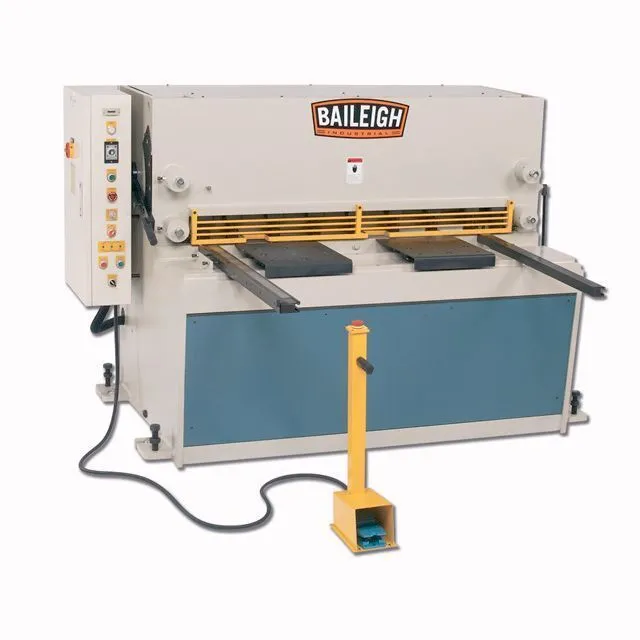

<li> We build this hydraulic sheet metal shear with only the <strong>best components</strong> to ensure that it will last for many years. The <strong>adjustable blade gap and rake angle</strong> improve cut quality and minimize burr. </li>
<li><strong>¼” mild steel</strong> maximum capacity.</li>
<li><strong>52”</strong> shearing length.</li>
<li>15 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>
<li>Industrial-grade hydraulic system can take anything you throw at it.</li>
<li><strong>Heavy support arms</strong> keep your material square to the blade.</li>
<li>Easy to operate: just press the foot pedal. <strong>Hydraulic hold-downs</strong> grab the material to ensure a straight cut, then the blade drops.</li>
<li>Switch between <strong>3 modes</strong>as needed:
<ul>
<li>Jog mode: Inching the blade down to the material.</li>
<li>Single cycle mode: One cut for one pedal push.</li>
<li>Automatic cycling mode: Continuously cutting for production runs.</li>
</ul>
</li>
<li>Control panel includes rake angle adjustment, jog/run/stop controls, and <strong>production counter</strong>.</li>
<li><strong>Adjust the blade gap in seconds</strong> to prevent crimping or folding, especially when working on thinner materials.</li>
<li><strong>Adjustable rake angle</strong> can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.</li>
<li>It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.</li>
<li>Comes standard with <strong>high carbon chromium blades</strong>.</li>
<li>2-sided upper blades and 4-sided lower blades can be <strong>flipped and resharpened</strong> many times, saving you money.</li>
<li><strong>Fully welded plate steel frame</strong> ensures rigidity and prolongs blade life.</li>
<li>Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>We stock replacement parts, including blades, at our Wisconsin headquarters so we</li>
<li>can ship they to you quickly.</li>
<li>Includes <strong>lifetime technical support by phone</strong> from a team with hands-on industrial metalworking experience.</li>
