<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText" width="257">
<div align="center">48"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Capacity (Mild Steel)
</div>
</td>
<td class="TableText">
<div align="center">9 ga. (.150")
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Upper Roll Diameter
</div>
</td>
<td class="TableText">
<div align="center">4.75"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Forming Diameter
</div>
</td>
<td class="TableText">
<div align="center">7.125"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">

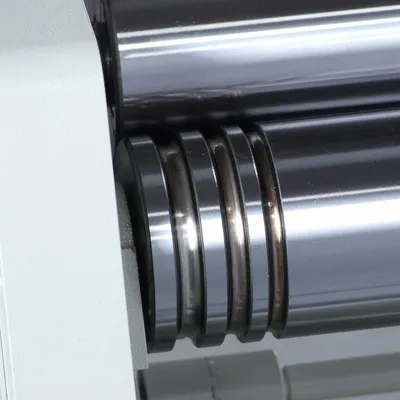

<div align="center">Wire Grooves
</div>
</td>
<td class="TableText">
<div align="center">Yes
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText">
<div align="center">5.85 rpm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">2 hp
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power Requirement
</div>
</td>
<td class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div align="center">60" x 37" x 11"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">3,740 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

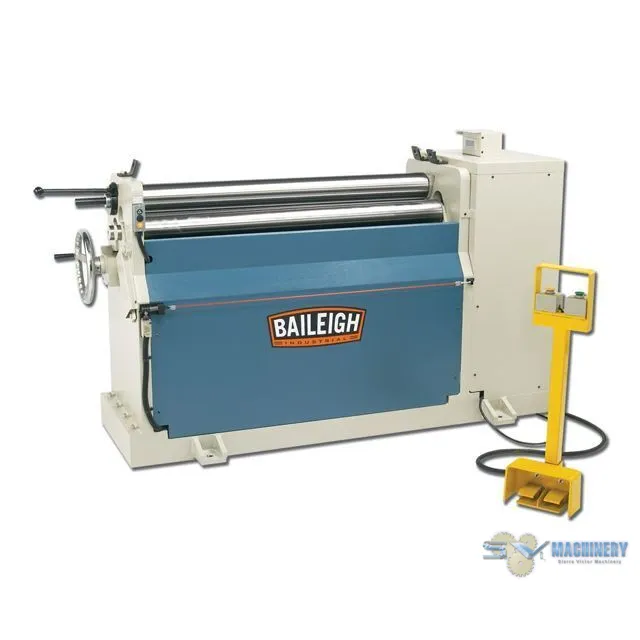

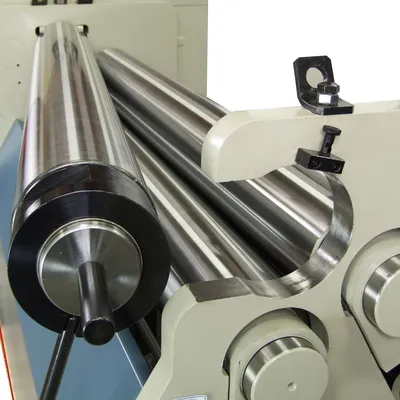

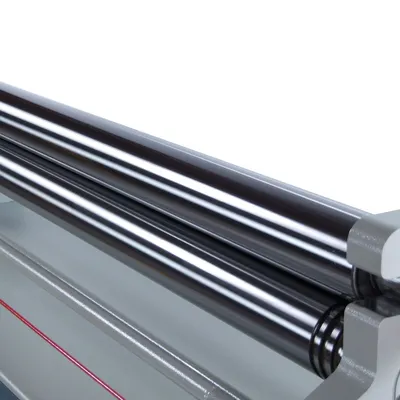

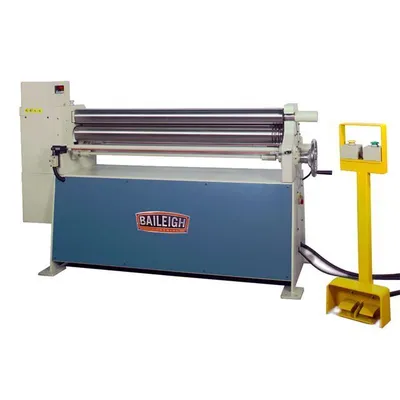

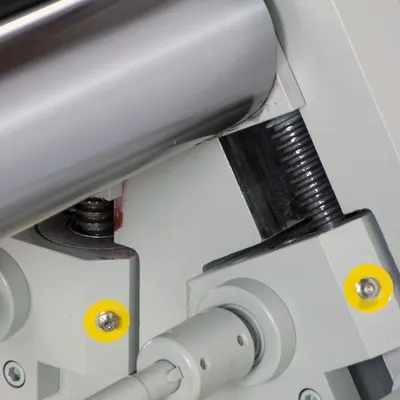

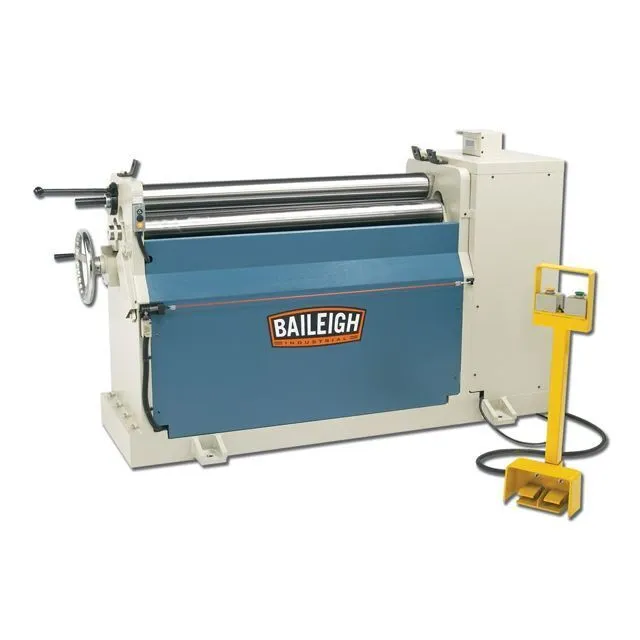

<li> With<strong> 3 driven rolls</strong>, the PR-409 single-pinch <strong>hydraulic plate roller</strong> cuts down on forming time so you can get jobs done faster. </li>
<li><strong>4’</strong> forming width.</li>
<li>Can bend <strong>9 gauge mild steel</strong> into a 7” ring on its full length.</li>

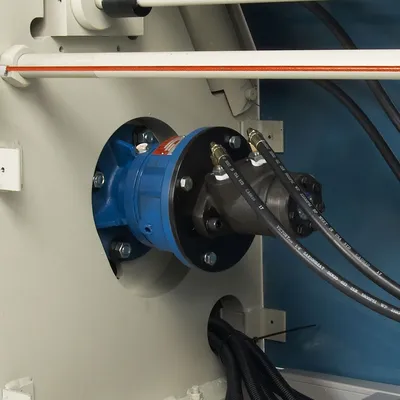

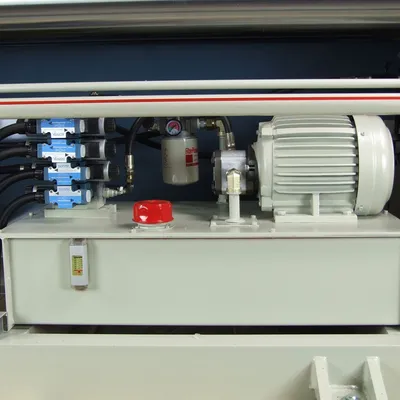

<li>Operated entirely by an <strong>industrial-grade hydraulic system</strong>.</li>
<li><strong>2 hp 220-volt 3-phase</strong> motor controls the movement of the back roll and the rolling of all 3 forming rolls.</li>

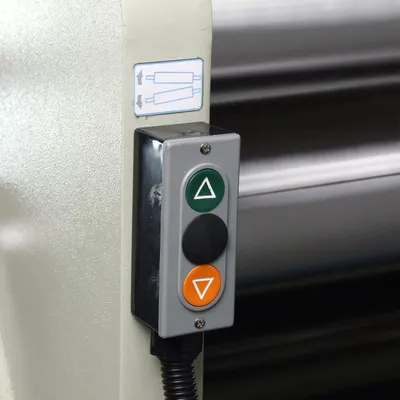

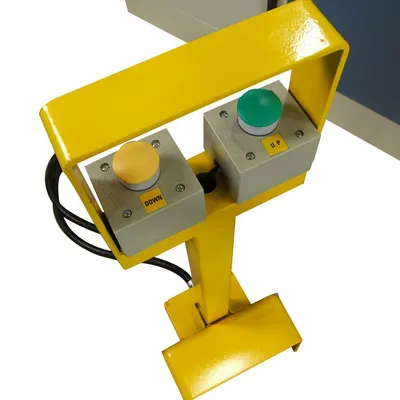

<li>Convenient control pedestal includes <strong>forward and reverse foot pedals</strong> and buttons to control the up and down movement of the back roll.</li>

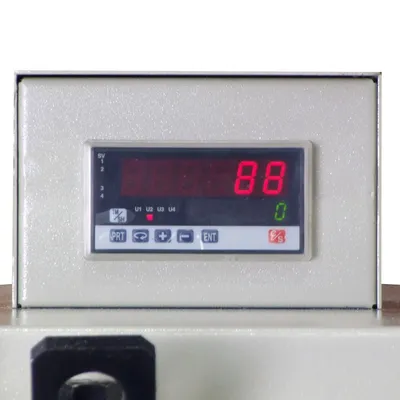

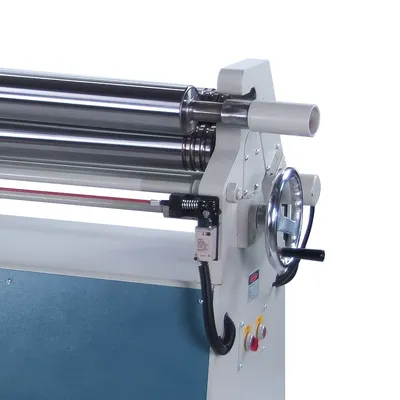

<li><strong>Digital readout</strong> shows the position of the back roll for easy repeatability.</li>
<li><strong>Full steel frame</strong>, machined to exacting tolerances, maintains accuracy and prevents deflection.</li>

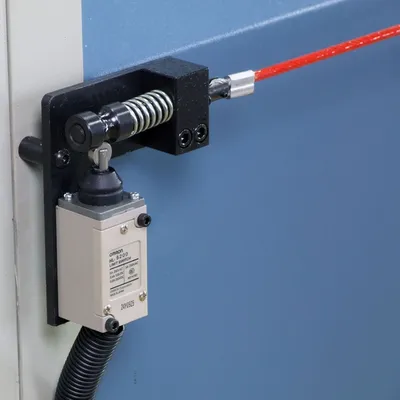

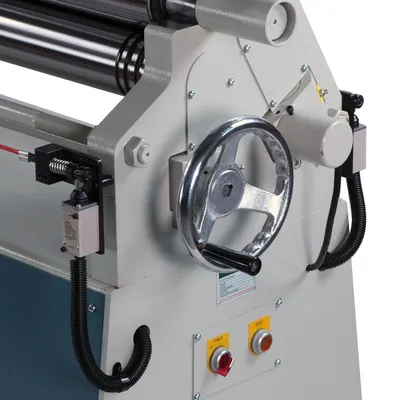

<li><strong>Emergency stop cables</strong> on the front and back of the machine help to keep your shop safe.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Comes with lifetime <strong>technical support by phone</strong>.</li>
<li><em>An optional coning attachment is available for the PR-409 hydraulic plate roller.</em> </li>
