<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Forming Width
</div>
</td>
<td class="TableText" width="257">
<div align="center">48"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Upper Roll Diameter
</div>
</td>
<td class="TableText">
<div align="center">5.91"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Minimum Forming Diameter
</div>
</td>
<td class="TableText">
<div align="center">
<div>8.86"
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div align="center">Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Roll Speed
</div>
</td>
<td class="TableText">
<div align="center">
<div>4.67 rpm.
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">3 hp
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Power Requirement
</div>
</td>
<td class="TableText">
<div align="center">220V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div align="center">83" x 32" x 52"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">4,180 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

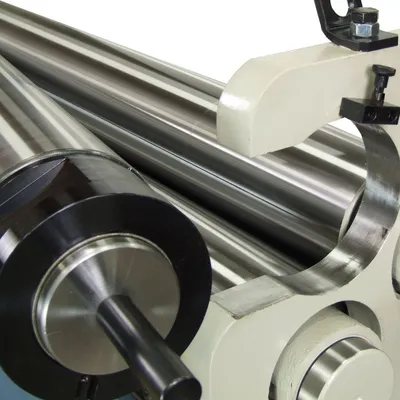

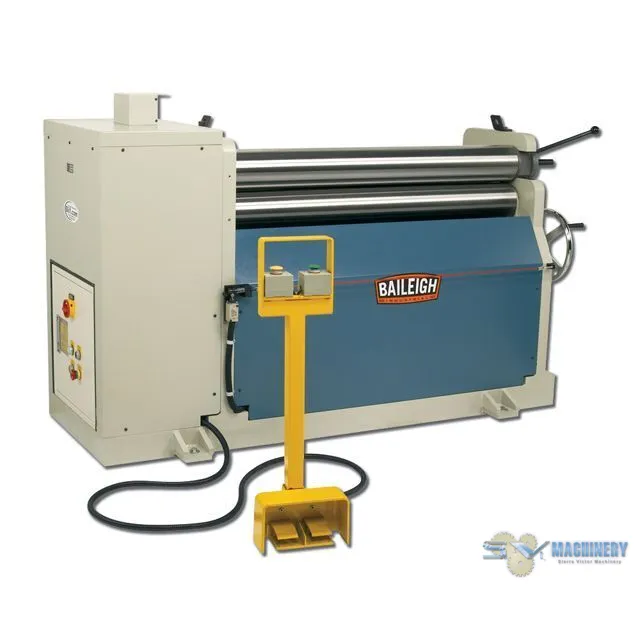

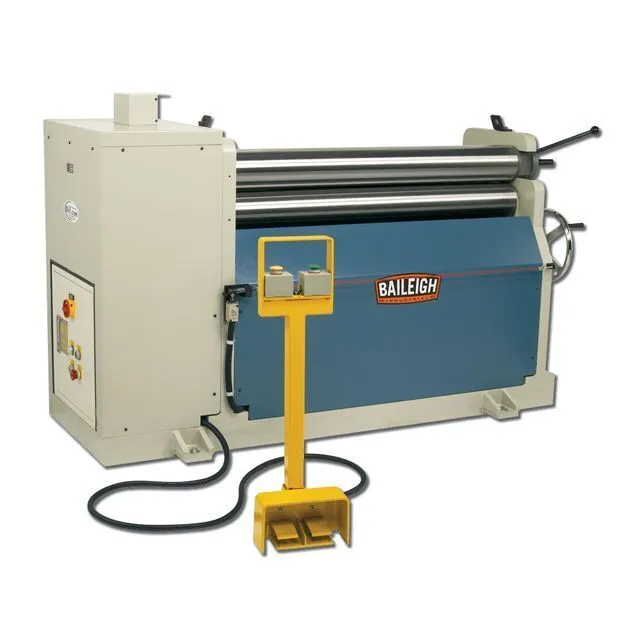

<li> This durable, easy-to-use plate roll will last for many years in <strong>small to medium shops</strong>. Its <strong>3 hydraulically driven rolls</strong> can handle maximum capacity with ease and finish jobs faster.</li>
<li><strong>4’</strong> forming width.</li>
<li><strong>3 gauge (¼”) mild sheet</strong> steel capacity.</li>
<li>3 hp motor runs on <strong>220-volt 3-phase</strong> power.</li>
<li>Large <strong>planetary gearbox</strong>, connected to main motor, drives the top and bottom rolls.</li>

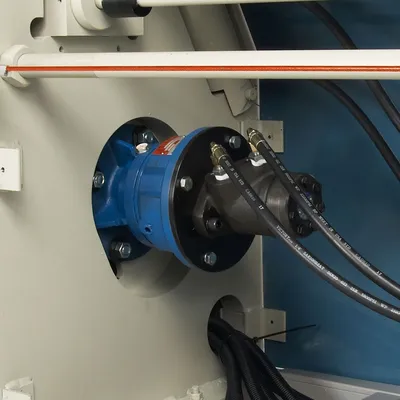

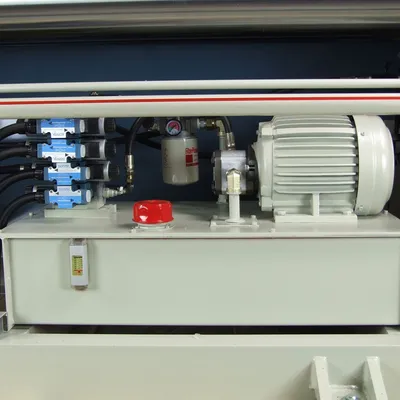

<li>Industrial-grade hydraulic system drives all 3 rolls.</li>

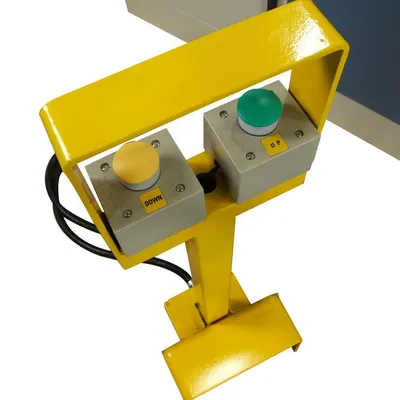

<li>Movable control pedestal includes <strong>foot pedals</strong> to run the rolling and buttons to move the forming roll up and down.</li>

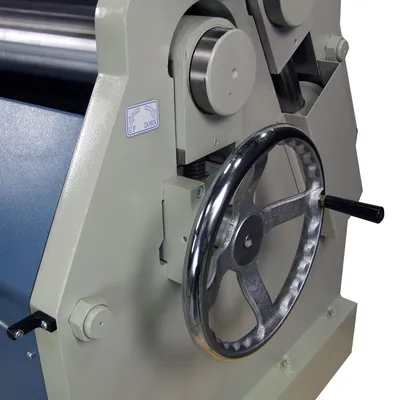

<li><strong>Easy to operate</strong>: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.</li>

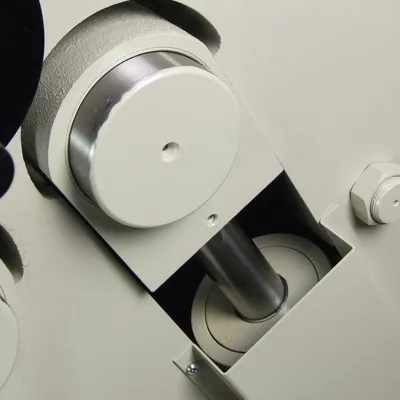

<li>Just flip a switch to bring the back roll up at an <strong>angle for coning</strong>.</li>

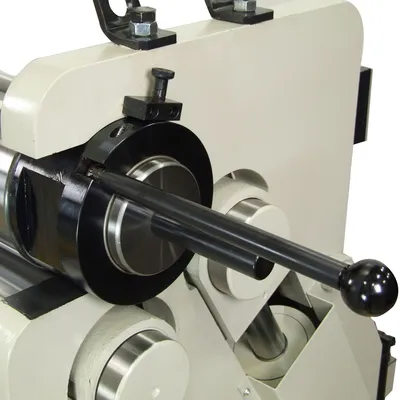

<li><strong>Quick-release mechanism</strong> on the top roll makes it easy to slide off the finished work.</li>

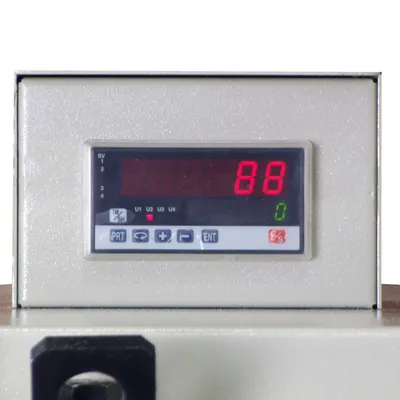

<li><strong>Digital readout</strong> tracks the position of the back roll so you can make repeatable bends.</li>
<li><strong>Robust welded steel frame</strong> maintains accuracy and rigidity by keeping the rolls in alignment.</li>

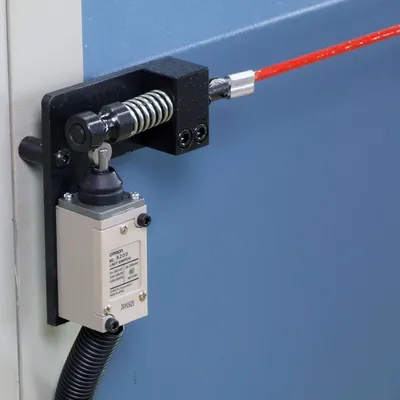

<li>Dual emergency stop cables are located on the front and back of the machine for your safety.</li>
<li>Covered by a <strong>1-year parts warranty</strong>.</li>
<li>Includes <strong>lifetime technical support by phone</strong> from a team with hands-on machine experience.</li>
</ul>
