<p><b>SPECIFICATIONS:
</b></p>
<table class="TableText" border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td width="273">
<div>
<div align="center"><span style="color: rgb(255, 255, 255);"><b><strong>STOCK#</strong></b></span> </div>
</div>
</td>
<td width="241"><div align="center"><span style="color: rgb(255, 255, 255);"><b>1791320</b></span></div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center"><strong>MODEL</strong> </div>
</div>
</td>
<td><div align="center">DDS-237</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Drum Length (In.)</div></td>
<td><div align="center">37</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Number of Sanding Drums</div></td>
<td><div align="center">2</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Drum Speed (RPM)</div></td>
<td><div align="center">1,700</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Drum Diameter (In.)</div></td>
<td><div align="center">6</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Conveyor Motor (HP)</div></td>
<td><div align="center">1/4</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Conveyor Speed (FPM)</div></td>
<td><div align="center">8 & 12</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Maximum Board Thickness (In.)</div></td>
<td><div align="center">5-1/4</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Maximum Board Width (In.)</div></td>
<td><div align="center">37</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Minimum Board Length (In.)</div></td>
<td><div align="center">9</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Minimum Board Thickness (In.)</div></td>
<td><div align="center">1/32</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Collection Minimum CFM Required (CFM)</div></td>
<td><div align="center">1,200</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Port Outside Diameter (In.)</div></td>
<td><div align="center">two @ 4"</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Power (HP)</div></td>
<td><div align="center">7-1/2</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Phase</div></td>
<td><div align="center">1</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Voltage (V.)</div></td>
<td><div align="center">230 only</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Recommended Circuit Size (Amps.)</div></td>
<td><div align="center">50</div></td>
</tr>
</tbody>
</table>
<p></p>
<p><b>FEATURES:</b></p>

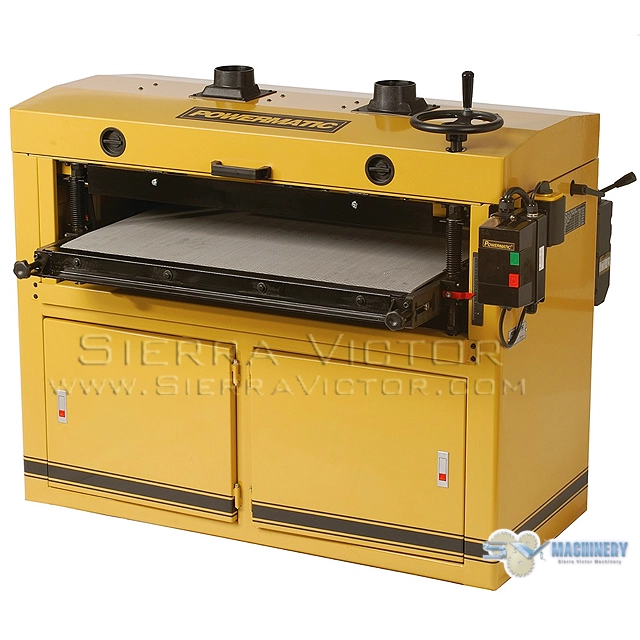

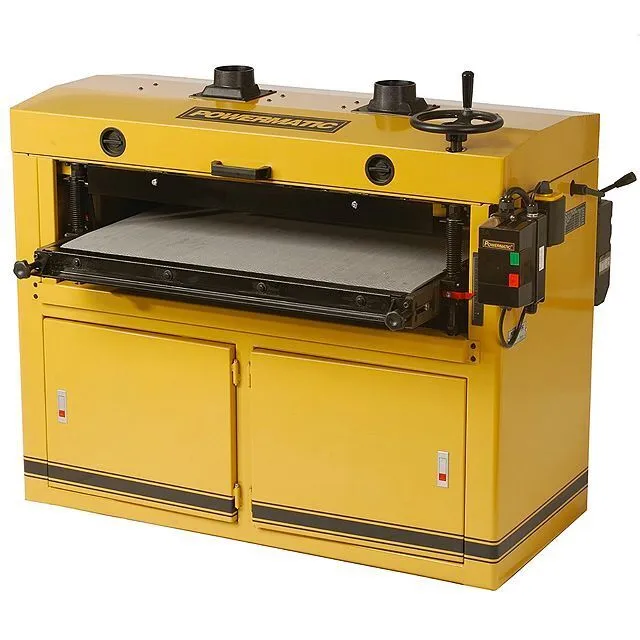

<p>This is a production class Dual Drum Sander that is loaded with features. A 7.5HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.</p>
