<p><strong>SPECIFICATION:</strong></p>
<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. Crosscut
</div>
</td>
<td class="TableText">
<div>
<div>36" / 910mm
</div>
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. Rip Cut
</div>
</td>
<td class="TableText">
<div>Unlimited
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Max. Cut Thickness
</div>
</td>
<td class="TableText">
<div>1-3/4" / 45mm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Cut Accuracy, Straight and Square
</div>
</td>
<td class="TableText">
<div>1/64" / .4mm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText">
<div>120V, 15 amp (220V available)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Frame Length
</div>
</td>
<td class="TableText">
<div>57" / 3050mm
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Dimensions (AxBxC)
</div>
</td>
<td class="TableText">
<div>45" x 97" x 57"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Shipping Weight
</div>
</td>
<td class="TableText" width="257">
<div>285 lbs. / 129 kg
</div>
</td>
</tr>
</tbody>
</table>
<p></p>
<p><strong>FEATURES:</strong></p>

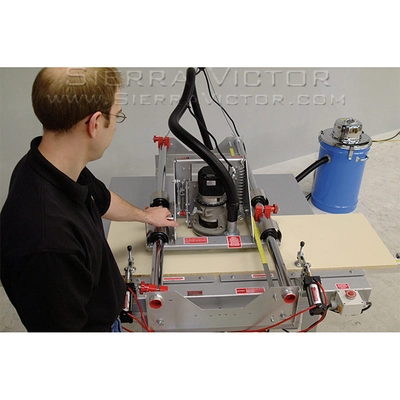

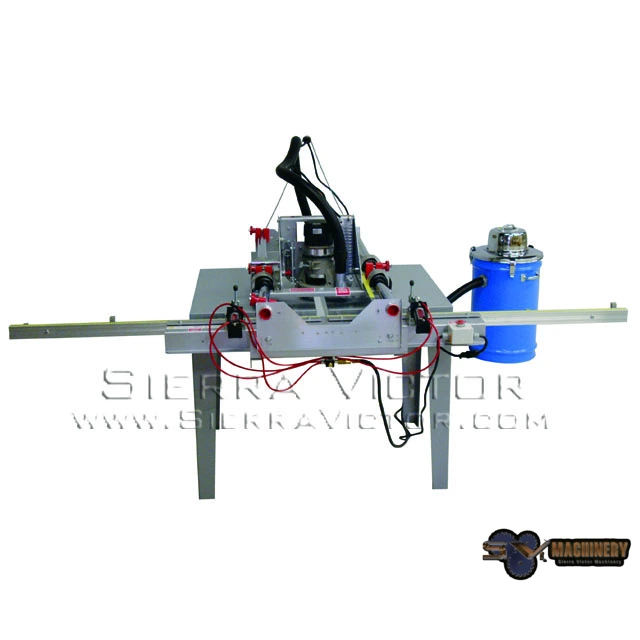

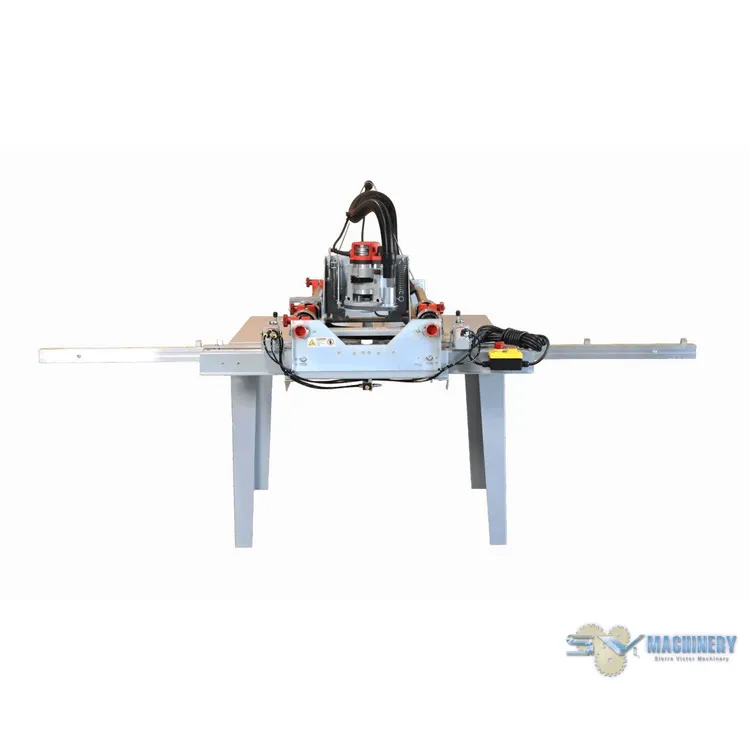

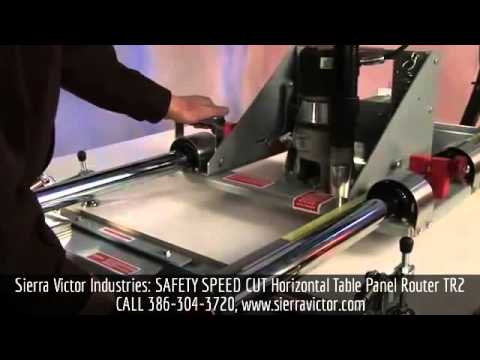

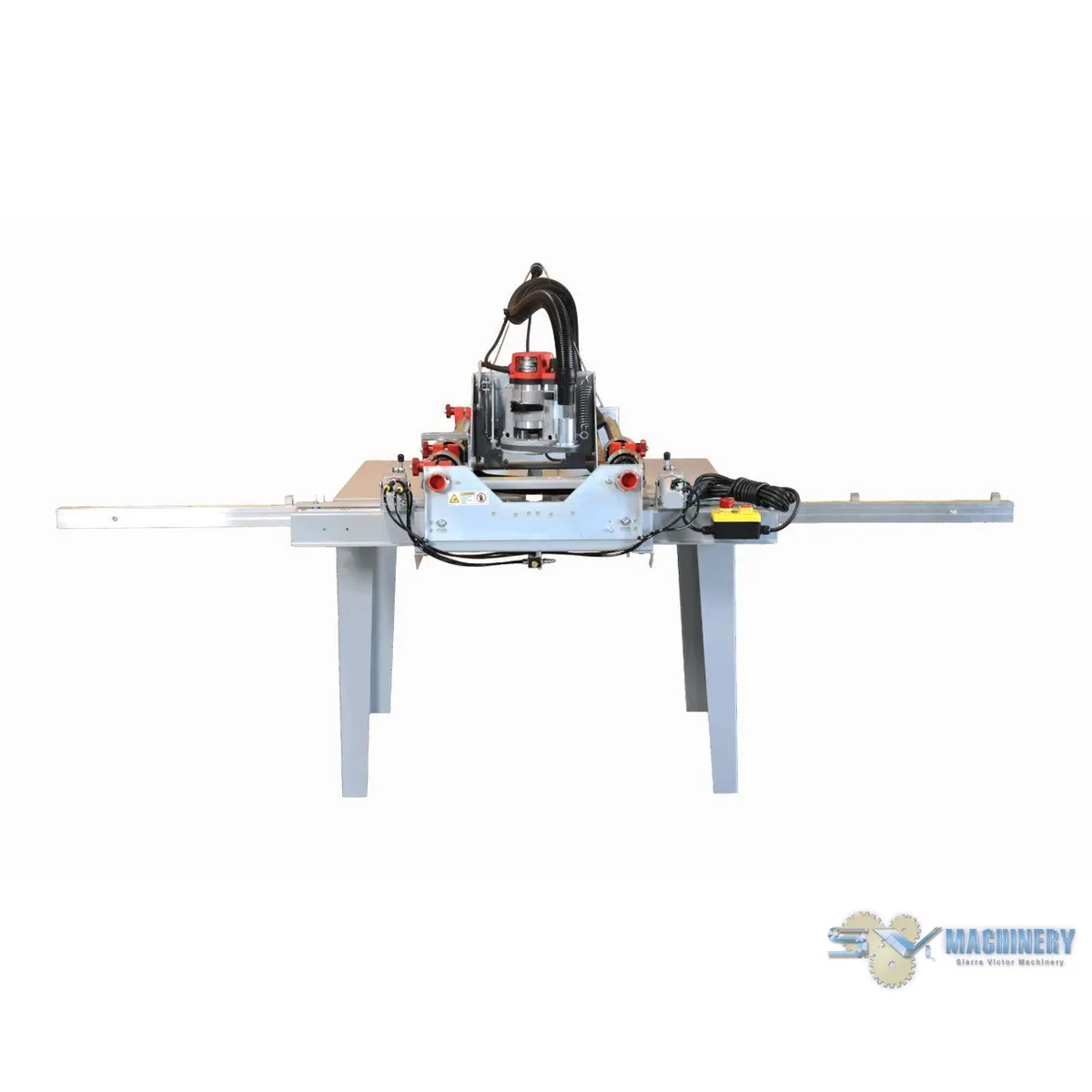

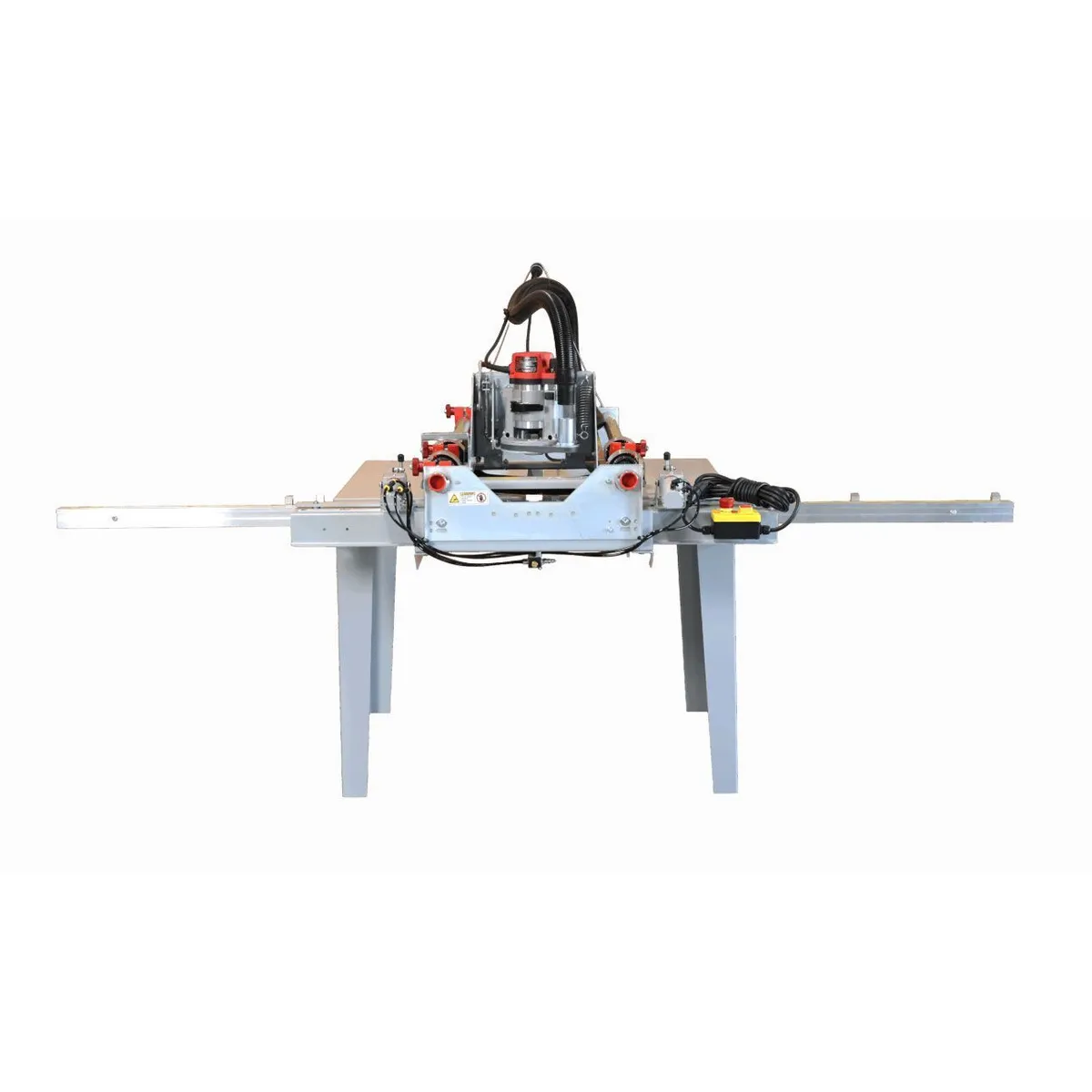

<p>SAFETY SPEED 120V 36" Table Router TR2</p>
<ul><li>The TR2 panel router is a horizontal model offering accuracy and power in a space saving size ideal for cross dado jobs up to 36 inches. Equipped with a heavy duty 3-1/4 Hp motor this unit easily cuts standard dados, blind dados as well as full-length rabbets. One person operation makes this machine well suited for wood shops, schools, display manufacturers and cabinet shops.</li></ul>
<p><strong>STANDARD EQUIPMENT:</strong></p>
<ul><li>3-1/4 Hp, 15 amp router motor.</li><li>Horizontal steel work table.</li><li>Chrome-plated 1-3/4” guide tubes.</li><li>8 Nylatron roller bearing system.</li><li>Adjustable rulers.</li><li>Integrated dust collection bonnet.</li><li>Floating router head</li><li>2 clamps.</li><li>2 blind dado stops.</li><li>Extended warranty.</li><li>*Gauging System, and dust kit are now Included with machine</li></ul>
<p><b>OPTIONAL ITEMS:</b></p>
<!--StartFragment-->
<table><tbody><tr><td width="81" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span></td><td width="433" bgcolor="#333333"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span></td></tr><tr><td bgcolor="#CCCCCC">—</td><td>220V Upgrade (per motor)</td></tr><tr><td bgcolor="#CCCCCC">4430</td><td>Extension Table (per side)</td></tr><tr><td bgcolor="#CCCCCC">3430TR2</td><td>Air Clamps</td></tr><tr><td bgcolor="#CCCCCC">H6450</td><td>Stop bar gauge</td></tr><tr><td bgcolor="#CCCCCC">740C</td><td>Industrial VAC - 1 HP, 100 CFM, 90" S.P.</td></tr><tr><td bgcolor="#CCCCCC">740CC</td><td>Industrial VAC - 2.25 HP, 115 CFM, 110" S.P.</td></tr><tr><td bgcolor="#CCCCCC">4450</td><td>Gauging System</td></tr><tr><td bgcolor="#CCCCCC">—</td><td>High quality router bits</td></tr><tr><td bgcolor="#CCCCCC">TR Dust</td><td>Dust kit (New machine purchases only)<br>includes: hose, rollers, dust tube and elbow<br>( Existing machines may require dust bonnett)</td></tr><tr><td bgcolor="#CCCCCC">PD1</td><td>Panel Dolly</td></tr><tr><td bgcolor="#CCCCCC">AUTO1</td><td>Automater (all 120 Volt machines)</td></tr></tbody></table>
