COLE-TUVE HPK-100 4 x 4 x 1/2 in. Hydraulic Double-Pinch Angle Bending Roll w/Optional Hydraulic Guide Rolls and Variable Speed

COLE-TUVE HPK-100 4 x 4 x 1/2 in. Hydraulic Double-Pinch Angle Bending Roll w/Optional Hydraulic Guide Rolls and Variable Speed

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Roll Benders
Manufacturer:
COLE TUVE
Model:
HPK-100
Condition:
Build To Order
Stock #:
HPK-100
Status:
For Sale

Description

Three Rolls are Powered. Standard Rolls Handle Many Shapes. 3-Axis Manual Lateral Guide Rolls. 2-Electronic Digital Readouts (LED). Horizontal and Vertical Working Positions.

Angle Roll TypeHydraulicHydraulic
Roll Diameter Ø12.4"0.3 m
Shaft Ø3.94"100.08 mm
Motor Power10 HP10 HP
Driven Rolls33
Rolling Speed, FPM2323
Roll AdjustmentHydraulicHydraulic
Pipe Capacity4" Sch. 40, ø40"4" Sch. 40, ø40"
Round Tube Capacity(SP) 5" x 12 ga., ø56"(SP) 5" x 12 ga., ø56"
Square Tube Capacity3-1/8" x 3-1/8" x 3-1/16", ø60"3-1/8" x 3-1/8" x 3-1/16", ø60"
Rectangular Tube Capacity4" x 1-1/2" x 5/32", ø52"4" x 1-1/2" x 5/32", ø52"
Square Bar2-3/8", ø30"2-3/8", ø30"
Round Bar(SP) 3", ø32"(SP) 3", ø32"
Flat Bar Easy Way6-5/16" x 1-3/8", ø32"6-5/16" x 1-3/8", ø32"
Flat Bar Hard Way4" x 3/4", ø32"4" x 3/4", ø32"
Angle Iron Leg-In4" x 4" x 3/8", ø40"4" x 4" x 3/8", ø40"
Angle Iron Let-Out4" x 4" x 1/2", ø40"4" x 4" x 1/2", ø40"
T-Iron Leg-In3-1/2" x 3/8", ø40"3-1/2" x 3/8", ø40"
T-Iron Leg-Out4" x 7/16", ø40"4" x 7/16", ø40"
Channel Leg-In7", ø40"7", ø40"
Channel Leg-Out7", ø36"7", ø36"
Upper Roll Dia.12.4"314.96 mm
Lower Roll Dia.12.4"314.96 mm
StyleDouble PinchDouble Pinch

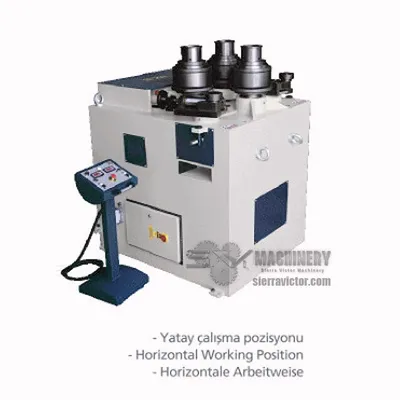

Working PlaneHorizontal/VerticalHorizontal/Vertical
Digital ReadoutYesYes
Dimensions79 x 57 x 67 in.79 x 57 x 67 in.
Weight8800 lbs.8800 lbs.

*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Hydraulic Guide Rolls
Variable Speed

Optional Items - Call for price:
* Pipe/Tube/Shape Bending Rolls
* Infinitely Variable Rolling Speeds
* Hydraulic 3- Axis Leg-In Guide Rolls
* NC Control
