<table class="TableText" width="520" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr class="Title_white_bold" bgcolor="#333333">
<td class="Title_white_bold" width="64" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM#</strong></span>
</div>
</td>
<td class="TableText" width="67" bgcolor="#CCCCCC">
<div class="TableText" align="center">Belt Size
</div>
</td>
<td class="TableText" width="106" bgcolor="#CCCCCC">
<div align="center">Speed
</div>
</td>
<td class="TableText" width="105" bgcolor="#CCCCCC">
<div align="center">Ship Weight (lbs.)
</div>
</td>
<td class="TableText" width="48" bgcolor="#CCCCCC">
<div align="center">HZ
</div>
</td>
<td class="TableText" width="36" bgcolor="#CCCCCC">
<div align="center">HP
</div>
</td>
<td class="TableText" width="78" bgcolor="#CCCCCC">
<div align="center">Volt / Phase
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>30000</strong></span>
</div>
</td>
<td rowspan="2" bgcolor="#FFFFFF">
<div align="center">4" x 60"
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">Fixed Speed <br>
5,000 SFPM
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">200
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">60
</div>
</td>
<td rowspan="2" bgcolor="#FFFFFF">
<div align="center">1
</div>
</td>
<td rowspan="2" bgcolor="#FFFFFF">
<div align="center">120/1
</div>
</td>
</tr>
<tr class="TableText">
<td class="Title_white_bold" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>31100</strong></span>
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">500-5300 SFPM<br>
Variable-Speed
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">240
</div>
</td>
<td bgcolor="#FFFFFF">
<div align="center">50-60
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<ul>
<li><strong>Made in the USA</strong></li>

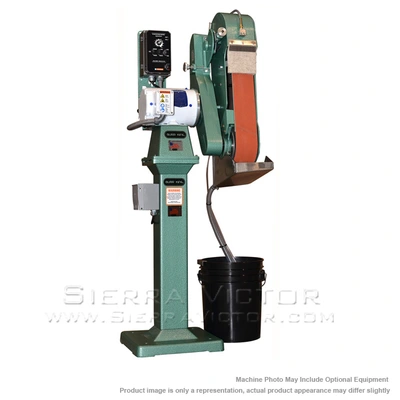

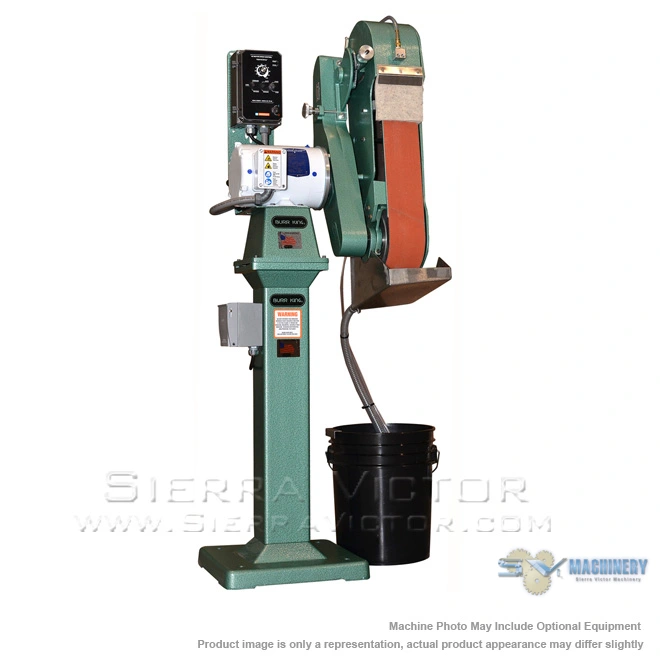

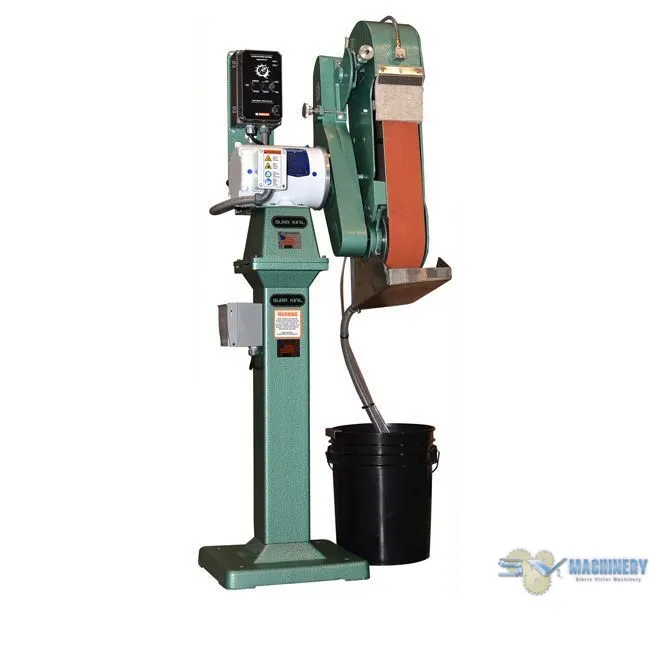

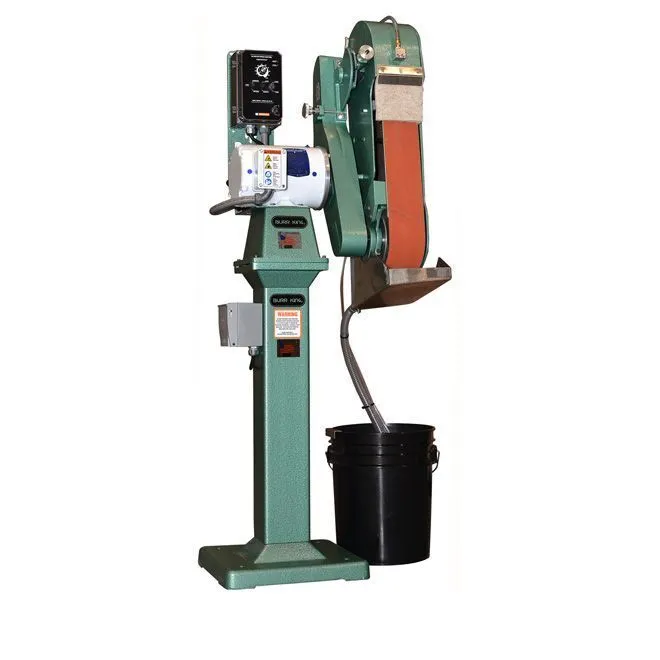

<li>Ideal for lapidary, glass, and other finishing applications optimized by diamond abrasives! With diamond belts and the Model 960-401 you will experience up to 100 times the life of expectancy of silicon carbide abrasives while attaining vastly superior results!</li>
<li>5,000 surface feet per minute to optimize modern diamond abrasives</li>
<li>4 x 60 inch belt track</li>
<li>Available in 2-1/2 x 60 belt track</li>
<li>Integrated water fed system including pump, water flow adjusting valve, dual 120 degree spray nozzles, stainless steel water receiver tray with drain, sump, and interconnecting flexible tubes</li>
<li>1 HP NEMA 4x motor and switch for wet application</li>
<li>Ground fault interrupter power distribution "rain" box with master switch for the grinder and feeder pump for maximum safety in wet grinding modes</li>
<li>Cast aluminum frame for Burr King ruggedness</li>
<li>Safe belt track guarding that is OSHA compliant</li>
<li>Bearings are high quality and sealed for life</li>
<li>Belt change is quick with a linear belt tension device</li>
<li>Belt tracking is simple and effective</li>
<li>Work position is adjustable from horizontal to vertical</li>
<li>Platen is full belt and generously long</li>
<li> Contact wheel, slack, or platen grinding</li>
<li>Dry grinding is as simple as turning off the pump</li>
<li>Filter pak 4001 is also available, heavy duty Polyethylene tank with filter.</li>
<li>Pedestal is included.</li>
<li><strong>CAUTION: Use proper eye, face, hand and body protection when using this or any other grinder.</strong></li>
</ul>
