<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<p>Max. Material Thickness <br>(Stainless Steel)
</p>
</td>
<td class="TableText" width="257">
<div align="center">.019"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Shear Capacity
</div>
</td>
<td class="TableText" width="257">
<div align="center">20 ga (.036”)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Bending Capacity
</div>
</td>
<td class="TableText" width="257">
<div align="center">20 ga (.036”)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Rolling Capacity
</div>
</td>
<td class="TableText" width="257">
<div align="center">20 ga (.036”)
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Max Bend Angle
</div>
</td>
<td class="TableText" width="257">
<div align="center">90 deg
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Min Rolling Diameter
</div>
</td>
<td class="TableText" width="257">
<div align="center">1.54"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Box Depth
</div>
</td>
<td class="TableText">
<div align="center">4"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Bed Width
</div>
</td>
<td class="TableText">
<div align="center">30"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Finger Lengths
</div>
</td>
<td class="TableText">
<div align="center">1", 2-1/8", 3-1/8", 6", 8", 10-1/8"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div align="center">Finger Thickness
</div>
</td>
<td class="TableText">
<div align="center">1/4"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Power
</div>
</td>
<td class="TableText" width="257">
<div align="center">Manual
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Shipping Dimensions (L/W/H)
</div>
</td>
<td class="TableText" width="257">
<div align="center">38" x 18" x 27"
</div>
</td>
</tr>
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText" width="257">
<div align="center">340 lbs
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.

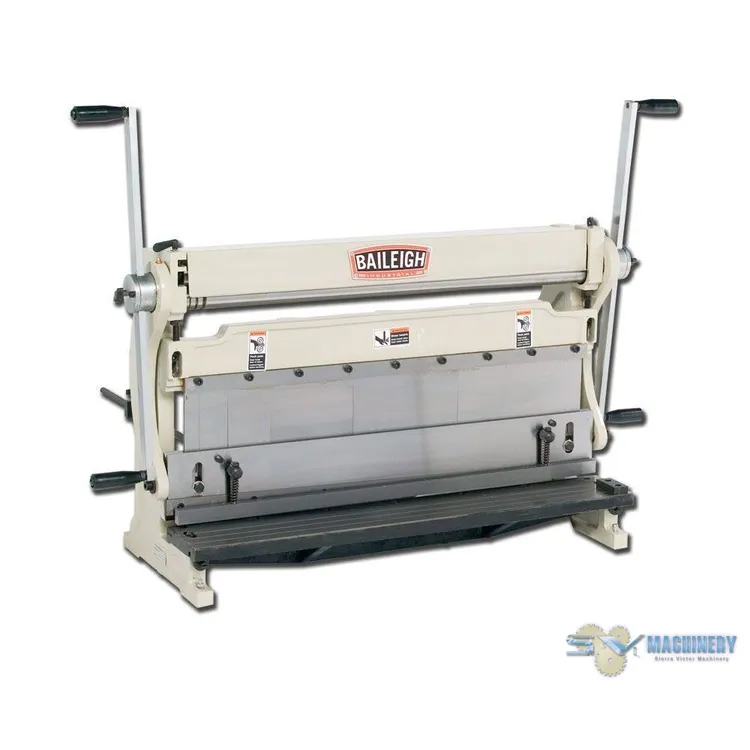

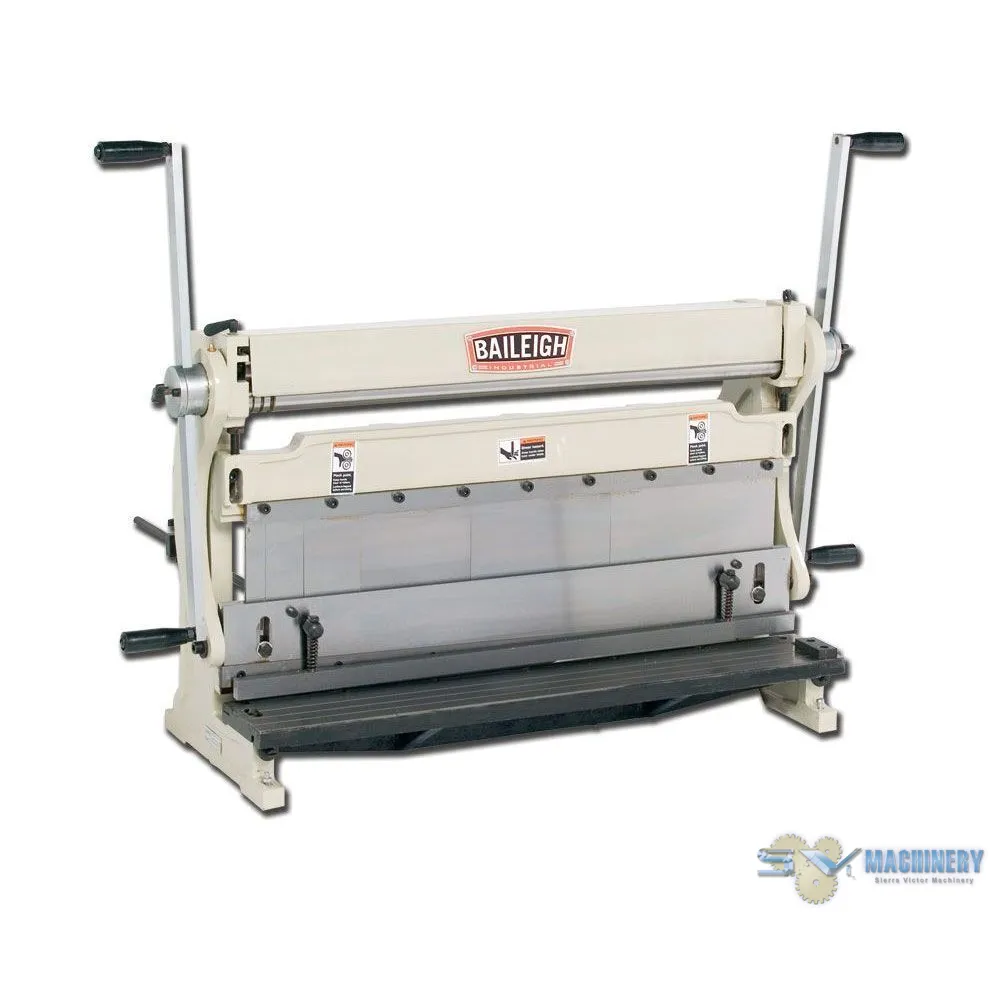

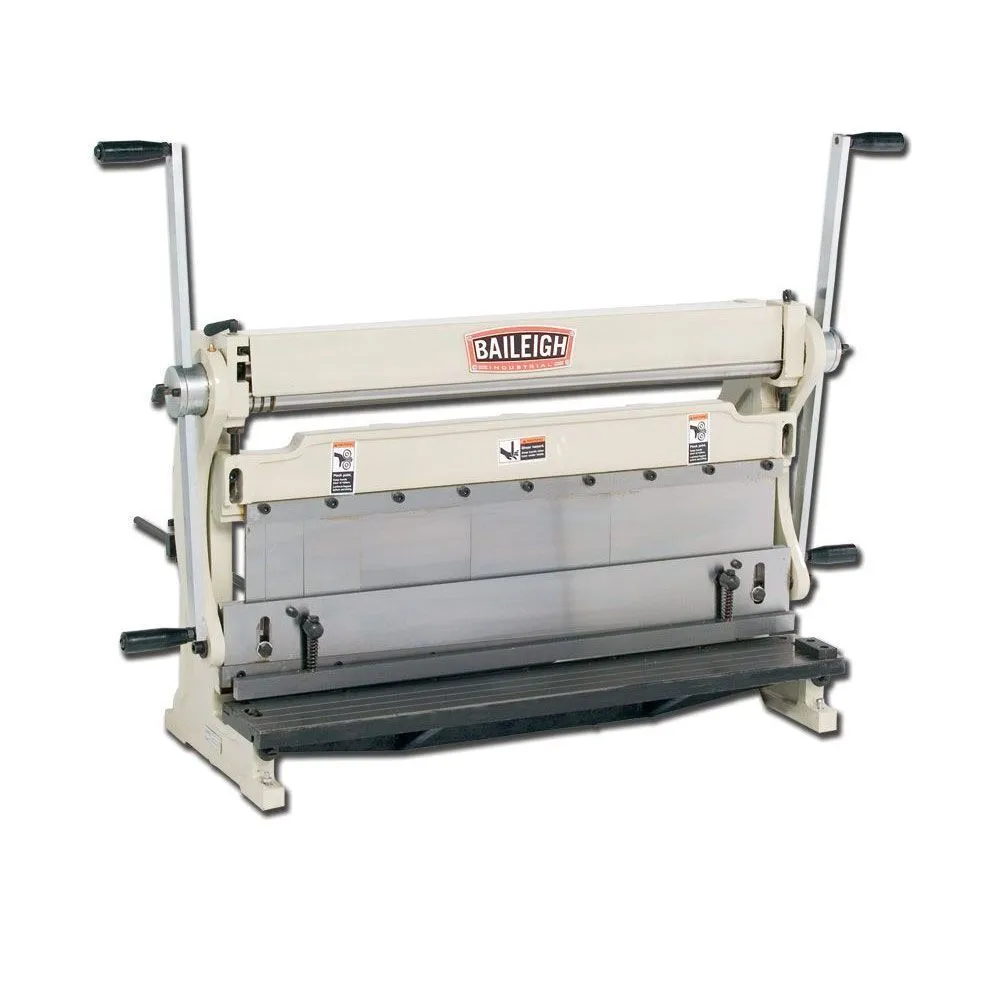

</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts</p><p>Slip roll on top. Press brake in the middle. Shear on the bottom. This 3-in-1 combo machine saves space. It’s a great choice for small shops with low production runs and one-off projects.
</p>
<ul>
<li>Slip roll on top. Press brake in the middle. Shear on the bottom. This 3-in-1 combo machine <strong>saves space</strong>. It’s a great choice for small shops with <strong>low production runs and one-off projects</strong></li>
<li><strong>30” working width</strong> for manual shear, press brake, and roll.</li>
<li>Maximum capacity of <strong>20 gauge mild steel</strong> and 16 gauge aluminum for all functions.</li>

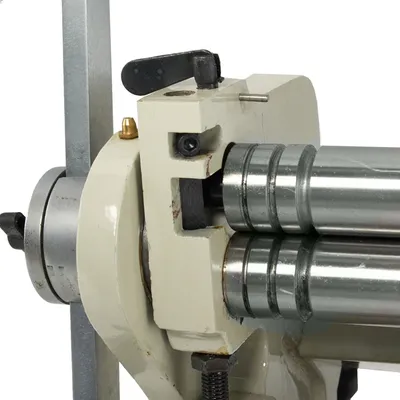

<li>Slip roll portion has <strong>3 wire grooves</strong>.</li>
<li>Forms rolls <strong>down to 1.54”</strong> in diameter.</li>
<li>Vertical press brake portion <strong>bends up to 90°</strong>, so you can make perfect corners.</li>
<li><strong>Adjust the camber of the tooling</strong> to keep pressure in the middle for a consistent bend across the full width.</li>

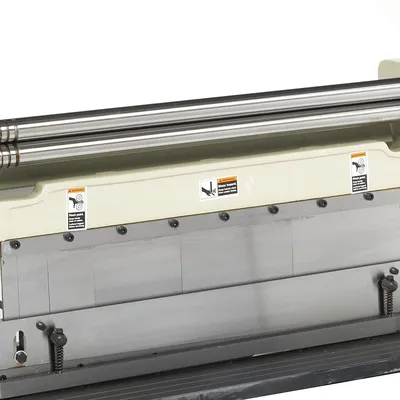

<li>Press brake portion includes a V die set with corresponding punch die on top to make a <strong>90° bend</strong>.</li>
<li><strong>Movable fingers</strong> on the top beam, ranging from 1” to 10-⅛”, can make many box sizes.</li>

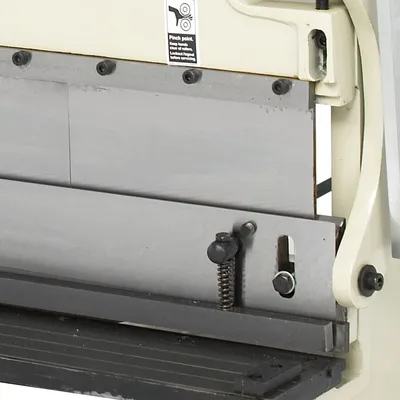

<li>On the shear portion, a <strong>spring-loaded hold-down</strong> helps reduce burr on the cut and prevent waste.</li>
<li><strong>Hardened and reversible blades</strong> stay sharp for longer.</li>
<li><strong>Turn the handles 360°</strong> to get one full cycle from the slip roll, press brake, or shear.</li>
<li>Large handles with <strong>grips on both sides</strong> allow 2 operators to combine their force and make the machine easier to use.</li>

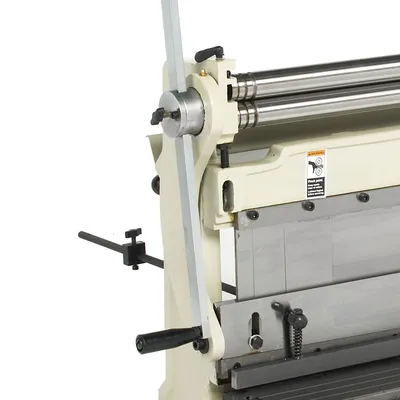

<li>Manual <strong>back gauge</strong> lets you make repeatable parts without difficulty.</li>
<li><strong>Thick steel construction</strong>, weighing 340 lbs., gives the machine structural strength and maintains accuracy.</li>
<li>Comes with a <strong>1-year parts warranty</strong>.</li>
<li>We offer <strong>lifetime technical support by phone</strong>. Call our team of experienced reps whenever you need help.</li>
<li><strong>Recommended for:</strong> Hobbyists, maintenance, and R&D shops.</li>
<li>Looking for a wider shear brake roll? This machine is also available in a 40”-wide version and a 50”-wide model.</li>
