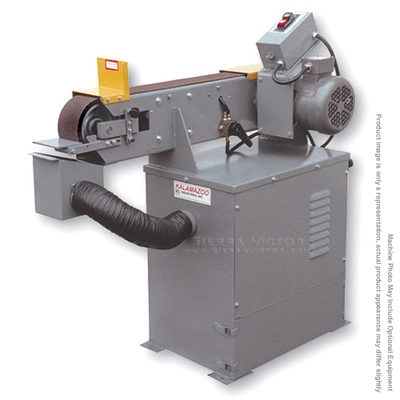

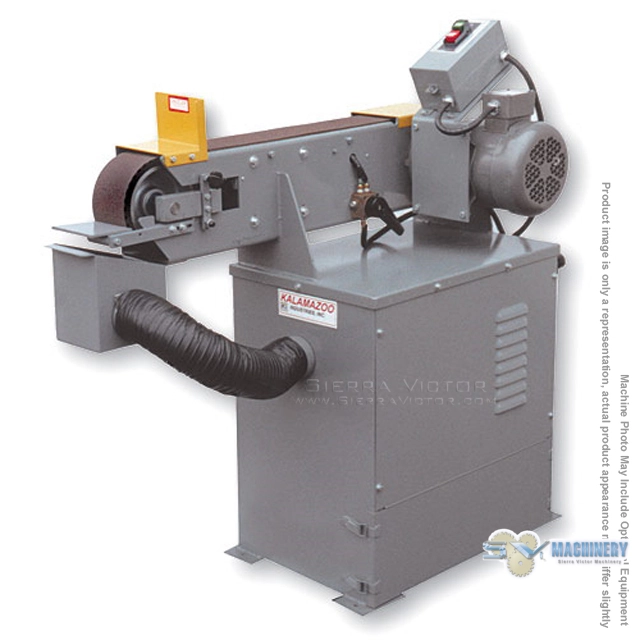

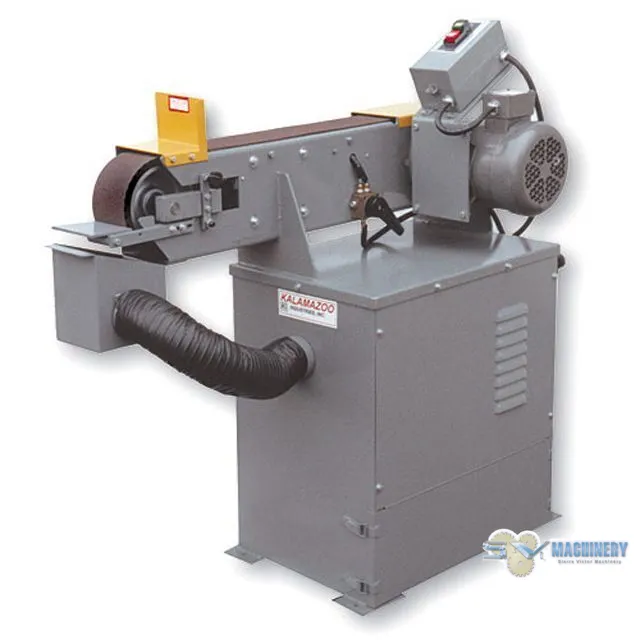

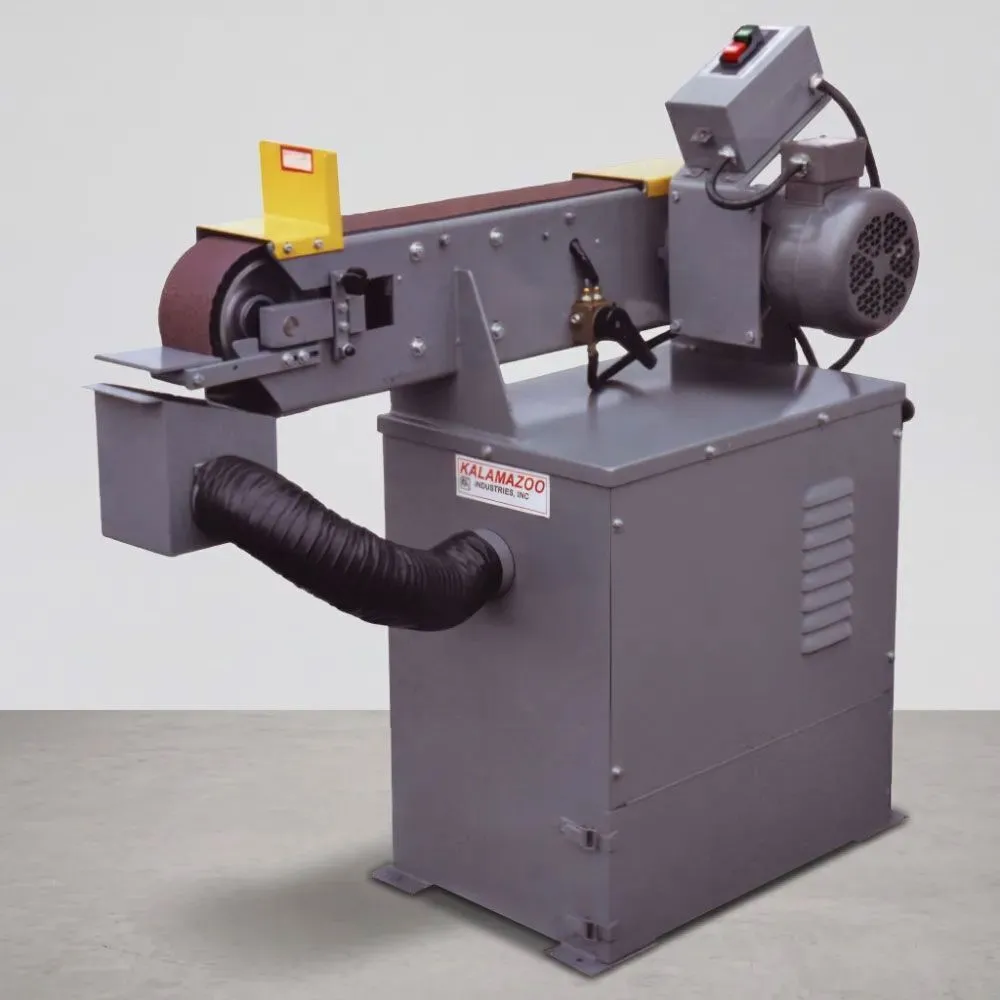

<p>KALAMAZOO KS390HV-5 / KS490HV-5 3 and 4 Inch Belt Grinders</p><p><strong>FEATURES - KS390HV-5:</strong></p><ul><li>KS390HV-5 3 x 90 inch belt grinder and dust collector is an American Made industrial grinder with a 5HP 3PH and powerful vacuum designed for heavy use. Other features include all steel construction, a dust collector base with a steel reusable steel mesh filter, an 8" OD x 4" W contact wheel, and reversible steel platen.</li><li>5 HP 3 PH 220 and or 440V motor (please specify voltage at the time of the order).</li><li>Grinder amp draws: 3PH 230V 11.8 amps, 460V 5.9 amps</li><li>Dust collector amp draws: 3PH 230V 2.8 amps, 460V 1.4 amps.</li><li>Belt speed 6900 SFPM.</li><li>8" OD x 3" W 70 durometer contact wheel with standard serrations.</li><li>Grinder switch: Magnetic on/off switch</li><li>Vacuum switch: rotary on/off switch.</li><li>24 – 1/2" long reversible and replaceable steel platen.</li><li>Mounted on DCV-6 dust collector – 400 CFM</li><li>Spring belt tensioning</li><li>Vacuum base.</li><li>All steel construction</li><li>USA MADE</li><li><strong>DESIGNED TO DO THE FOLLOWING:</strong><ul><li>Aggressive grinding</li><li>Beveling</li><li>Deburring</li><li>Descaling</li><li>Polishing</li><li>Finishing</li><li>Tool sharpening</li></ul></li></ul><p><strong>FEATURES - KS490HV-5:</strong></p><ul><li>KS490HV-5 4 x 90 inch grinder and vacuum provides versatility. A powerful 5HP 3PH belt grinder motor, 8" x 4" 70 duro serrated contact wheel, platen, work rest, full side to side movement, and 400 CFM vacuum.</li><li>Powerful 5 HP 3 PH belt sander (220/440V) – please specify voltage at the time of order. </li><li>Belt size: 4" x 90" (all belt types are useable). </li><li>Contact wheel diameter and type: 8" OD x 6" W serrated 70 duro </li><li>Grinder switch: Magnetic on/off switch.</li><li>Vacuum switch: rotary on/off switch.</li><li>Sealed ball bearings. </li><li>Belt grinder speed: 7200 SFPM.</li><li>24 – 1/2" long reversible and replaceable steel platen.</li><li>Mounted on DCV-6 steel dust collector system </li><li>Dust collector CFM: 400 CFM with reusable steel mesh filter (located in base) and hinged steel access door for easy debris clean out (located in the vacuum base).</li><li>A Steel debris chute with a 4" vacuum port.</li><li>Adjustable steel worktable.</li><li>Reusable and replaceable steel mesh filter. </li><li>Removable steel belt guard.</li><li>Work stop (located on top of the machine).</li><li>Fixed belt grinder head. </li><li>Spring belt tensioning with lever designed to extend or retract grinder yoke quickly.</li><li>A steel side-hinged access guard. </li><li>All steel construction. </li><li>Adjustable steel work table.</li><li><strong>DESIGNED TO DO THE FOLLOWING:</strong><ul><li>Aggressive grinding</li><li>Beveling</li><li>Deburring</li><li>Descaling</li><li>Polishing</li><li>Finishing</li><li>Tool sharpening </li></ul></li></ul><div>ITEM: 3" - 4" x 90" Horizontal Belt Grinders with Vacuum</div><div>MANUFACTURER: KALAMAZOO</div><div>MODEL: KS390HV-5 / KS490HV-5</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: KALAMAZOO KS390HV-5 / KS490HV-5%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
