<p><b>SPECIFICATIONS:</b></p>
<table class="TableText" border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div><span style="color: #ffffff;"><strong>STOCK#</strong></span></div>
</td>
<td width="206">
<div><span style="color: #ffffff;"><strong>1791267</strong></span></div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div><strong>MODEL</strong></div>
</td>
<td>
<div><strong>201HH</strong></div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Type of Cutterhead</div>
</td>
<td>
<div>Helical</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Knife Size (L x W x T)(in.)</div>
</td>
<td>
<div>15 x 15 x 2.5</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Cutterhead Speed (RPM)</div>
</td>
<td>
<div>4,800</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Cutterhead Diameter (In.)</div>
</td>
<td>
<div>3-1/4</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Number of Knives</div>
</td>
<td>
<div>150 Four-Sided Inserts</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Depth of Cut (In.)</div>
</td>
<td>
<div>3/16</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Planing Width (In.)</div>
</td>
<td>
<div>22</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Planing Thickness (In.)</div>
</td>
<td>
<div>9-1/4</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Minimum Planing Length (In.)</div>
</td>
<td>
<div>10</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Feed Rate (FPM)</div>
</div>
</td>
<td>
<div>
<div align="center">20/30</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Number of Speeds</div></td>
<td><div align="center">2</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Infeed Roller Diameter (In.)</div></td>
<td><div align="center">3</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Segmented Infeed Roller Diameter (In.)</div>
</div>
</td>
<td>
<div>
<div align="center">3</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Outfeed Roller Diameter (In.)</div>
</div>
</td>
<td>
<div>
<div align="center">3</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Bed Rollers Adjustable from Front</div>
</div>
</td>
<td>
<div>
<div align="center">2</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Maximum Height of Rollers Parallel to Tabletop (In.)</div></td>
<td><div align="center">0.05</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Table Size (L x W) (In.)</div>
</div>
</td>
<td>
<div>
<div align="center">32-1/4 x 24</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Table Support</div>
</div>
</td>
<td>
<div>
<div align="center">2 Column</div>
</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Column Diameter (In.)</div></td>
<td><div align="center">2-1/2</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>
<div align="center">Dust Collection Minimum CFM Required (CFM)</div>
</div>
</td>
<td>
<div>
<div align="center">900</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Dust Port Outside Diameter (In.)</div>
</td>
<td>
<div>5</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Power (HP)</div>
</td>
<td>
<div>7-1/2</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Phase</div>
</td>
<td>
<div>1</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Voltage (V.)</div>
</td>
<td>
<div>230 only</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Recommended Circuit Size (Amps.)</div>
</td>
<td>
<div>50</div>
</td>
</tr>
<tr>
<td width="308" bgcolor="#cccccc">
<div>Net Weight ( lb. )</div>
</td>
<td>
<div>1,300 lbs.</div>
</td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

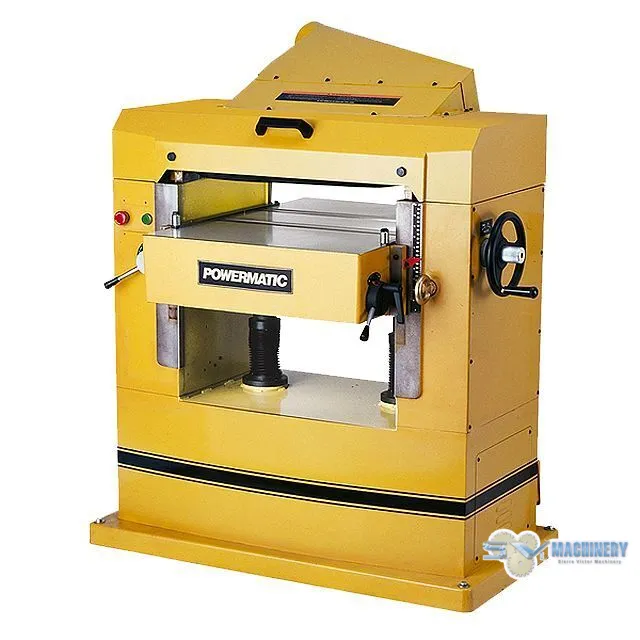

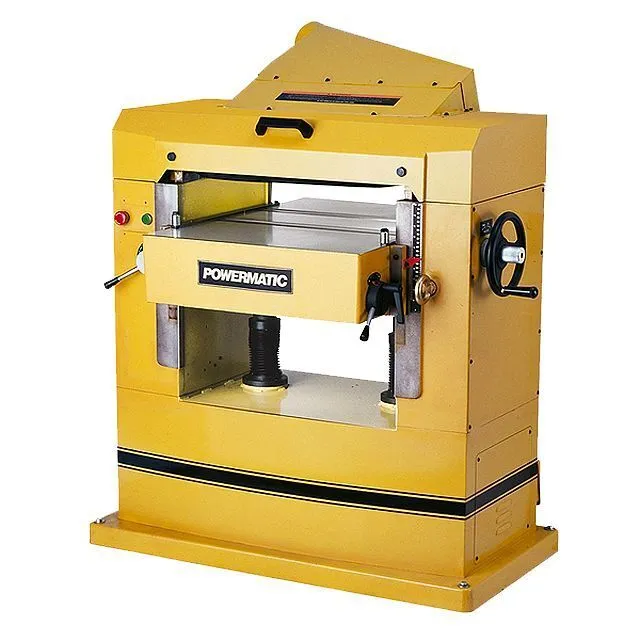

<p>This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5” dust port for easy attachment to any dust collection system. The cutterhead is a helical design with 150 four sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutterheads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1/2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planing requirements.</p>
<p><b>STANDARD EQUIPMENT</b></p>
<ul>
<li>Dust collection port</li>
<li>Adjustable foot pads</li>
<li>Tool kit</li>
</ul>
