<p><b>SPECIFICATIONS:</b></p>
<table class="TableText" border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td>
<div><span style="color: #ffffff;"><strong>STOCK#</strong></span></div>
</td>
<td width="238">
<div><span style="color: #ffffff;"><strong>1791261</strong></span></div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div><strong>MODEL</strong></div>
</td>
<td>
<div><strong>201</strong></div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Type of Cutterhead</div>
</td>
<td>
<div>Straight Knife</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Knife Size (L x W x T)(in.)</div>
</td>
<td>
<div>22-1/8 x 7/8 x 1/8</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Cutterhead Speed (RPM)</div>
</td>
<td>
<div>4,800</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Cutterhead Diameter (In.)</div>
</td>
<td>
<div>3-1/4</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Cuts Per Minute</div>
</td>
<td>
<div>19,200</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Number of Knives</div>
</td>
<td>
<div>4</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Depth of Cut (In.)</div>
</td>
<td>
<div>3/16</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Planing Width (In.)</div>
</td>
<td>
<div>22</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Maximum Planing Thickness (In.)</div>
</td>
<td>
<div>9-1/4</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Minimum Planing Length (In.)</div>
</td>
<td>
<div>10</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Feed Rate (FPM)</div>
</td>
<td>
<div>20/30</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Segmented Infeed Roller Diameter (In.)</div>
</td>
<td>
<div>3</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Outfeed Roller Diameter (In.)</div>
</td>
<td>
<div>3</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Bed Rollers Adjustable from Front</div>
</td>
<td>
<div>2</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Table Size (L x W) (In.)</div>
</td>
<td>
<div>32-1/4 x 24</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Table Support</div>
</td>
<td>
<div>2 Column</div>
</td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc">
<div>Dust Collection Minimum CFM Required (CFM)</div>
</td>
<td>
<div>900</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Dust Port Outside Diameter (In.)</div>
</td>
<td>
<div>5</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Power (HP)</div>
</td>
<td>
<div>7-1/2</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Phase</div>
</td>
<td>
<div>1</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Motor Voltage (V.)</div>
</td>
<td>
<div>230 only</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc">
<div>Recommended Circuit Size (Amps.)</div>
</td>
<td>
<div>50</div>
</td>
</tr>
<tr>
<td width="276" bgcolor="#cccccc">
<div>Net Weight ( lb. )</div>
</td>
<td>
<div>1,300 lbs.</div>
</td>
</tr>
</tbody>
</table>
<p></p>
<p><b>FEATURES:</b></p>

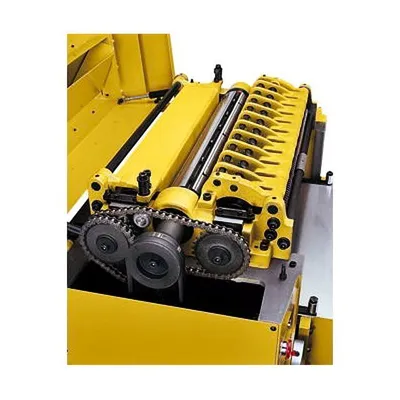

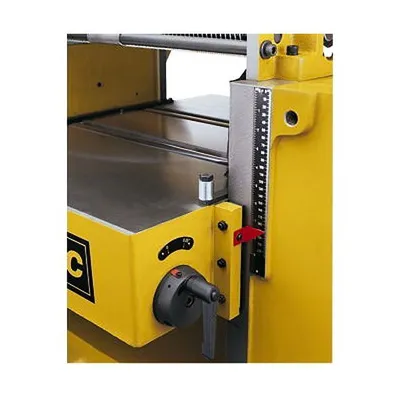

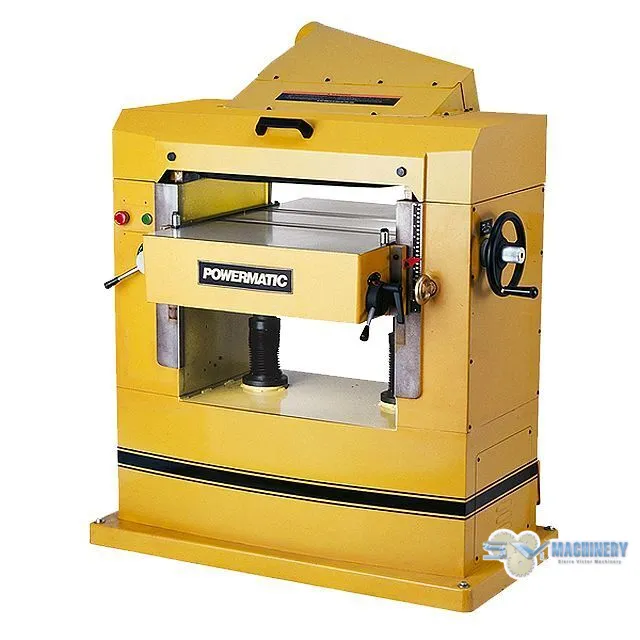

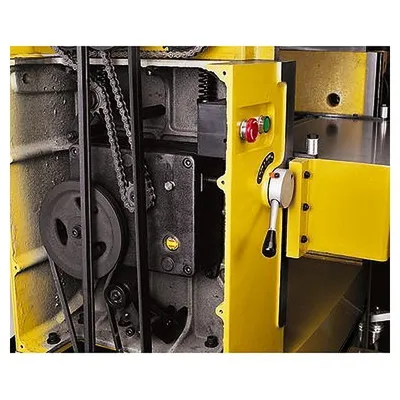

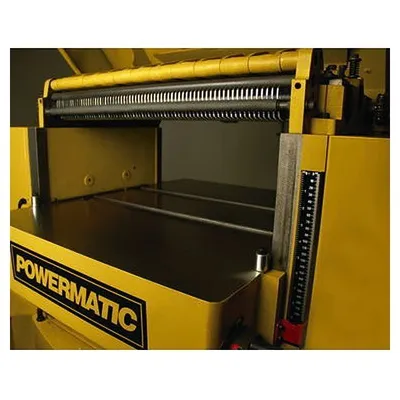

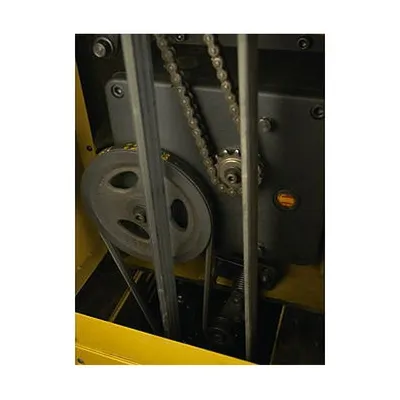

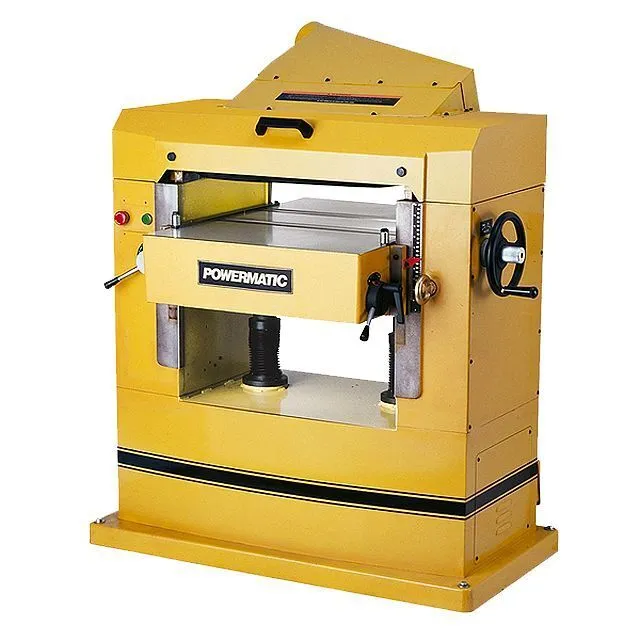

<p>This 1,300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5" dust port for easy attachment to any dust collection system. The cutterhead is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute. The anti-kick back fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel. The model 201 is available with a 7-1 /2 horsepower, 3-phase or single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements.</p>
<p><b>STANDARD EQUIPMENT</b></p>
<ul>
<li>Dust collection chute with 5" port</li>
<li>Adjustable foot pads</li>
<li>Knife setting gauge</li>
<li>Tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches)</li>
</ul>
