Equipment
Saws (Metalworking)
Horizontal Bandsaws Semi Auto

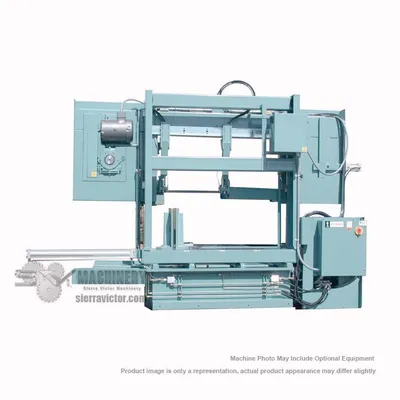

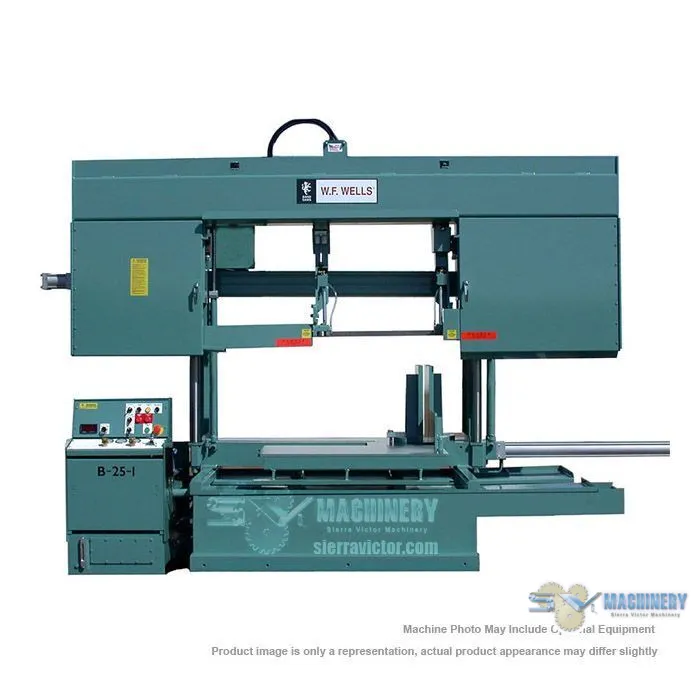

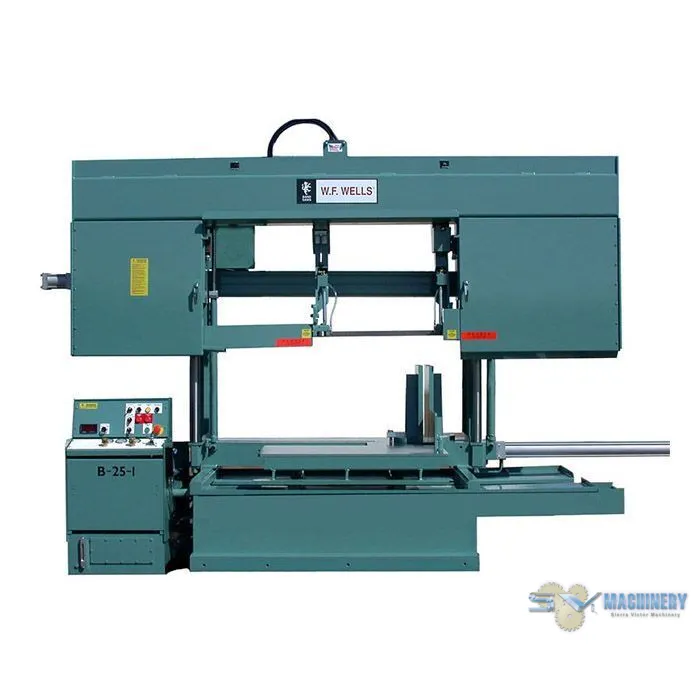

W.F. WELLS B-25-1 25.5 in. Semi-Automatic Twin Post Band Saws

W.F. WELLS B-25-1 25.5 in. Semi-Automatic Twin Post Band Saws

Have one to sell?
386-304-3720
dan@sierravictor.com
$72,400.00 USD

Or as low as $10,860.00 USD/month over 36 months

ConditionNew
Have one to sell?

Overview

Type:
Horizontal Bandsaws Semi Auto
Manufacturer:
WF WELLS
Model:
B-25-1
Condition:
Build To Order
Stock #:
B-25-1
Status:
For Sale

Description

The W.F. WELLS B-25-1 Semi-Automatic Twin Post Band Saw is made in the USA and has a Hydraulic Vise with a 45° Swivel. It has TEFC motors and a Built-In Coolant System.

Round at 90°25.5"647.7 mm
Rectangle at 90°25 High x 40 Wide in.25 High x 40 Wide in.
Round at 45°24"609.6 mm
Rectangle at 45°25 High x 24 Wide in.25 High x 24 Wide in.
Blade Size1-1/4” x .042” x 22’6”1-1/4” x .042” x 22’6”
Blade GuideCarbide Blocks with Roller Back-upCarbide Blocks with Roller Back-up
Blade TensionHydraulicHydraulic
Sawing Force0-750 lbs.0-750 lbs.
Blade Speed60-500 sfpm60-500 sfpm
Blade Motor7-1/2 HP, AC Vector Drive7-1/2 HP, AC Vector Drive
Power208v-60-3Ph ** +208v-60-3Ph ** +
Hydraulic Motor2 HP2 HP
Hydraulic Oil Tank Capacity20 gal75.7 L
Coolant Tank Capacity15 gal56.8 L
Weight Capacity15,000 lb6,803.9 kg
Bandwheel Size26"660.4 mm
Work Height28"711.2 mm
ViseHydraulicHydraulic
Outfeed Table24 x 40 in.24 x 40 in.
Shipping Dimensions55 L x 156 W x 98 H in.55 L x 156 W x 98 H in.
Shipping Weight5,800 lb2,630.8 kg
Dimensions161 L x 52 W x 100 H in.161 L x 52 W x 100 H in.

+ Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010606: 208v-60-3ph
Order Number - 0010607: 230v-60-3ph
Order Number - 0010608: 460v-60-3ph
Order Number - 0010609: 575v-60-3ph

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
0056046: Discharge Worktable 40" W x 56" L with Stock Stop
0056064: Hydraulic Holddown, Saw Vise
0056069: Hydraulic Chip Conveyor
0052707: Blade Break/Stall Switch
0056198: Non-Powered Conveyor, 40" x 5'
0056199: Non-Powered Conveyor, 40" x 10'
0056200: Hydraulic Powered Conveyor, 40" x 10'
High Speed Drive & Guides (1-1/4" Blade) 500-3000 SFPM
