<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center"> Max. Part Width
</div>
</td>
<td width="257" class="TableText">
<div align="center">24 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="257" class="TableText">
<div align="center"> Abrasive Belt Size
</div>
</td>
<td class="TableText">
<div align="center">25 x 60 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">

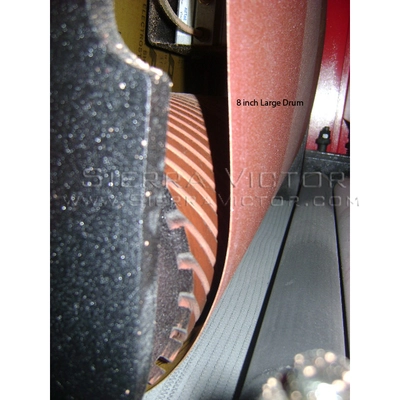

<div align="center"> Contact Roller Size
</div>
</td>
<td class="TableText">
<div align="center">8 in. Dia.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Passline Height
</div>
</td>
<td class="TableText">
<div align="center">31-37 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. Thickness Capacity
</div>
</td>
<td class="TableText">
<div align="center">6-1/8"
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Min. workpiece length
</div>
</td>
<td class="TableText">
<div align="center">Min 8 in., need a fixture for smaller parts
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max. workpiece weight
</div>
</td>
<td class="TableText">
<div align="center"> 375 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Drive Speeds
</div>
</td>
<td class="TableText">
<div align="center">8-40 FPM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Infeed Conveyor Length
</div>
</td>
<td class="TableText">
<div align="center">20 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dust Collector Capacity
</div>
</td>
<td class="TableText">
<div align="center">1,100 CFM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td class="TableText">
<div align="center">10 HP, 3 Phase 45A<br>
Prewired: 230VAC<br>
Optional: 440VAC (25A)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Conveyor Motor
</div>
</td>
<td class="TableText">
<div align="center">1 HP, 230V, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Table Lifting Motor
</div>
</td>
<td class="TableText">
<div align="center">1 HP, 230V, 3-Ph
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Net Weight, approx.
</div>
</td>
<td class="TableText">
<div align="center">2,950 lbs
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Machine Dimensions LxWxH<br>
Shipping Dimensions:
</div>
</td>
<td class="TableText">
<div align="center">55 x 63 x 69 in.<br>
68 x 52 x 78 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

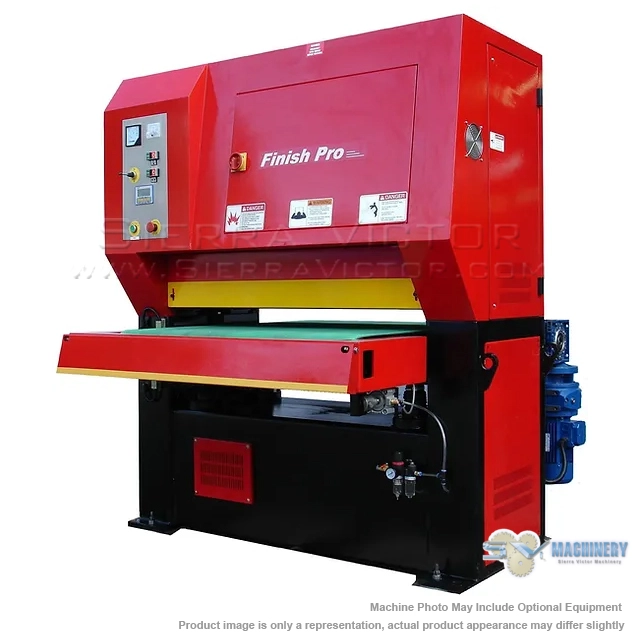

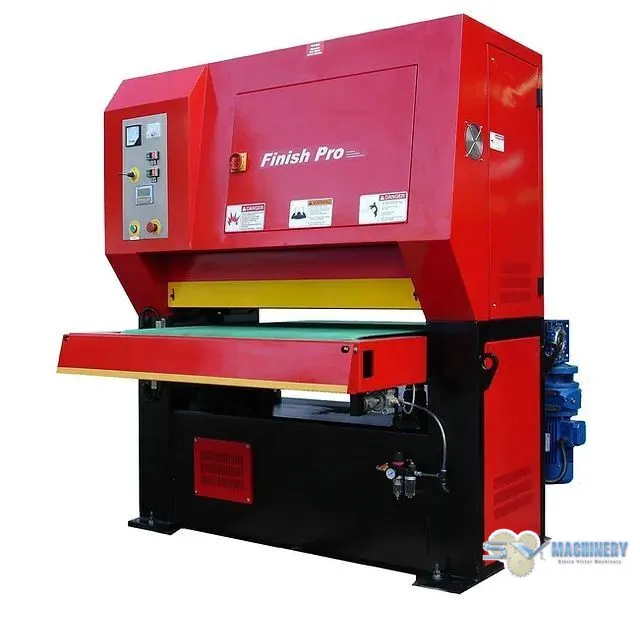

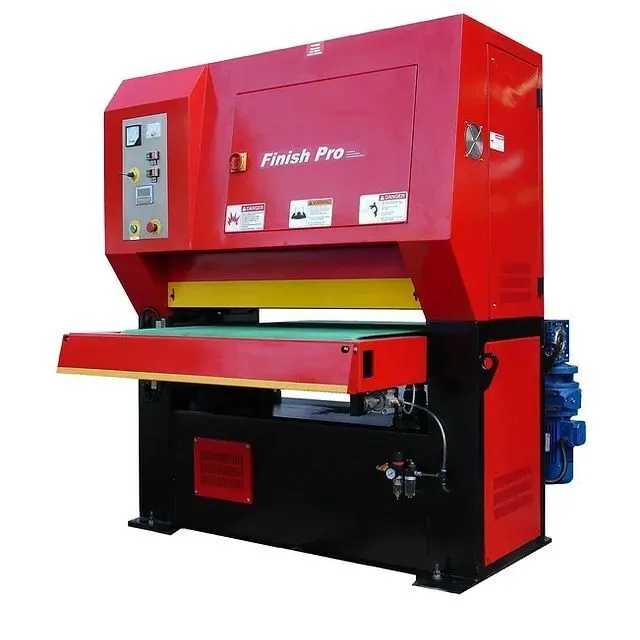

<li>Our 25" Metal Wide Belt Sander are great for deburring and finishing parts in the production and manufacturing industries. Save time with our effortless belt changing system. Avoid shutting down for hours to simply replace your metal wide belt. GMC's Finish Pro metal wide belt sanders are robust, durable, and accurate. Equipped with a digital readout. 10HP, 230V, 3PH, 30 AMPSOur 25" Metal Wide Belt Sander are great for deburring and finishing parts in the production and manufacturing industries. Save time with our effortless belt changing system. Avoid shutting down for hours to simply replace your metal wide belt. GMC's Finish Pro metal wide belt sanders are robust, durable, and accurate. Equipped with a digital readout. 10HP, 230V, 3PH, 30 AMPS.</li>
<li>Motorized Table Lift, with digital readout</li>

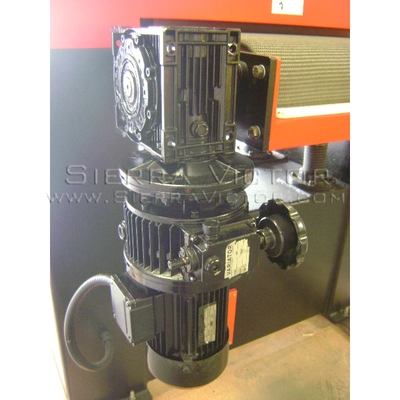

<li>Variable Speed Conveyor</li>
<li>Conveyor Forward & Reverse</li>
<li>Belt Safety Overtravel Switches</li>

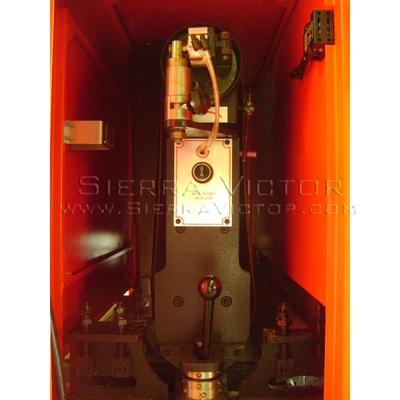

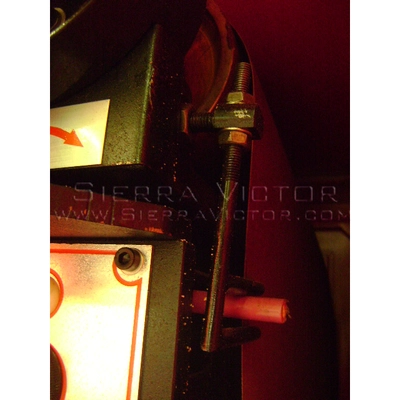

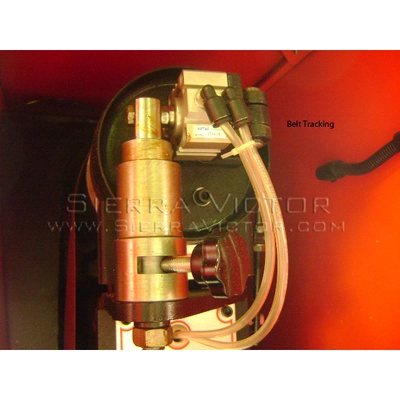

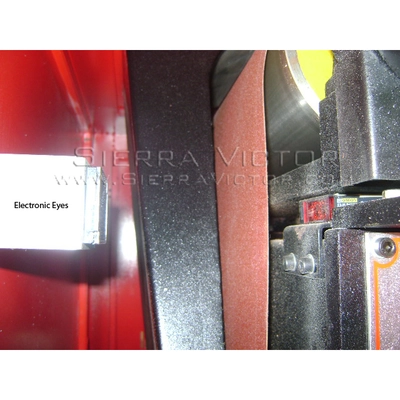

<li>Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts</li>

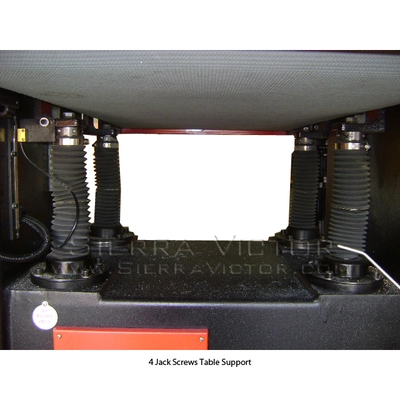

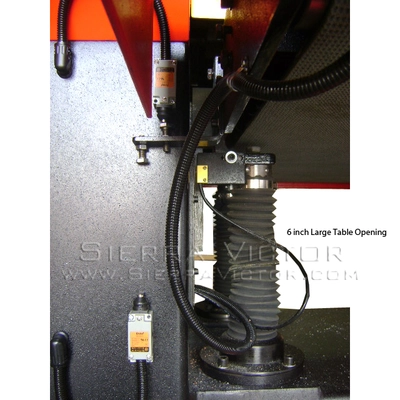

<li>4-Jackscrew Table Support</li>
<li>Double Infeed & Outfeed Pinch Rolls with protective guards</li>
<li>Conveyor Belt Tracking System</li>
<li>Safety System with Disc Brake. Air operated disc brakes to stop sanding head in</li>
<li>3-5 seconds in the even of loss of air pressure or activation of any emergency stop device</li>

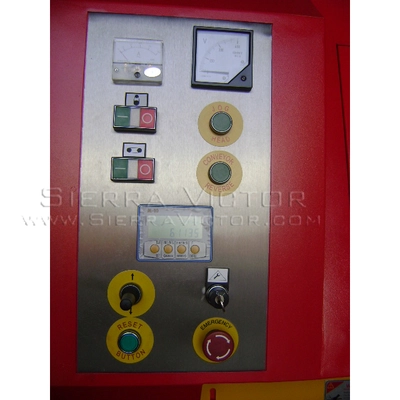

<li>Table Height Digital Readout</li>
<li>Load Meter indicates percentage of full motor loads</li>
<li>Belt change door electrically interlocked for safety purpose</li>

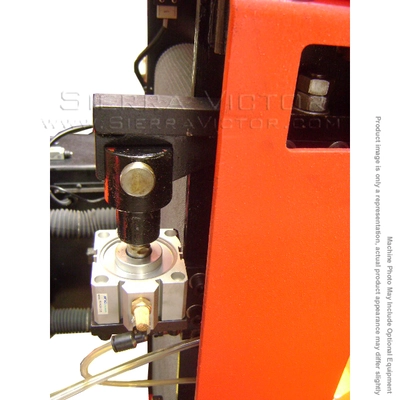

<li>Air tensioning of belt for accurate tensioning & compensation of belt stretch</li>

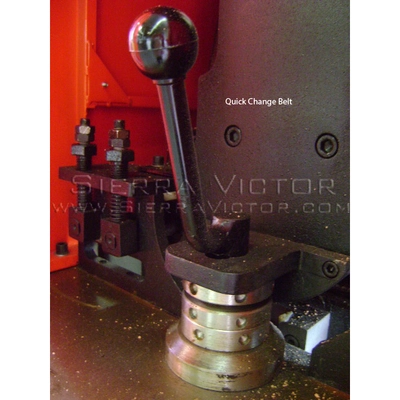

<li>Quick release sanding head support for fast belt change</li>
<li>Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area</li>
<li>Emergency stops from almost any point</li>
<li>Noise level bellows 80 dba</li>
<li>Operation manual, control tags, danger signs, and warning labels in English on machine</li>
<li>208/230, 3-Phase</li>
<li>One year Industrial Warranty for parts</li>
<li>We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void</li>
<li><strong>NOTE:</strong>
<ul>
<li>Prices are for 208-230 VOLTS</li>
<li>Total amps 45 @ 230/3/60</li>
<li>COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI</li>
</ul>
</li>
<li><strong>CAUTION</strong>: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.</li>
<li>*This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.</li>
<li>*Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. <strong><br>
</strong></li>
</ul>
<p><strong>FREQUENTLY ASKED QUESTIONS:</strong>
</p>
<ul>
<li><strong>
What is the minimum size part this machine is capable of handling?
</strong>
<ul>
<li>The minimum length is 8" without fixture. There is no minimum size required with the custom made fixture.</li>
<li>The minimum thickness is 1/16"</li>
</ul>
</li>
<li><strong>Do you sell replacement belt sanding belts?</strong>
<ul>
<li>Unfortunately, we do not stock belts. We may refer you to your favorite industrial supply store such as: Grainger, MSC Industrial, McMaster Carr, etc. </li>
</ul>
</li>
<li><strong>Do you offer on-site training?</strong>
<ul>
<li>We offer on-site training to new customers located within the lower 48 states. </li>
<li>We will answer any questions that you may need addressed and provide you and your team with the knowledge and confidence to properly operate the machine(s).</li>
<li>Please contact our office today for pricing 386-304-3720<br>
</li>
</ul>
</li>
</ul>
<p><b>OPTIONAL ITEMS:</b></p>
<ul>
<li>WET DUST COLLECTORS: use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are no filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.</li>
</ul>
<table cellspacing="0" cellpadding="0" border="1" width="520" class="TableText">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td width="85" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PART #</strong></span>
</div>
</div>
</td>
<td width="354" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>ITEM</strong></span>
</div>
</td>
<td width="73" bgcolor="#333333">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>PRICE</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">WDC-2100
</div>
</td>
<td>
<div align="center">Wet Dust Collector, 5 HP, 2100CFM <br>
for FP-2560 and FP-4075<br>
(it is demo wet collector, all stainless steel)
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$10,950.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">HDDP-FP40
</div>
</td>
<td>
<div align="center">Ducting Package for FP-2560 and FP-4075
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$1,290.00
</div>
</td>
</tr>
<tr>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">ST
</div>
</td>
<td>
<div align="center">Service Engineer for Start-Up and On-site Training for #ST<br>
(plus travel expenses)
</div>
</td>
<td bgcolor="#CCCCCC" class="optional_accessories">
<div align="center">$CALL
</div>
</td>
</tr>
</tbody>
</table>
