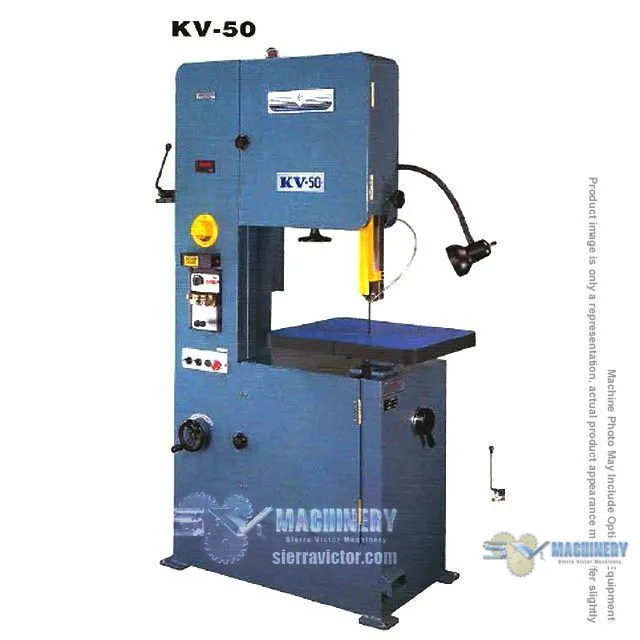

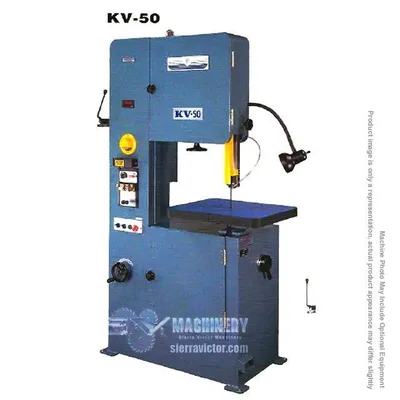

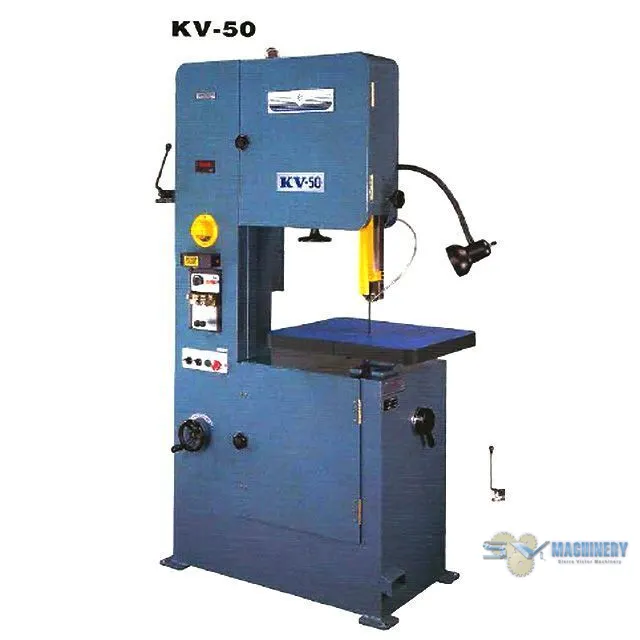

BIRMINGHAM KV-50 20.5 in. Vertical Metal Cutting Band Saw

BIRMINGHAM KV-50 20.5 in. Vertical Metal Cutting Band Saw

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Bandsaws
Manufacturer:
BIRMINGHAM
Model:
KV-50
Condition:
Build To Order
Stock #:
KV-50
Status:
For Sale

Description

The BIRMINGHAM KV-50 Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.

Throat Depth20.5"520.7 mm
Max. Work Height12.375"314.32 mm
Blade Length153 in.153 in.
Blade Width3-16mm3-16mm
Blade Speeds - Low Range20-85m/min (65-280 fpm)20-85m/min (65-280 fpm)
Blade Speeds - High Range120-500m/min (400-1640 fpm)120-500m/min (400-1640 fpm)
Table Size23-1/2 x 19-1/2 in.23-1/2 x 19-1/2 in.
Table inclination (4 ways)15°15°
Butt Welder Capacity1/8 to 5/8 in. (2.4KVA, 3-16mm)1/8 to 5/8 in. (2.4KVA, 3-16mm)
Motor2 HP2 HP
Power220v, 3-phase220v, 3-phase
Net Weight959 lb435 kg
Gross Weight1,124 lb509.8 kg
Dimensions52 x 30 x 85 in.52 x 30 x 85 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts

Optional items - Call for price:
* Rip fence for straight, repeated cuttings easily removable for varied size
* Miter protractor for angular cutting
* Groove table
