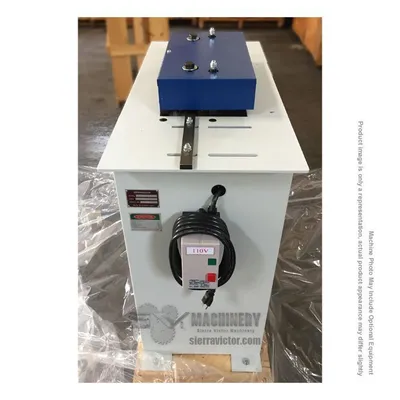

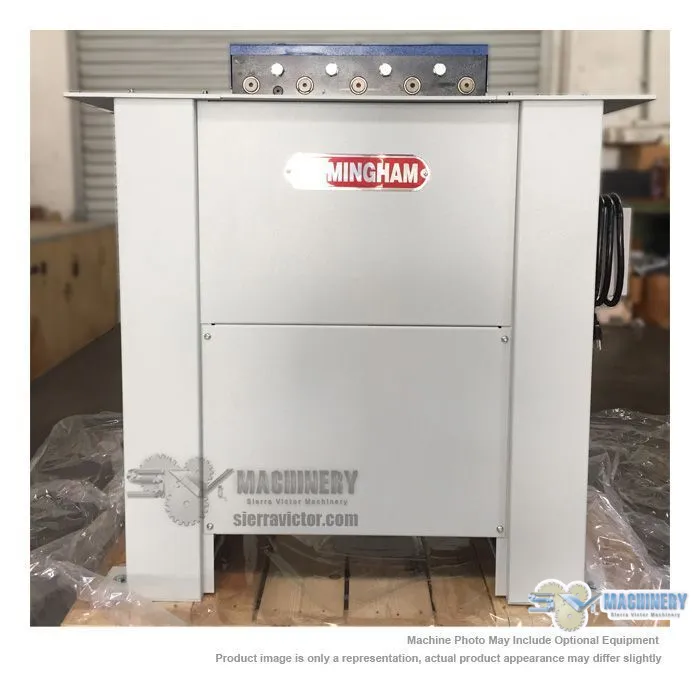

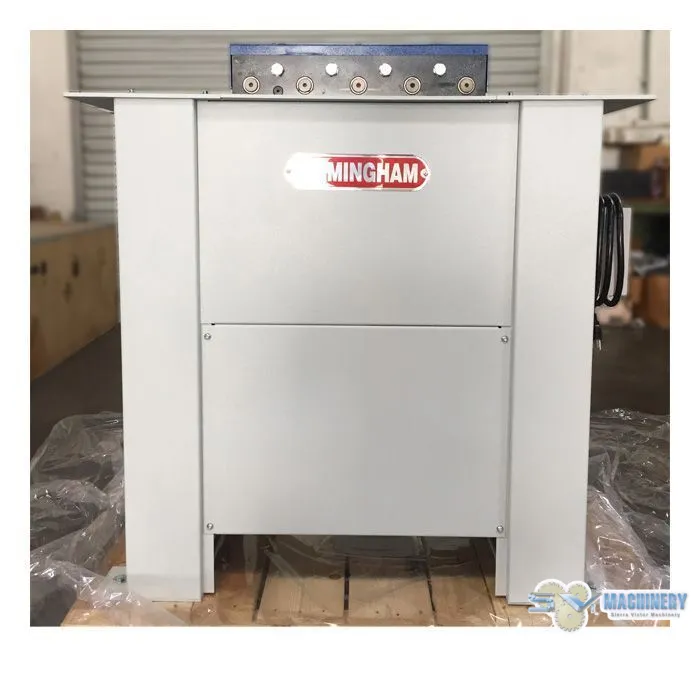

BIRMINGHAM 20-26 ga. Lock Forming Machine L-20

BIRMINGHAM 20-26 ga. Lock Forming Machine L-20

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Pittsburgh/Roll Former Machines
Manufacturer:
BIRMINGHAM
Model:
L-20
Condition:
Build To Order
Stock #:
L-20
Status:
For Sale

Description

The BIRMINGHAM Lock Forming Machine L-20 has hardened and ground shafts and case hardening steel forming rolls. Machine cut gear and needle type roller bearing throughout.

Capacity20 to 26 Ga. Use approximately 1" of material20 to 26 Ga. Use approximately 1" of material
Depth of Pocket5/16" width of hammer-over edge adjustable up to 3/8"5/16" width of hammer-over edge adjustable up to 3/8"
Power1 hp0.7 kW
Electical110v, 1-Phase110v, 1-Phase
Feeding Speed25 feed per minute25 feed per minute
DriveV-beltV-belt
StandARC welded steel. Heavy top plate.ARC welded steel. Heavy top plate.
Dimensions36 x 16.5 x 36.5 in.36 x 16.5 x 36.5 in.
Weight320 lbs.320 lbs.

*Prices Valid on In Stock Machines Only

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
