<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr class="Title_white" bgcolor="#333333">
<td class="TableText" width="59">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>SKU</strong></span>
</div>
</td>
<td class="TableText" width="59">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>Ship WT. (lbs.)</strong></span>
</div>
</td>
<td class="TableText" width="44">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>HZ / HP</strong></span>
</div>
</td>
<td class="TableText" width="66">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>Disc RPM</strong></span>
</div>
</td>
<td class="TableText" width="68">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>Variable Disc RPM</strong></span>
</div>
</td>
<td class="TableText" width="58">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>FWD/REV Switch</strong></span>
</div>
</td>
<td class="TableText" width="42">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>Disc Brake</strong></span>
</div>
</td>
<td class="TableText" width="43" bgcolor="#333333">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong><span class="Title_white_bold">MAG. Starter</span></strong></span>
</div>
</td>
<td class="TableText" width="61" bgcolor="#333333">
<div class="Title_white_bold" align="center"><span style="color: rgb(255, 255, 255);"><strong>Volt/Phase</strong></span>
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText_bold" bgcolor="#CCCCCC">
<div align="center">23100
</div>
</td>
<td class="TableText" bgcolor="#FFFFFF">
<div align="center">615
</div>
</td>
<td rowspan="2" class="TableText">
<div align="center">60 / 3
</div>
</td>
<td class="TableText">
<div align="center">1,725
</div>
</td>
<td class="TableText">
<div align="center">No
</div>
</td>
<td rowspan="2" class="TableText">
<div align="center">Yes
</div>
</td>
<td rowspan="2" class="TableText">
<div align="center">Yes
</div>
</td>
<td class="TableText">
<div align="center">Yes
</div>
</td>
<td class="TableText">
<div align="center">220/3*
</div>
</td>
</tr>
<tr class="TableText">
<td class="TableText_bold" bgcolor="#CCCCCC">
<div align="center">24103
</div>
</td>
<td class="TableText" bgcolor="#FFFFFF">
<div align="center">645
</div>
</td>
<td class="TableText">
<div align="center">—
</div>
</td>
<td class="TableText">
<div align="center">170-1725
</div>
</td>
<td class="TableText">
<div align="center">N/A
</div>
</td>
<td class="TableText">
<div align="center">220/3
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Limited
</p>
<p>*Includes magnetic starter (NEMA 12) and controls without power cord.
</p>
<ul>
<li><strong>MADE IN USA </strong></li>
<li>All model 20 disc grinders are available with magnetic starter options. The Model 20VB speed controller includes all control and overload features of a standard magnetic starter in addition to the solid state frequency controller and electronic brake.</li>
<li>Three versatile versions available in popular 3 Phase, 60 Hertz electronic options</li>

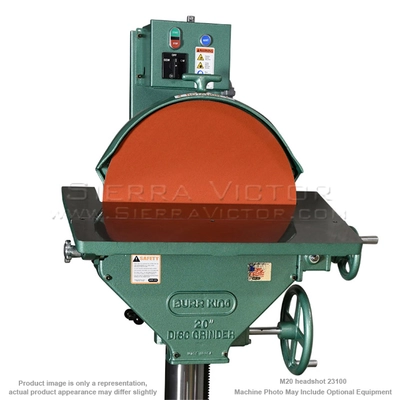

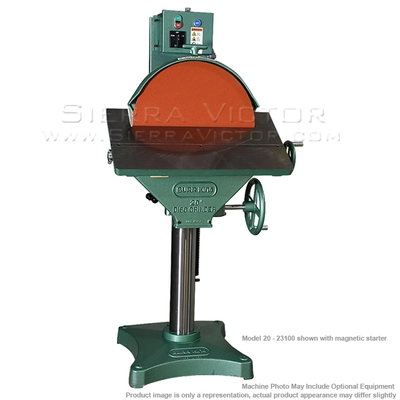

<li><strong>Model 20:</strong> Disc Speed fixed at 1725 RPM</li>
<li><strong>Model 20B:</strong> Fixed speed with a 10 ft. lb. mechanical disc brake</li>

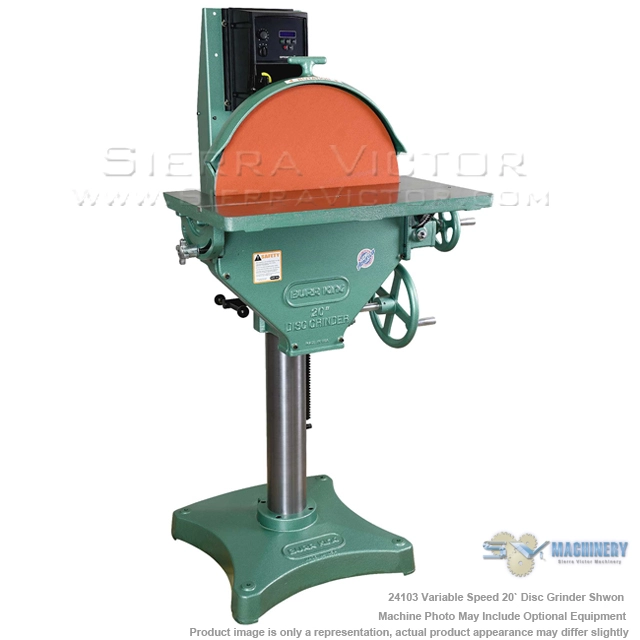

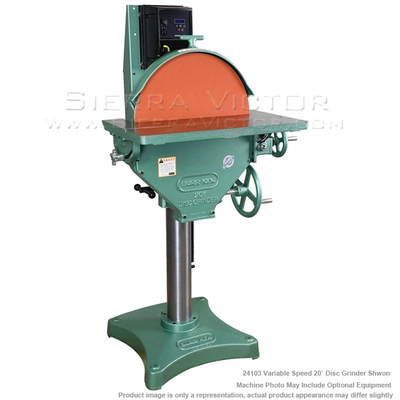

<li><strong>Model 20VB: </strong>Continuously adjustable from 170 to 1725 RPM with an adjustable electronic disc brake.</li>
<li>Precise enough for pattern makers</li>
<li>The ideal tool to shape, flat grind, contour metal, wood and plastic</li>
<li>Rapidly grinds and deburrs castings or fabricated parts</li>
<li>Up to 9000 SFPM disc speed</li>
<li>Reversible disc rotationCast iron 3 horse power motors</li>
<li>Rugged gray, ductile iron and aluminum castings</li>

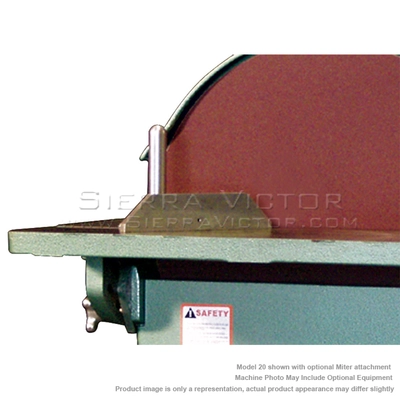

<li>Ready for a miter gauge</li>

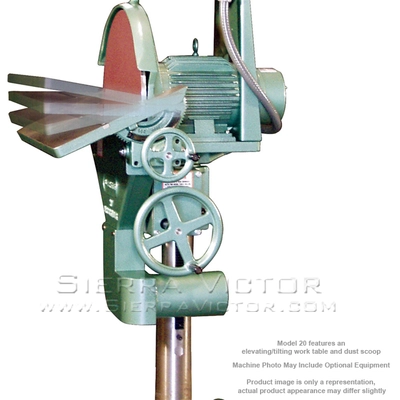

<li>Elevating & Tilting work table</li>
<li>Premium gears, bearings and bushings</li>
<li>Gear driven table lift & tilt</li>
<li>Tilting disc safety guard</li>
<li>Disc face run-out less than .005 TIR</li>
<li>*Includes magnetic starter (NEMA 12) and controls without power cord.</li>
<li><strong>NOTE: ALWAYS WEAR PROTECTIVE EYE, FACE, ARM, LEG AND BODY GEAR WHEN USING ANY GRINDER, POLISHER, BUFFER OR OTHER ROTATING MACHINERY.</strong></li>
