<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td colspan="3" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td width="164" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>KM20-22/15</strong></span>
</div>
</div>
</td>
<td width="162" class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>KM20-22/20</strong></span>
</div>
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Wheel Capacity
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">20 in.
</div>
</td>
</tr>
<tr>
<td width="65" rowspan="4" bgcolor="#cccccc" class="TableText">
<div align="center">Capacity
</div>
</td>
<td width="61" rowspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Solid
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">90°
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">4 in.
</div>
</td>
</tr>
<tr>
<td width="56" bgcolor="#cccccc" class="TableText">
<div align="center">45°
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">3 in.
</div>
</td>
</tr>
<tr>
<td rowspan="2" bgcolor="#cccccc" class="TableText">
<div align="center">Tube
</div>
</td>
<td bgcolor="#cccccc" class="TableText">
<div align="center">90°
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">6 in.
</div>
</td>
</tr>
<tr>
<td width="56" bgcolor="#cccccc" class="TableText">
<div align="center">45°
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">5 in.
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center">15HP SD, 3PH, <br>
220V or 440V (specify)
</div>
</td>
<td class="TableText">
<div align="center">20HP, 3PH, <br>
220V or 440V (specify)
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Spindle arbor
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">1 in.
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Mac hine Weight
</div>
</td>
<td colspan="2" class="TableText">
<div align="center">1,300 lbs.
</div>
</td>
</tr>
<tr>
<td colspan="3" bgcolor="#cccccc" class="TableText">
<div align="center">Shipping Dimensions
</div>
</td>
<td colspan="2" class="TableText">
<div align="center"><span data-preserver-spaces="true">60 D x 60 W x 80 H </span> in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

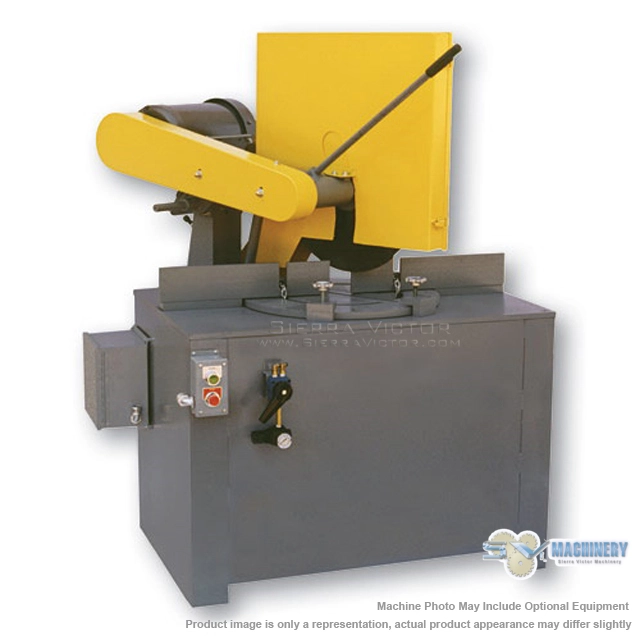

<li>The KM20-22 20 inch industrial mitre chop saw will cut ferrous metal such as carbon steel at 45º left or right fast with the right abrasive cutoff wheel. Material capacities are 4" solids or 6" tube at 90º and 3" solid and 5" tube at 45°.</li>
<li>15 HP 3 PH motor 220 or 440 (specify voltage at the time of the order). 20HP 3PH is also available.</li>
<li>Magnetic starter.</li>
<li>24V at on/off push buttons.</li>
<li>Cast iron saw arm.</li>
<li>Cast iron saw trunnion.</li>
<li>Wheel capacity: 20" <strong>(LESS ABRASIVE CUTOFF WHEEL).</strong></li>
<li>Dual air operated chain vises <strong>(shop air required).</strong></li>
<li>Air gauge with regulator and on/off valve operate chain vises.</li>
<li>Saw head mitres left and right up to 45°.</li>
<li>V-belts.</li>
<li>Table locks.</li>
<li>Adjustable up and down stop</li>
<li>Adjustable backstop</li>
<li>All steel construction</li>
</ul>
