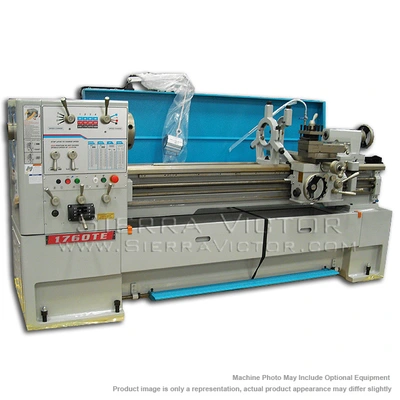

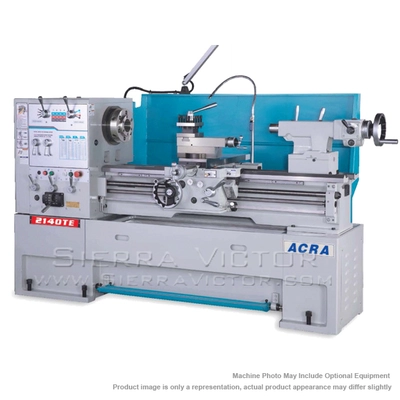

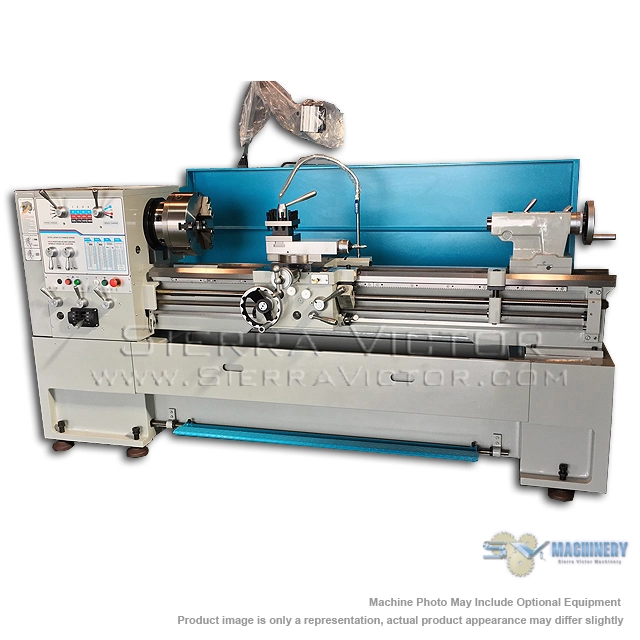

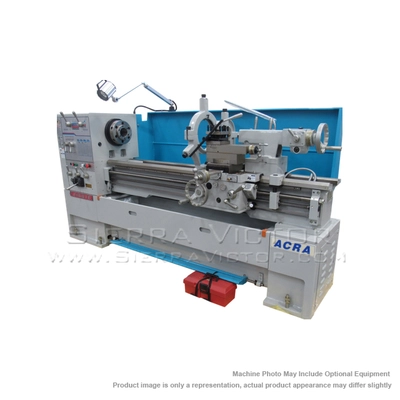

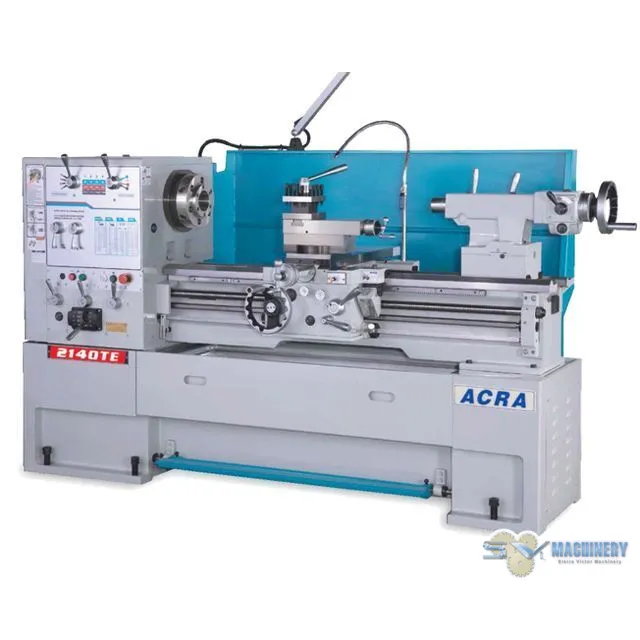

ACRA TE-3 17/21 in. Precision High Speed Engine Lathe w/3-1/8" Large Bore

<p>ACRA 17-21" x 40-90" Precision High Speed Engine Lathe (3-1/8" Large Bore)</p><ul><li>Made in Taiwan - High Quality!</li><li><strong>BED:</strong></li><li>One-piece casting base.</li><li>Meehanite casting, vibration stress relieved.</li><li>Induction hardened and precision ground bed ways, precision hand scraped removable gap.</li><li>Foot brake.</li><li>Turcite B coating between bed and carriage.</li><li><strong>GEARBOX:</strong></li><li>Universal type allowing a wide range of inch, metric, M.P., D.P. threads without change gears.</li><li><strong>HEADSTOCK:</strong></li><li>Housing is vibration-absorbent, deflection-free.</li><li>Gears are hardened & MMG or REISHAUER ground.</li><li><strong>HEAVY DUTY SPINDLE:</strong></li><li>Machined from forged alloy steel, hardened ground & dynamically balanced.</li><li>Three point support by high grade precision, machine tool taper roller & ball bearings.</li><li><strong>APRON:</strong></li><li>RIH or LJH wheel can be available on request.</li><li>Integrated automatic control for longitudinal & cross feeds, forward & reverse feeds.</li><li><strong>CARRIAGE AND SLIDE:</strong></li><li>Anti-Float design backlash eliminator fitted in cross slide nut.</li><li>Safety clutch at feed shaft.</li><li>One shot lubrication in carriage & top slide.</li><li>Dual dials supply inch system screw.</li><li>Metric dial supply metric system only.</li><li><strong>SAFETY FEATURES:</strong></li><li>Nylon safety gears in end train.</li><li>Shear pin in leadscrew.</li></ul><p><strong>STANDARD EQUIPMENT: 17" LATHE</strong></p><ul><li>10" 3-Jaw Chuck</li><li>12" 4-Jaw Chuck</li><li>Steady Rest w/Ball Bearing</li><li>Follow Rest w/Bronze Tip</li><li>Chuck Guard</li><li>Halogen Light</li><li>Full Length Splash Guard</li><li>Dead Center MT.5 made of carbon steel</li><li>Dead Center MT.4 with carbide tip</li><li>Spindle center sleeve Ø85mm Taper 1/19.18 x MT.5</li><li>Level pads 6pcs</li><li>Tool set and box</li><li>Operation manual and parts list</li></ul><p><strong>STANDARD EQUIPMENT: 21" LATHE</strong></p><ul><li>12" 3-Jaw Chuck</li><li>16" 4-Jaw Chuck</li><li>Steady Rest w/Ball Bearing</li><li>Follow Rest w/Bronze Tip</li><li>Chuck Guard</li><li>Halogen Light</li><li>Full Length Splash Guard</li><li>Dead Center MT.5 made of carbon steel</li><li>Dead Center MT.4 with carbide tip</li><li>Spindle center sleeve Ø85mm Taper 1/19.18 x MT.5</li><li>Level pads 6pcs</li><li>Tool set and box</li><li>Operation manual and parts list</li></ul><div>ITEM: 17-21" x 40-90" Precision High Speed Engine Lathe (3-1/8" Large Bore)</div><div>MANUFACTURER: ACRA</div><div>MODEL: 1740TE-3 / 1760TE-3 / 2140TE-3 / 2160TE-3 / 2190TE-3</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: ACRA TE-3 - ENTER MODEL# %0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
