<p><b>SPECIFICATIONS:</b></p>
<table class="TableText" border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr class="Title_white_bold" bgcolor="#333333">
<td width="273"><div>
<div>
<div align="center"><span style="color: #ffffff;"><strong>STOCK#</strong></span></div>
</div>
</div></td>
<td width="241"><div>
<div align="center"><span style="color: #ffffff;"><strong>1791250</strong></span></div>
</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div>
<div>
<div align="center"><strong>MODEL</strong></div>
</div>
</div></td>
<td><div>
<div align="center"><strong>1632</strong></div>
</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Maximum Board Width (In.)</div></td>
<td><div align="center">16 (32)</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Maximum Board Thickness (In.)</div></td>
<td><div align="center">5</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Minimum Board Length (In.)</div></td>
<td><div align="center">13-3/4</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Feed Rate (FPM)</div></td>
<td><div align="center">15/32.5</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Sanding Belt Speed (FPM)</div></td>
<td><div align="center">2,200</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Sanding Belt Size (In.)</div></td>
<td><div align="center">17 x 54</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Air Required</div></td>
<td><div align="center">Yes</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Collection Minimum CFM Required (CFM)</div></td>
<td><div align="center">800</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Dust Port Outside Diameter (In.)</div></td>
<td><div align="center">4</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Feed Motor Power (HP)</div></td>
<td><div align="center">1/4</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Power (HP)</div></td>
<td><div align="center">5</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Phase</div></td>
<td><div align="center">1</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Motor Voltage (V.)</div></td>
<td><div align="center">230 only</div></td>
</tr>
<tr class="TableText">
<td bgcolor="#cccccc"><div align="center">Recommended Circuit Size (Amps.)</div></td>
<td><div align="center">40</div></td>
</tr>
</tbody>
</table>
<p><b><br>FEATURES:</b></p>

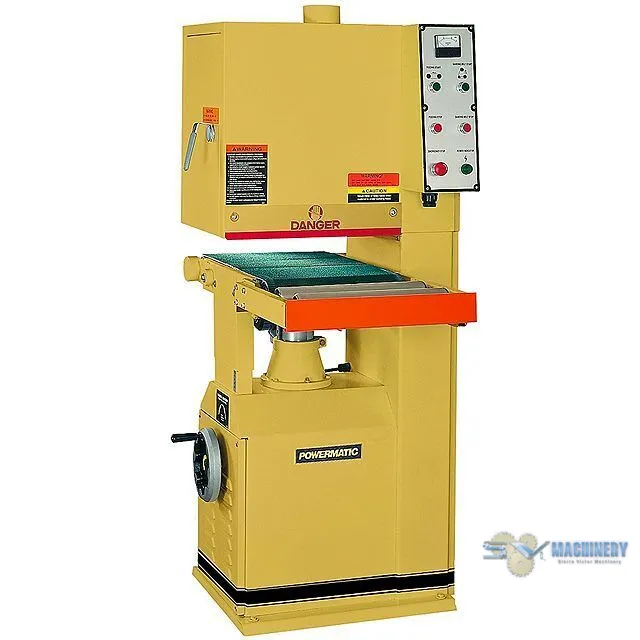

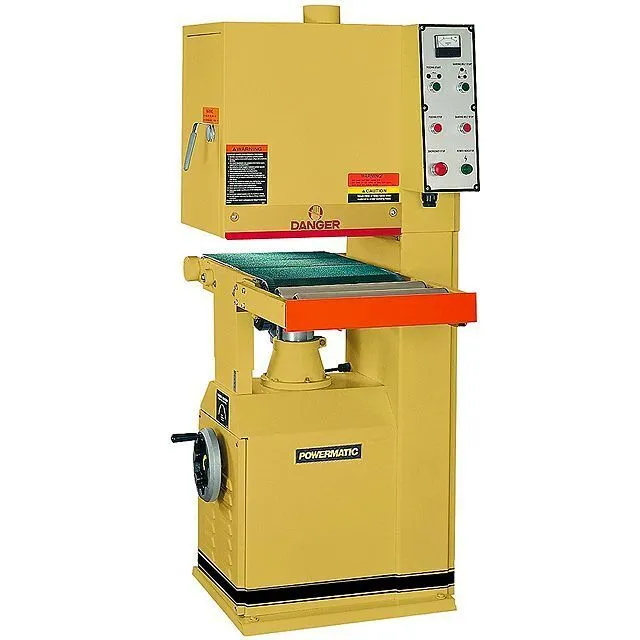

<p>The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.</p>
<p><b>STANDARD EQUIPMENT:</b></p>
<ul>
<li>5HP motor</li>
<li>Emergency rail stop</li>
<li>Emergency stop button</li>
<li>Dust collection port</li>
<li>17" x 54" sanding belt</li>
</ul>
