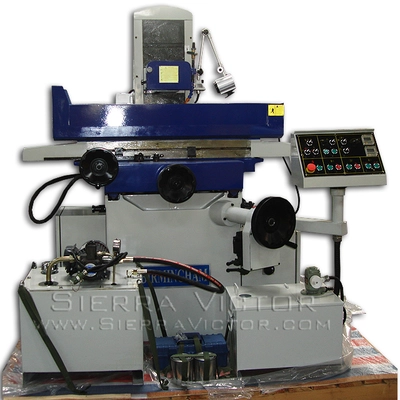

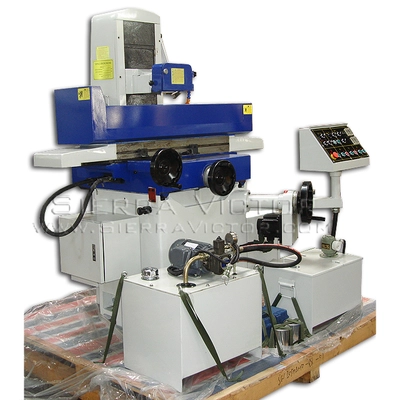

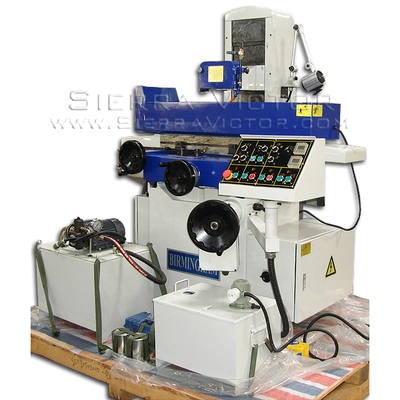

<p>BIRMINGHAM 16" x 32" Precision 3-Axis Auto Surface Grinder WSG-1632AHD</p><ul><li>Precision 3-Axis Auto, Surface Grinder with Chuck, Coolant</li><li>AHD means: Auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.</li><li><strong>COLUMN:</strong> Enlarged, Double wall, Strong ribbed column, especially suitable for heavy duty grinding</li><li><strong>CONSTRUCTION:</strong> Construction of table, saddle and base is casted with high grade casting iron, strongly ribbed.</li><li><strong>SPINDLE:</strong> Enlarged spindle set is supported by 4 pieces of preloaded precision angular contact ball bearings for heavy duty</li><li><strong>SLIDEWAYS:</strong> Vertical, cross (double vees) and longitudinal (one vee & one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy</li><li><strong>AUTOMATIC CONTINUOUS LUBRICATION SYSTEM: </strong>All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws.</li><li><strong>CROSS FEED</strong>: Ball screw for cross travel, powered by AC Motor</li><li><strong>VERTICAL FEED</strong>: Powered by servo motor</li><li><strong>HYDRAULIC TABLE:</strong> Table speed ranges 5-25m/min. with rack and pinion table drive for hand operation</li><li><strong>PROXIMITY SWITCH:</strong> Provide built-in-type (hidden) proximity switch, features safe and easy operation</li><li><strong>TABLE SPEED CONTROL</strong>: Presettable hydraulic table speed control allows operator to pre set speed rate, enable to get same speed rate when engaging hydraulic table everytime.</li><li><strong>HAND WHEELS</strong>: Zero-setting slip rings with vernier on vertical hand wheel and vernier on crossfeed hand wheel.</li></ul><p><strong>STANDARD EQUIPMENT:</strong></p><ul><li>Grinding Wheel</li><li>Grinding Wheel Flange</li><li>Wheel Balance Stand</li><li>Wheel Balance Arbor</li><li>Diamond Wheel Dresser</li><li>Wheel Flange Extractor</li><li>Working Light System</li><li>Lubrication System</li><li>Coolant System</li><li>Full Length Splash Guard</li></ul><div>ITEM: 16" x 32" Precision 3-Axis Auto Surface Grinder</div><div>MANUFACTURER: BIRMINGHAM</div><div>MODEL: WSG-1632AHD</div><div><a class="eMAIL" href="mailto:dan@sierravictor.com?subject=Freight Quote and Availability Request from Website&body=Please Enter Your: %0A%0ANAME................:%0ACOMPANY........:%0AADDRESS..........:%0AZIP CODE..........:%0ATELEPHONE #..:%0A%0A%0ATHE INFORMATION BELOW WILL BE COMPLETED by SIERRA VICTOR%0A%0A %0A%0AItem/Model: BIRMINGHAM WSG-1632AHD%0A%0AFreight Price is:%0A%0AAvailability is:%0A"><span class="eMAIL"><br> CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY</span></a></div>
