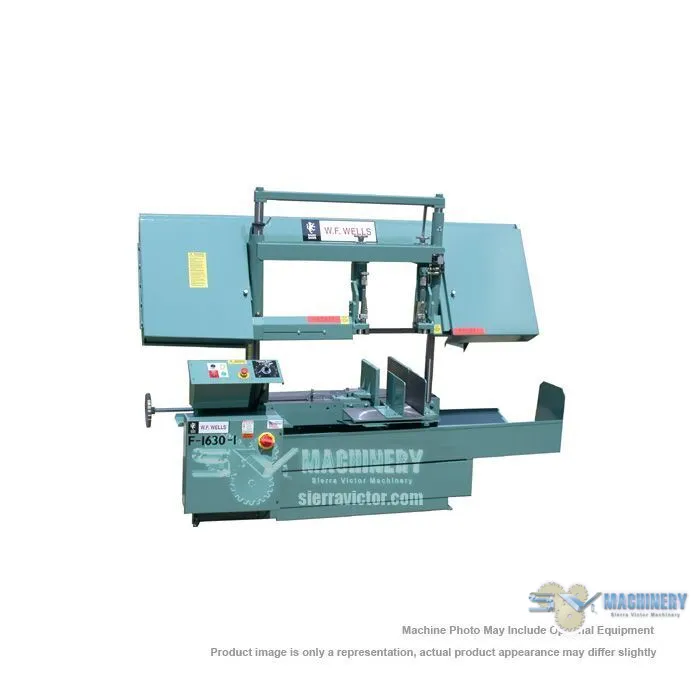

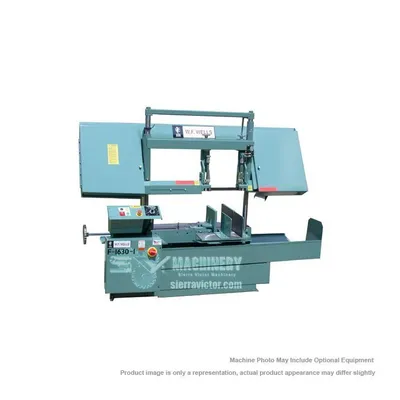

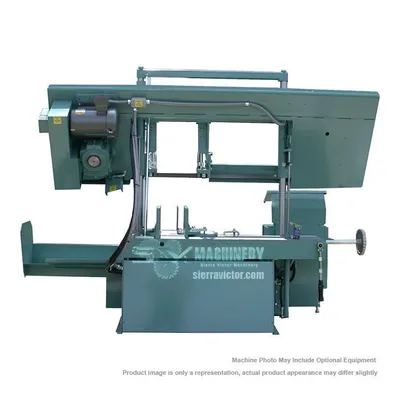

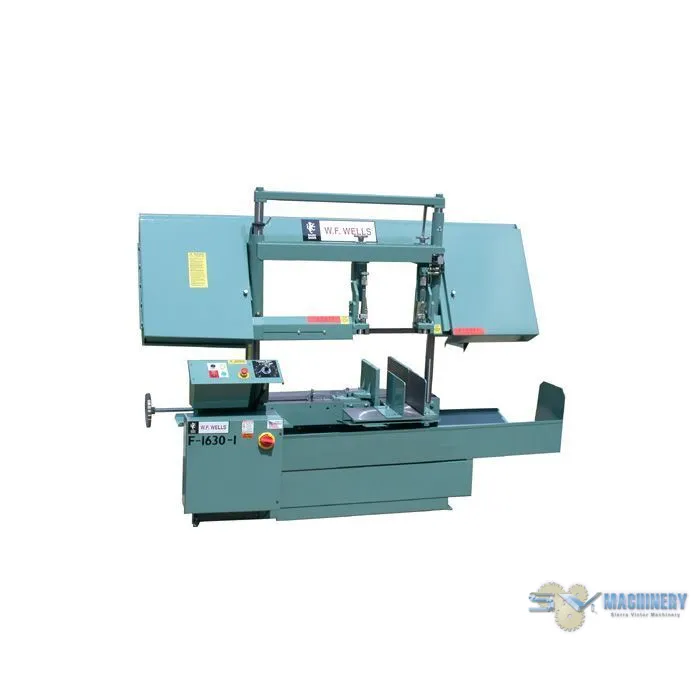

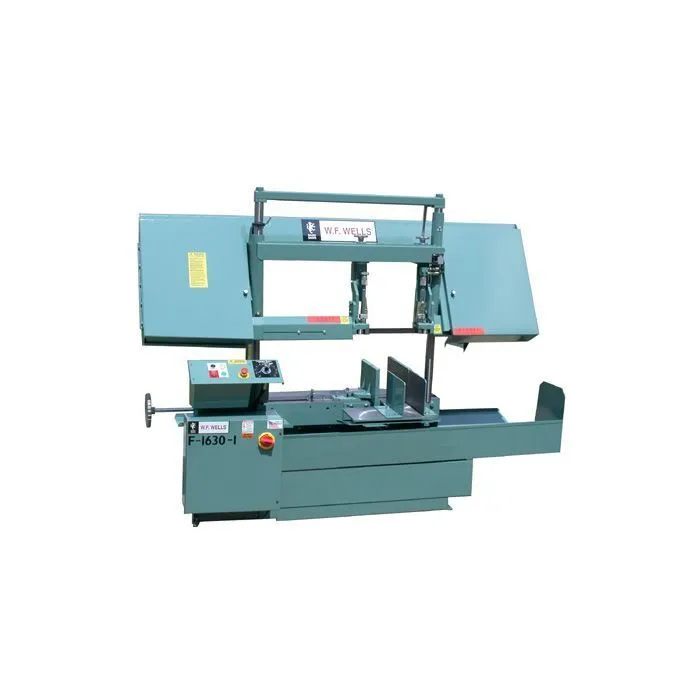

W.F. WELLS F-1630-1 16 in. Horizontal Cut Off Bandsaw

W.F. WELLS F-1630-1 16 in. Horizontal Cut Off Bandsaw

Have one to sell?
386-304-3720
dan@sierravictor.com
$35,350.00 USD

Or as low as $5,302.50 USD/month over 36 months

ConditionNew
Have one to sell?

Overview

Type:
Horizontal Bandsaws Semi Auto
Manufacturer:
WF WELLS
Model:
F-1630-1
Condition:
Build To Order
Stock #:
F-1630-1
Status:
For Sale

Description

The W.F. WELLS F-1630-1 Horizontal Cut Off Bandsaw is Semi-automatic Operation and has Manual Vise Operation. It also as a Built-in Coolant System, 45° Swiveling Vise and TEFC Motors. Made in the USA.

Round at 90°16"406.4 mm
Rectangle at 90°16 High x 30 Wide in.16 High x 30 Wide in.
Round at 45°13"330.2 mm
Rectangle at 45°16 High X 13 Wide in.16 High X 13 Wide in.
Blade Size1-1/4” x .042” x 16' 8"1-1/4” x .042” x 16' 8"
Blade GuideRollers and Carbide Side BlocksRollers and Carbide Side Blocks
Blade TensionManual with IndicatorManual with Indicator
Sawing Force30-120 lbs.30-120 lbs.
Sawing FeedVariable, HydraulicVariable, Hydraulic
Blade Speed60-500 sfpm60-500 sfpm
Blade Motor7-1/2 HP, AC Vector Drive7-1/2 HP, AC Vector Drive
Power208v-60-3ph + **208v-60-3ph + **
Hydraulic Motor1/3 HP1/3 HP
Hydraulic Oil Tank Capacity0.8 gal2.8 L
Coolant Motor1515
Weight Capacity5,000 lb2,268 kg
Bandwheel Size20"508 mm
Work Height26"660.4 mm
ViseManual, 8-1/2 in.Manual, 8-1/2 in.
Shipping Weight2,500 lb1,134 kg
Dimensions118 L x 52 W x 88 H in.118 L x 52 W x 88 H in.

+Wired to NFPA 79 Machine Tool Standards
** Please Specify Voltage:
Order Number - 0010573: 208v-60-3ph
Order Number - 0010574: 230v-60-3ph
Order Number - 0010575: 460v-60-3ph
Order Number - 0010576: 575v-60-3ph (5 HP)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional items - Call for price:
0056704: Automatic Length Stop Assembly
0056025: Discharge Worktable, 20" W x 48" L with Stock Stop
Discharge Worktable, 30" W x 48" L with Stock Stop
0052016: Work Light, Wired In
0056026: Air Vise Manual
0056037: Air Holddown
0056043: Blade Break/Stall Switch
0056023: Chip Conveyor, Electric, Auger Style
0056699: High Speed AC Drive (1" Blade) 400-3000 SFPM
Free Standing Roller Stock Conveyors, 6" Centers
0050247: 21" X 5' X 5,000 lbs Cap. Distributed Weight
0050250: 21" X 10' X 10,000 lbs Cap. Distributed Weight
0050258: 31” x 5’ x 5,000 lbs Cap Distributed Weight
0050259: 31” x 10’ x 10,000 lbs Cap Distributed Weight
0056202: 21" x 10' Powered Conveyor, Electric
31” Powered Conveyor
