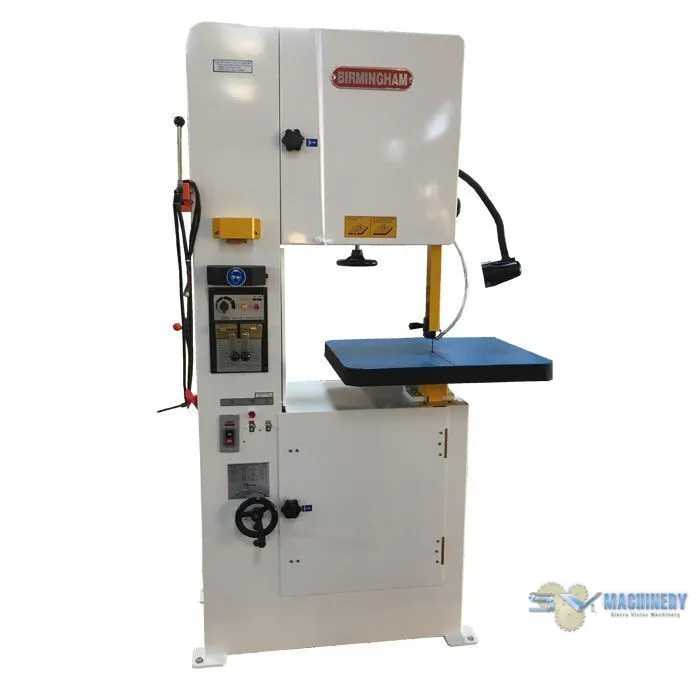

BIRMINGHAM KB-45 17 in. Vertical Metal Cutting Band Saw

BIRMINGHAM KB-45 17 in. Vertical Metal Cutting Band Saw

Have one to sell?
386-304-3720
dan@sierravictor.com
ConditionNew
Have one to sell?

Overview

Type:
Vertical Bandsaws
Manufacturer:
BIRMINGHAM
Model:
KB-45
Condition:
Build To Order
Stock #:
KB-45
Status:
For Sale

Description

The BIRMINGHAM KB-45 17 in. Vertical Metal Cutting Band Saw has a saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. It also has a low voltage working lamp.

Throat Depth17.938"455.61 mm
Max. Work Height10.066"255.68 mm
Blade Length137-3/8 in.137-3/8 in.
Blade Width3-16mm3-16mm
Saw Blade Speeds25-115 (85-375)25-115 (85-375)
Table Size23-1/2 x 19-1/2 in.23-1/2 x 19-1/2 in.
Table inclination (4 ways)15°15°
Butt Welder Capacity1/8 - 5/8 in. (2.4 KVA 3-16mm)1/8 - 5/8 in. (2.4 KVA 3-16mm)
Motor1 HP1 HP
Power110v, 1-phase110v, 1-phase
Net Weight660 lb299.4 kg
Gross Weight772 lb350.2 kg
Dimensions43-11/16 x 26 x 79-1/4 in.43-11/16 x 26 x 79-1/4 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEARS - Parts

Optional Items - Call for price:
* Rip Fence for straight, repeated cuttings easily removable for varied sizes
* Miter protractor for angular cutting
* Electro-magnetic switch and overload protection
* Groove Table
