U.S. INDUSTRIAL USL 1660 CX-KIT 16x60 in. Precision Geared Head Engine Lathe

Have one to sell?

386-304-3720

dan@sierravictor.com

Quantity

US INDUSTRIAL USL 1660 CX-KIT Precision / Gap Bed Lathes | Sierra Victor Industries (1)

US INDUSTRIAL USL 1660 CX-KIT Precision / Gap Bed Lathes | Sierra Victor Industries (2)

US INDUSTRIAL USL 1660 CX-KIT Precision / Gap Bed Lathes | Sierra Victor Industries (3)

US INDUSTRIAL USL 1660 CX-KIT Precision / Gap Bed Lathes | Sierra Victor Industries

New

Have one to sell?

Overview

Type:

Precision / Gap Bed Lathes

Manufacturer:

US INDUSTRIAL

Model:

USL 1660 CX-KIT

Stock #:

USL 1660 CX-KIT

Status:

For Sale

Description

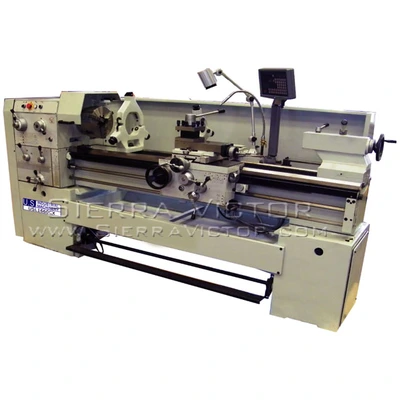

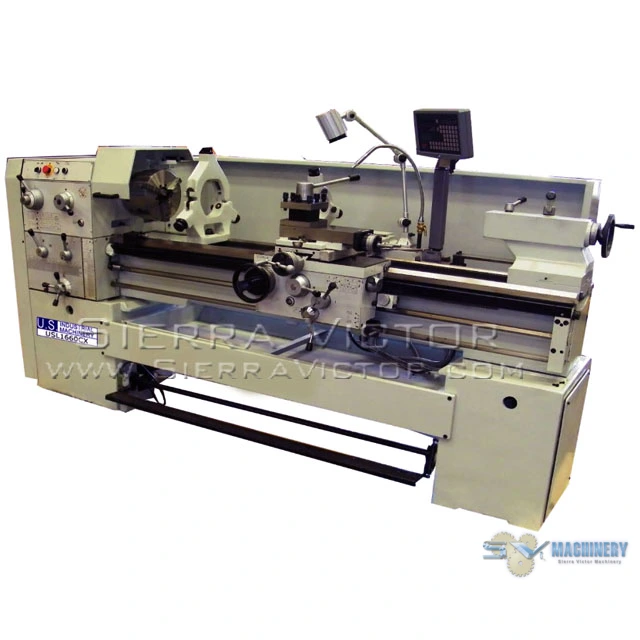

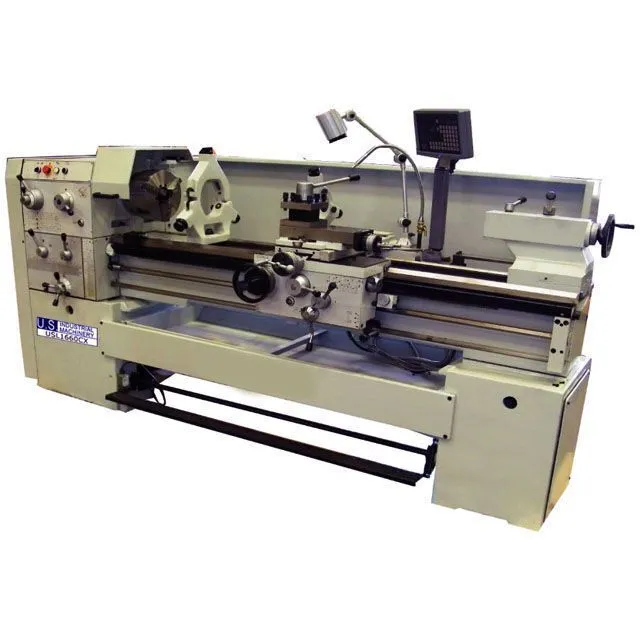

U.S. INDUSTRIAL USL 1660 CX-KIT Precision Geared Head Engine Lathe has a 16" swing and 60" distance between centers. Spindle bore will pass 3”. As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, work lamp, a coolant system and an operator/service manual. Taper attachment and Sino 2-axis digital readout inch/metric installed.

Long Description

SPECIFICATIONS: <table width="520" cellspacing="0" cellpadding="0" border="1"> <tbody style="text-align: center;"> <tr> <td bgcolor="#333333" class="Title_white_bold"><div align="center">MODEL</div></td> <td bgcolor="#333333" class="Title_white_bold"><div align="center">USL 1660CX KIT</div></td> </tr> <tr> <td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Swing over bedways</div></td> <td width="257" class="TableText"><div align="center">16.53"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Swing over cross slide</div></td> <td class="TableText"><div align="center">8.85"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Swing over gap</div></td> <td class="TableText"><div align="center">21.65"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Distance between centers</div></td> <td class="TableText"><div align="center">59.05"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Spindle bore</div></td> <td class="TableText"><div align="center">3.15"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Spindle speeds range - RPM</div></td> <td class="TableText"><div align="center">24 to 1600</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Longitudinal feed range - IPR</div></td> <td class="TableText"><div align="center">.0027 to .150</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Cross feed range - IPR</div></td> <td class="TableText"><div align="center">.00135 to .075</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Metric Threading range</div></td> <td class="TableText"><div align="center">.5 to 28mm</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Inch Threading range -TPI</div></td> <td class="TableText"><div align="center">1 to 56</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Tailstock taper</div></td> <td class="TableText"><div align="center">No. 5 MT</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Spindle power</div></td> <td class="TableText"><div align="center">10 HP</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Power requirement </div></td> <td class="TableText"><div align="center">220/440V, 3ph</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">3-jaw chuck - diameter</div></td> <td class="TableText"><div align="center">10"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">4-jaw chuck - diameter</div></td> <td class="TableText"><div align="center">12"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Faceplate - diameter</div></td> <td class="TableText"><div align="center">15"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">4-way toolpost is included</div></td> <td class="TableText"><div align="center"><1" square</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Crated Dimensions- LxWxH</div></td> <td class="TableText"><div align="center">100" x 48" x 60"</div></td> </tr> <tr> <td bgcolor="#cccccc" class="TableText"><div align="center">Gross Weight</div></td> <td class="TableText"><div align="center">4,400 lbs.</div></td> </tr> </tbody> </table> FEATURES: <ul> <li>This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.</li> <li>As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, work lamp, a coolant system and an operator/service manual</li> <li>Spindle bore will pass 3”.</li> </ul> STANDARD EQUIPMENT: <ul><li>10" 3-Jaw Chuck . Universal, Self-centering</li><li>12" 4-Jaw Chuck independent chuck</li><li>15" Face Plate </li><li>Dog plate</li><li>Full length backsplash</li><li>Flood Coolant system</li><li>Work lamp</li><li>Follow Rest</li><li>Steady Rest </li><li>Thread Dial</li><li>Micrometer carriage stop</li><li>4-way toolpost</li><li>Foot brake with microswitch and brake</li><li>Safety chuck shield</li><li>Taper attachment - installed (USL 1660 CX-KIT)</li><li>Sino 2-axis digital readout inch/metric - installed (USL 1660 CX-KIT)</li><li>Large spindle bore to pass 3"</li><li>Slide out chip pan</li><li>Manual with test certificate</li><li>Inch/Metric reading dials on apron, cross-slide and compound</li></ul> OPTIONAL ITEMS: <ul> <li>QUICK CHANGE TOOL POST OPTION – (Replaces standard four-way tool post) <ul> <li>ONE – NEW QUICK CHANGE TOOLPOST WITH FIVE HOLDERS, FOR FACTORY ONLY. INSTALL ON USL SERIES LATHES</li> <li>Note: We use the wedge style, #333 for our Lathes. This comes with Part off holder, knurling holder, boring bar holder, and two ¾” SS holders </li> <li>This is custom installation and not available after machine ships. Must be installed on lathe at time of order, prior to shipping.</li> <li>Extra holders are $(CALL) each. </li> </ul> </li> <li>Cutting Tool Package for U.S. Industrial Lathes: <ul> <li>This optional cutting tool package is designed to fit our QUICK CHANGE TOOLPOST option. It is not for the standard 4-way toolpost. </li> <li>Tools included below are for: <ul> <li>Rough and medium finishing of the part OD</li> <li>Left- and right-hand tools for working left and right hand shoulders</li> <li>Tools for threading OD and ID</li> <li>Part off tools</li> <li>Fine finish of the part ID </li> <li>Tools for boring the ID and more...</li> </ul> </li> <li>List of carbide cutting tools in KIT for US INDUSTRIAL LATHE: (ISO tools are imports.) </li> <li>Note: Tools for 13”, 16”, 20” and 26” Lathes will be ¾” square shank</li> <li>Note: Customer MUST purchase option, OUR QC Toolpost set for install prior to shipping: <ol> <li>MW LN-R, ¾” square, triangle insert, right hand</li> <li>MW LN-L, ¾” square, triangle insert, left hand.</li> <li>Box of 10 W NMG inserts for above</li> <li>MCLN-R, ¾” square, diamond insert, right hand</li> <li>MCLN-L, ¾” square, diamond insert, left hand</li> <li>Box of 10 CNMG inserts for above</li> <li>MVJN-R, ¾” square, diamond insert, fine finish, right hand</li> <li>MVJN-L, ¾” square, diamond insert, fine finish, left hand </li> <li>Box of 10 VNMG inserts, 1/64” nose radius</li> <li>SER-0750-SET, ¾” square, for threading OD, with inserts (This is a KIT and includes threading inserts.) </li> <li> SIR-0750-SET, ¾” round, for threading ID, with inserts (This is a KIT and includes threading inserts.)</li> <li>SCLCR-SET, Boring bars, .315”, 3/8”, ½”, 5/8”, ¾” bars, with inserts (This is a KIT and includes inserts.) </li> <li>RH-MCLN, Boring bar, 1” diameter, 12” long</li> <li>Use inserts in Item No. 6, CNMG</li> <li>HSSBlade for part-off holder, high speed steel</li> <li>Block, blade and 10 self-lock carbide parting/grooving inserts</li> <li>Arbor and key chuck for tailstock</li> <li>Live center for tailstock</li> <li> Semi-synthetic coolant concentrate, 1 gallon</li> </ol> </li> </ul> </li> </ul>

Specifications

ImperialMetric

Swing Over Bed	16"	406.4 mm
Distance Between Centers	60"	1,524 mm
Spindle Bore	3.15"	80.01 mm
Motor	10 hp	7.5 kW
Phase	3	3
Voltage	220/440V	220/440V
Shipping Dimensions	100" x 48" x 60"	100" x 48" x 60"
Weight	4,400 lbs.	4,400 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

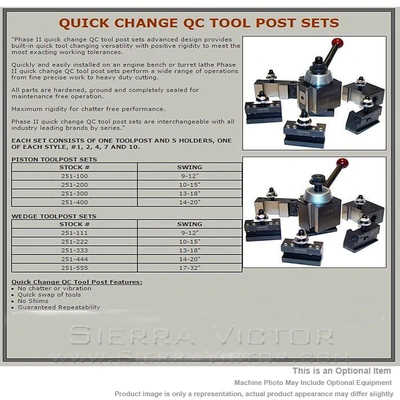

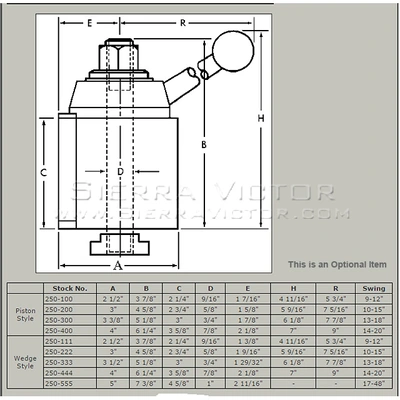

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
