<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. swing over bed </div> </td>
<td width="257" height="14" class="TableText">
<div align="center"><span class="TableText">16-1/16"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. length of workpiece </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">40"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. swing over cross slide </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">10-1/4"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. Swing in gap </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">23-1/4"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Width of Bed </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">10-1/4"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Effective length in gap to spindle </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">8-1/2"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Effective length in gap to chuck jaws </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">3-1/2"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Spindle bore </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">2-1/16" , D1-6 </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Taper of spindle center </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">M.T.# 6 ( with MT6/MT4 sleeve) </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Spindle speeds </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">45-1,800 rpm / 16 steps </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Longitudinal feeds </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">0.0018-0.07 IPR, 42 kinds </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Cross feeds </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">0.0009-0.03 IPR, 42 kinds </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Inch threads </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">70-2 TPI, 45 kinds </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Metric threads </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">0.2-14 mm , 39 kinds </span></div> </td>
</tr>
<tr height="14">
<td height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Module threads </div></td>
<td height="14" class="TableText"><div align="center"><span class="TableText">0.3-3.6 mm, 18 kinds </span></div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Diametral pitch threads </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">8-40 DP , 21 kinds </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. travel of top slide </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">4-1/4"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. travel of cross slide </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">8-1/2"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Spindle length w/o chuck </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">20-1/2"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Leadscrew length X TPI </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">1-1/4” x 4 TPI </span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">

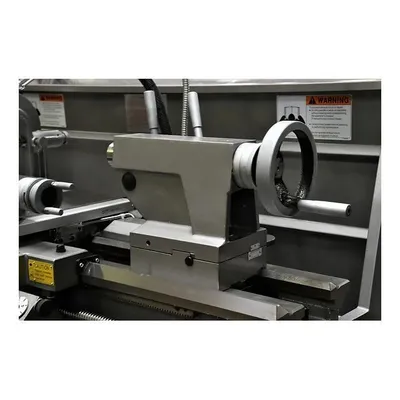

<div align="center"> Diameter of tailstock quill </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">2-1/16"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Max. travel of tailstock quill </div> </td>
<td height="14" class="TableText">
<div align="center"><span class="TableText">5"</span></div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText">
<div align="center"> Taper of tailstock quill center </div> </td>
<td height="14" class="TableText">
<div align="center">M.T. # 4</div> </td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Main motor </div></td>
<td height="14" class="TableText">
<div align="center" class="TableText">
<div align="center">6 HP, 220V only, 3-phase</div>
</div> </td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Amperage draw </div></td>
<td height="14" class="TableText"><div align="center">20 Amp</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Coolant pump motor </div></td>
<td height="14" class="TableText">
<div align="center" class="TableText">
<div align="center">1/8 HP, 220V only, 3-phase </div>
</div> </td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Oil for Headstock / Gear box / Apron </div></td>
<td height="14" class="TableText"><div align="center">#30 weight machine oil, <br>
TEXACO regal R&O/100, 3 Gal.</div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Net weight, approx. </div></td>
<td height="14" class="TableText"><div align="center"><span class="TableText">4,150 lbs </span> </div></td>
</tr>
<tr height="14">
<td width="257" height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Overall dimensions, LxWxH </div></td>
<td height="14" class="TableText"><div align="center"><span class="TableText">79 x 38 x 56 in.</span> </div></td>
</tr>
<tr class="TableText" height="14">
<td height="14" bgcolor="#cccccc" class="TableText"><div align="center"> Shipping Dimensions </div></td>
<td height="14" class="TableText"><div align="center">80 x 36 x 70 in.</div></td>
</tr>
</tbody>
</table>
<p><b>FEATURES:</b></p>
<ul> <li>ISO 9001 certified</li> <li>Large spindle bore 2-1/16”</li> <li>Heavy Duty spindle D1-6</li> <li>One-piece solid cast iron machine base</li> <li>Heavy Duty guideway width 10-1/4”</li> <li>Heavy Duty main motor 6 HP</li> <li>16 spindle speeds from 45-1,800 rpm, <br> speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm</li> <li>45 kinds of inch threads, and 39 kinds of metric threads</li> <li>Threading and feeding rate change without changing gears</li> <li>Spindle is balanced, hardened and precision ground</li> <li>Spindle is supported at 3-point by high precision bearings </li> <li>All gears and shafts are hardened and precision ground</li> <li>Guideways induction hardened and precision ground</li> <li>Automatic lubrication system in headstock and feed box</li> <li><b>Three year parts warranty for this model</b></li> <li><strong><u>DISCLAIMER: </u></strong>Please note this machine<u> is incompatible with the use of a rotary phase converter</u>. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, <u>will automatically void the warranty.</u> It is crucial to understand that any such actions are entirely the responsibility of the buyer.</li> <li>This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. </li> </ul>
<p><strong> STANDARD ACCESSORIES: </strong></p>

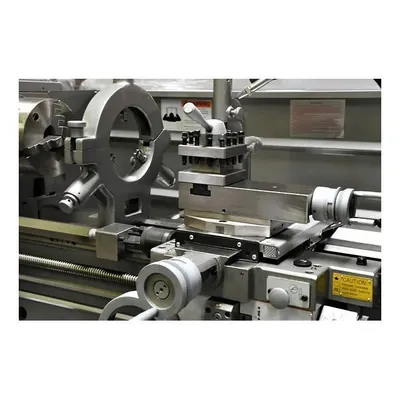

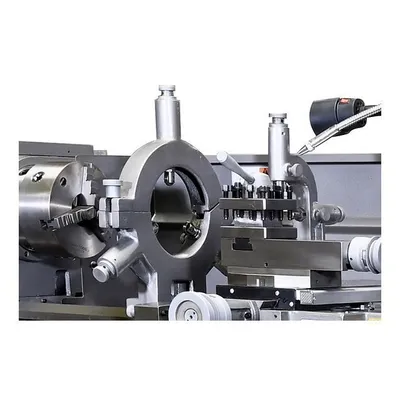

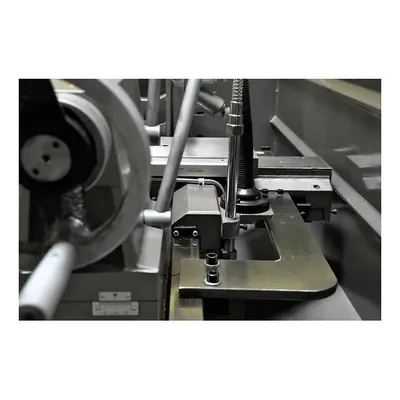

<ul> <li>SINO DRO (installed)</li> <li>Taper turning attachment (installed)</li> <li>8” 3-jaw chuck with one set of reversible jaws</li> <li>10” 4-jaw chuck</li> <li>12” Face plate</li> <li>5 1/2” large steady rest with roller jaws (bearings)</li> <li>Oil pump on Apron for all guideways and leadscrews</li> <li>2” follow rest with roller jaws (bearings)</li> <li>Removeable gap</li> <li>4-way tools post</li> <li>Foot brake</li> <li>Halogen Work light and coolant system</li> <li>Full length splash guard </li> <li>(2) dead centers and (1) reducing sleeve MT6/MT4</li> <li>Thread chasing dial</li> <li>Tool box and leveling pads</li></ul>
