<p><b>SPECIFICATIONS:</b></p>
<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Return Speed</div></td>
<td width="257" class="TableText"><div align="center">.5" / sec.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Maximum Pressure</div></td>
<td class="TableText"><div align="center">3814 psi</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Motor</div></td>
<td width="257" class="TableText"><div align="center">4 hp</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Piston Head Diameter</div></td>
<td class="TableText"><div align="center">5.90"</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Pump Speed</div></td>
<td width="257" class="TableText"><div align="center">1.92 / 7.50 gal/min.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Oil Capacity</div></td>
<td class="TableText"><div align="center">7.92 gal</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Working Speed</div></td>
<td width="257" class="TableText"><div align="center">.090" / sec.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Working Width</div></td>
<td class="TableText"><div align="center">43.3"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Lowering Speed</div></td>
<td class="TableText"><div align="center">.350" / sec.</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Maximum Capacity</div></td>
<td class="TableText"><div align="center">165 tons</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Stroke</div></td>
<td class="TableText"><div align="center">11.8"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Movable</div></td>
<td class="TableText"><div align="center">Yes</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Cylinder Diameter</div></td>
<td width="257" class="TableText"><div align="center">12.75"</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">RPM</div></td>
<td class="TableText"><div align="center">3000</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Power</div></td>
<td class="TableText"><div align="center">220V, 3- Phase</div></td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText"><div align="center">Shipping Weight</div></td>
<td class="TableText"><div align="center">3,465 lbs.</div></td>
</tr>
<tr>
<td width="257" bgcolor="#cccccc" class="TableText"><div align="center">Shipping Dimensions</div></td>
<td width="257" class="TableText"><div align="center">96" x 48 " x 99 "</div></td>
</tr>
</tbody>
</table>
<p><b><br></b><b>FEATURES:</b></p>

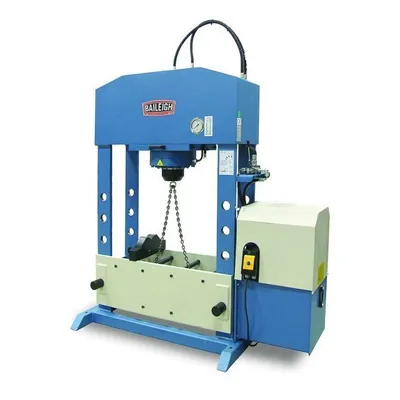

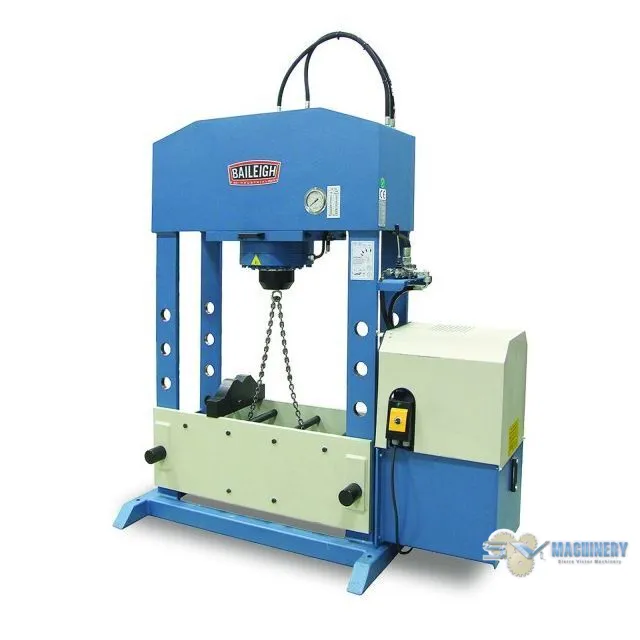

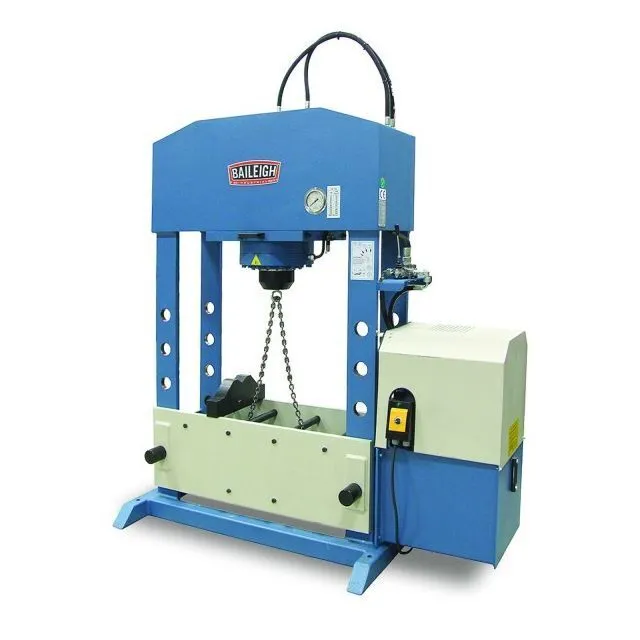

<ul><li>Need a lot of tonnage? Our HSP-176M workshop hydraulic press provides <strong>165 tons of force</strong>. Its <strong>fully-welded .375” steel plate</strong> framework can handle maximum capacity pressure every day.</li><li><strong>43.3”</strong> working width.</li><li><strong>12.75" diameter</strong> cylinder with <strong>11.8” stroke</strong>.</li><li><strong>Industrial-grade</strong> hydraulic system.</li><li><strong>4 hp</strong> motor runs on <strong>220-volt 3-phase</strong> power.</li><li><strong>2 hydraulic speeds</strong>—rapid advance and slower approach—let you choose the right speed for your application.</li><li>You can operate the ram in <strong>automatic (motorized) or manual mode (hand pump)</strong> for even more control.</li><li><strong>Cylinder can move left or right</strong> within the framework, perfect for off-center parts and applications.</li><li><strong>5.90” chrome piston automatically returns</strong> to the top after you’re done pressing.</li><li>Worktable includes <strong>2 sets of supports made from 3” round stock</strong> to keep the press as stable as possible.</li><li>Motorized <strong>table height adjustment</strong>: lifting chains on attach to the ram, so the hydraulic system does all the work. No strain on your back!</li><li>Includes a <strong>set of V-blocks</strong>.<br></li></ul>
