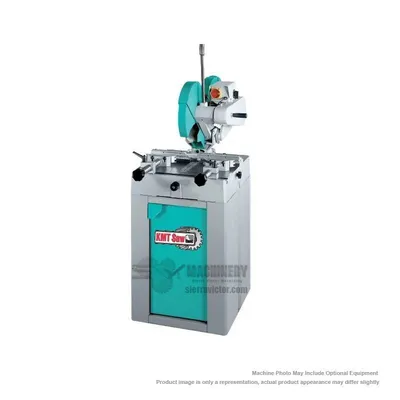

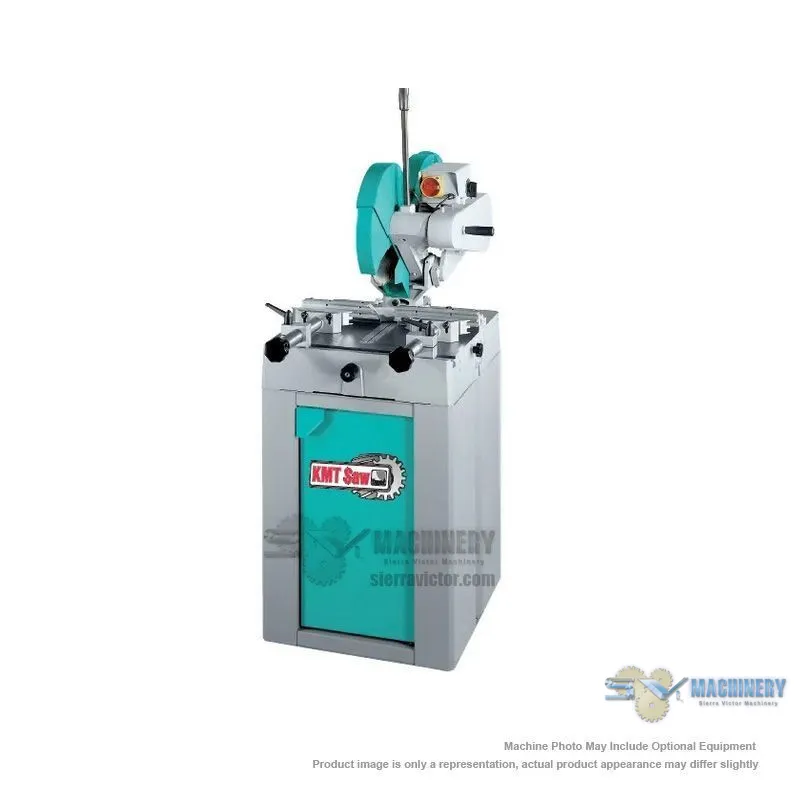

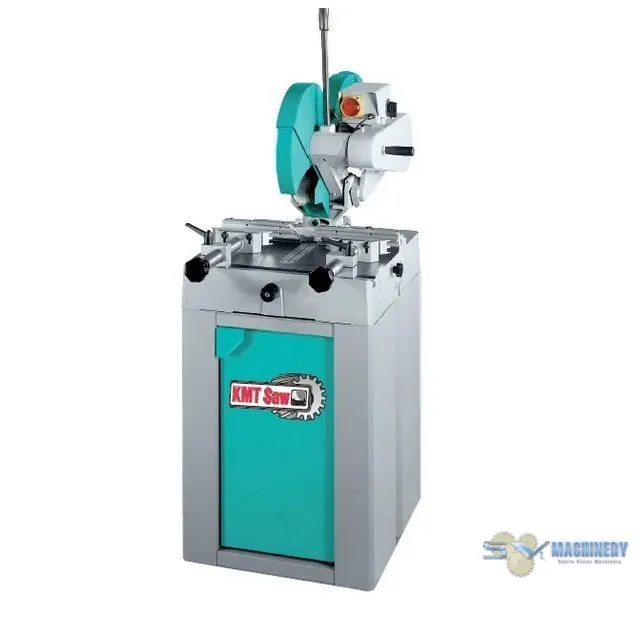

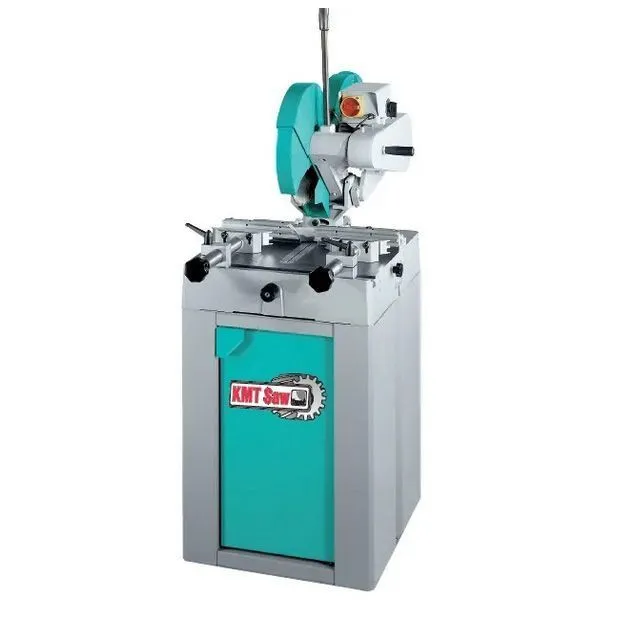

KMT SAW CT350AV 14 in. Manual High Speed Circular Saw

KMT SAW CT350AV 14 in. Manual High Speed Circular Saw

Have one to sell?
386-304-3720
dan@sierravictor.com
$6,800.00 USD
ConditionNew
Have one to sell?

Overview

Type:
Cold Saws Manual
Manufacturer:
KMT SAW
Model:
CT350 AV
Condition:
Build To Order
Stock #:
CT350AV
Status:
For Sale

Description

KMT SAW CT 350 AV Manual High Speed Circular Saw has a 14" saw blade diameter. The CT 350 Series Machines are high speed circular saws for aluminum extrusions and other non-ferrous materials. These machines feature swiveling capability for mitering and swiveling/tilting capability for compound mitering. Model CT 350 AV - Manual sawing operation with two quick clamping air vises.

Max. Blade Diameter14"355.6 mm
Round at 0°4.5 in.4.5 in.
Square at 0°4 in.4 in.
Rectangle at 0°3 x 7.75 in.3 x 7.75 in.
Round at 45° right4.5 in.4.5 in.
Square at 45° right4 in.4 in.
Rectangle at 45° right3 x 5.75 in.3 x 5.75 in.
Round at 45° left4.5 in.4.5 in.
Rectangle at 45° left3 x 5.75 in.3 x 5.75 in.
Round at 45° vert. left2.5 in.2.5 in.
Square at 45° vert. left2.25 in.2.25 in.
Rectangle at 45° vert. left2727
Blade Speeds1,800 and 3,600 RPM (2-speed)1,800 and 3,600 RPM (2-speed)
Power220v/3, 460v/3, **220v/1 (specify)220v/3, 460v/3, **220v/1 (specify)

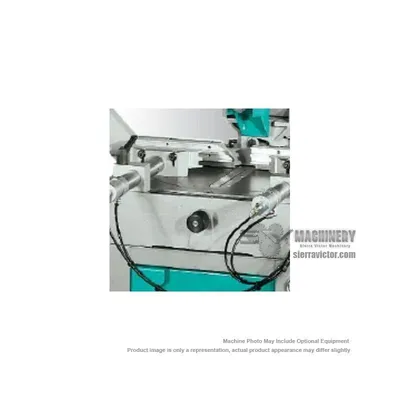

Vise StyleQuick Clamping Air VisesQuick Clamping Air Vises
Max. Vise Opening8"203.2 mm
Work height34.25"869.95 mm
Shipping Weight550 lb249.5 kg
Dimensions32 W x 36 L in.32 W x 36 L in.
Weight550 lbs.550 lbs.

*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
**Additional Charge

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC121: Top Clamp
