<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Cutting Speed
</div>
</td>
<td class="TableText1">
<div align="center">3,000 rpm
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Motor Rate
</div>
</td>
<td class="TableText1" width="257">
<div align="center">5 HP
</div>
</td>
</tr>
<tr>
<td rowspan="6" class="TableText1" width="66" bgcolor="#cccccc">
<div align="center">TUBING
</div>
</td>
<td rowspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">90 deg.
</div>
</td>
<td class="TableText1" width="116" bgcolor="#cccccc">
<div align="center">Round
</div>
</td>
<td class="TableText1">
<div align="center">4-1/2" (114 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Square
</div>
</td>
<td class="TableText1">
<div align="center">4-1/4" x 4-1/4" (108 x 108 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Rectangle
</div>
</td>
<td class="TableText1">
<div align="center">5-1/2" x 4" (140 x 102 mm)
</div>
</td>
</tr>
<tr>
<td rowspan="3" class="TableText1" width="71" bgcolor="#cccccc">
<div align="center">45 deg.
</div>
</td>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Round
</div>
</td>
<td class="TableText1">
<div align="center">4-1/4" (108 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Square
</div>
</td>
<td class="TableText1">
<div align="center">4" x 4" (102 x 102 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Rectangle
</div>
</td>
<td class="TableText1">
<div align="center">4" x 4" (102 x 102 mm)
</div>
</td>
</tr>
<tr>
<td rowspan="4" class="TableText1" bgcolor="#cccccc">
<div align="center">SOLID
</div>
</td>
<td rowspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">90 deg.
</div>
</td>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Round
</div>
</td>
<td class="TableText1">
<div align="center">3" (76 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Square
</div>
</td>
<td class="TableText1">
<div align="center">3" x 3" (76 x 76 mm)
</div>
</td>
</tr>
<tr>
<td rowspan="2" class="TableText1" bgcolor="#cccccc">
<div align="center">45 deg.
</div>
</td>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Round
</div>
</td>
<td class="TableText1">
<div align="center">2-1/2" (64 mm)
</div>
</td>
</tr>
<tr>
<td class="TableText1" bgcolor="#cccccc">
<div align="center">Square
</div>
</td>
<td class="TableText1">
<div align="center">2-1/2" x 2-1/2" (64 x 64 mm)
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Factory Wired
</div>
</td>
<td class="TableText1">
<div align="center">Specify <br \="">
208 3 ph <br \="">
230 3 ph <br \="">
460 3 ph <br \="">
575 3 ph 60 hz
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Maximum Diameter Blade
</div>
</td>
<td class="TableText1">
<div align="center">350 mm (13.8")
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Arbor Bore
</div>
</td>
<td class="TableText1">
<div align="center">1-9/16" (40mm)
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Pin Spacing
</div>
</td>
<td class="TableText1">
<div align="center">4/12/64
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Width
</div>
</td>
<td class="TableText1">
<div align="center">21-7/8"
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Depth
</div>
</td>
<td class="TableText1">
<div align="center">43-1/2"
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Height not including handle
</div>
</td>
<td class="TableText1">
<div align="center">56-1/4"
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Height from floor to vise
</div>
</td>
<td class="TableText1">
<div align="center">37-7/16"
</div>
</td>
</tr>
<tr>
<td colspan="3" class="TableText1" bgcolor="#cccccc">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText1">
<div align="center">625 lbs. (283 kg)
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 3 YEAR</strong> – Parts
</p>
<ul>

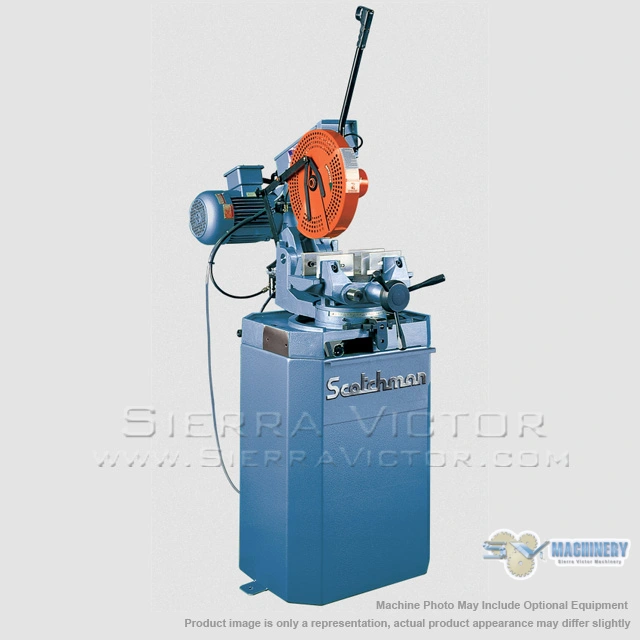

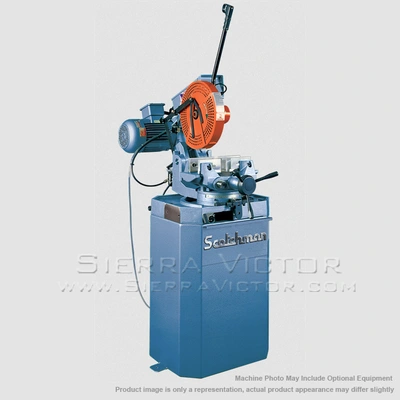

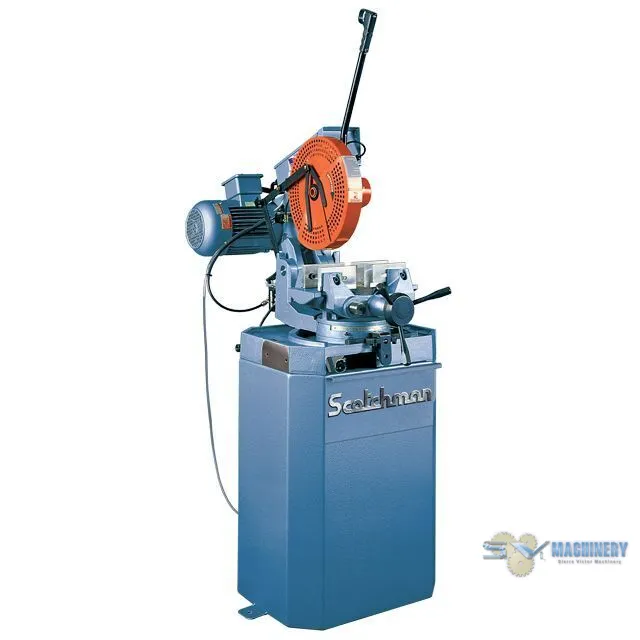

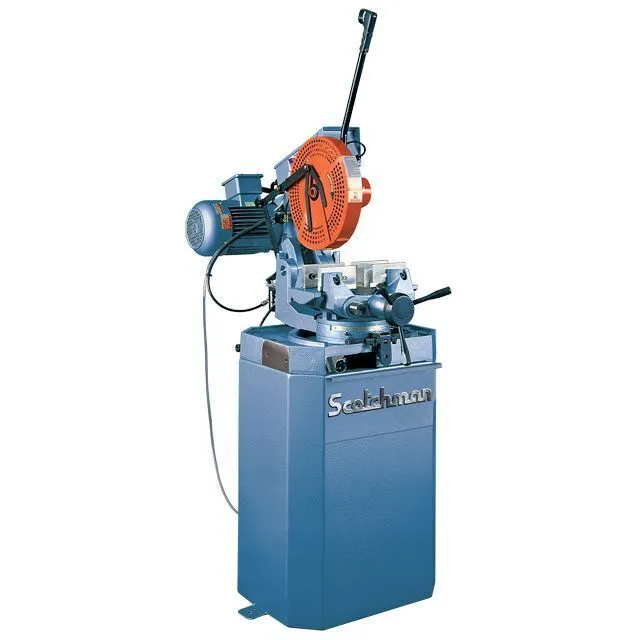

<li>Scotchman Industries powerful American-made CPO 350 NF Circular Cold Saw is the perfect machine for any fabrication shop cutting non-ferrous materials like aluminum, plastic, copper, etc. This dependable non-ferrous cold saw features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch. Additional machine features include a chip drawer, a double reduction gearbox, a two-speed motor which utilizes up to a 350mm diameter blade giving it a 4-7/8" OD round capacity. This circular cold saw machine is built with dependability and versatility in mind, with the quality you expect from a Scotchman. Always backed by their outstanding 3-Year Warranty!</li>
<li><strong>Non-Ferrous machines designed for aluminum, plastic, copper, etc.</strong></li>
<li>Miter Capabilities 45 Degrees Left and 45 Degrees Right</li>
<li>Miter Locking Device: Quick, Accurate Settings-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right</li>
<li>Manual Double Self-Centering Vise Assures Burr-Free Cuts</li>
<li>Operator Controlled Trigger Switch</li>
<li>Capable of Slotting</li>
<li>5 HP, 3,000 RPM</li>
<li>Positive Cog Belt Driven</li>
<li>Chip Drawer</li>
<li>One Gallon Coolant Tank with Mist Lubrication System</li>
<li>One 350 mm Diameter Carbide-Tipped Blade</li>
<li>One Blade Wrench</li>
<li>One Gallon Coolant</li>
<li>230 or 460 Volt /3 Phase Electrics (must specify voltage)</li>
<li><strong>Made in USA</strong></li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li> RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!</li>
<li>Laser Saw Guide: This industrial grade laser light for circular cold saws minimizes set-up time and ensures the material is being sawed to the correct length and squareness by helping the operator see the line marked for cutting. </li>
<li>Special Clamping Fixture </li>
<li>Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models) </li>
<li>Variable Speed Control: Recommended for cutting multiple shapes, sizes and thicknesses. RPM can be fine tuned to achieve optimum blade speed for each application, and increase blade life.</li>
<li>Square Tube Jaws </li>
<li>60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed. </li>
<li>10' & 20' Material Supply Track </li>
<li>Carbide-Tipped Blades: Scotchman offers carbide-tipped saw blades in stock for immediate delivery. </li>
<li>Carbide-Tipped Blade Sharpening: Scotchman offers a fast, high quality blade sharpening service.</li>
</ul>
