<table border="1" cellspacing="0" cellpadding="0" width="520">
<tbody style="text-align: center;">
<tr>
<td class="TableText" width="257" bgcolor="#cccccc">
<div>Rolling Cap. (Mild Steel)
</div>
</td>
<td class="TableText" width="257">
<div>.55"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Forming Width
</div>
</td>
<td class="TableText">
<div>122"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Number of Rolls
</div>
</td>
<td class="TableText">
<div>4
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Driven Rolls
</div>
</td>
<td class="TableText">
<div>2
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Top Roll Dia.
</div>
</td>
<td class="TableText">
<div>11.4"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Bottom Roll Dia.
</div>
</td>
<td class="TableText">
<div>10.6"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Slide Roll Dia.
</div>
</td>
<td class="TableText">
<div>8.2"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Roll Adjustment
</div>
</td>
<td class="TableText">
<div>Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Programming
</div>
</td>
<td class="TableText">
<div>Manual
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Roll Speed
</div>
</td>
<td class="TableText">
<div>16 fpm. (5 mpm)
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Upper Roll Dia.
</div>
</td>
<td class="TableText">
<div>8.662"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Roll Adjustment Back
</div>
</td>
<td class="TableText">
<div>Hydraulic
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Side Roll Dia
</div>
</td>
<td class="TableText">
<div>7"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Minimum Forming Dia
</div>
</td>
<td class="TableText">
<div>13"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Motor
</div>
</td>
<td class="TableText">
<div>10 HP
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Power
</div>
</td>
<td class="TableText">
<div>480V / 3-phase
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Dimensions (L / W / H)
</div>
</td>
<td class="TableText">
<div>176" x 58" x 39"
</div>
</td>
</tr>
<tr>
<td class="TableText" bgcolor="#cccccc">
<div>Shipping Weight
</div>
</td>
<td class="TableText">
<div>17,600 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

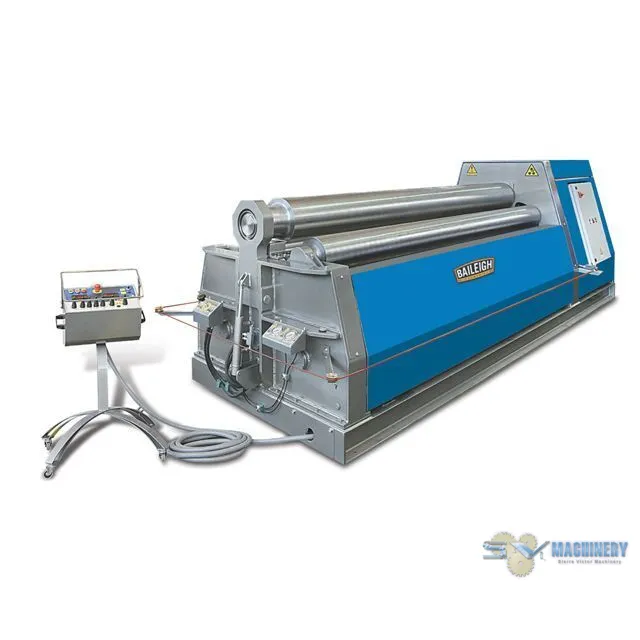

<li> Built with <strong>hydraulic motors driving planetary gearboxes</strong>, this is one of the finest plate rolls on the market. <strong>Made in Italy</strong> and refined by years of research, it will last for decades. <br>
</li>
<li><strong>½”</strong> mild steel capacity.</li>
<li><strong>120”</strong> (10-foot) length.</li>
<li>Large 10 hp motor runs on <strong>480-volt 3-phase</strong> power.</li>

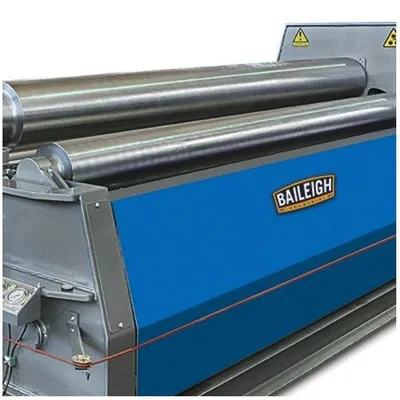

<li>All 4 forming rolls are hardened and polished.</li>
<li><strong>2 central driven rolls</strong>.</li>
<li>Dual hydraulic motors and high-efficiency <strong>planetary gearboxes</strong> directly rotate the 2 driven rolls.</li>
<li>Front rolls have independent hydraulic lifters that go in the orbital pattern.</li>
<li>Stabilizer torsion bar system keeps front rolls parallel to the top roll.</li>
<li>Fast and easy to use:
<ul>
<li>Pinch the plate between the 2 central driven rolls.</li>
<li>Pre-bend the leading edge.</li>
<li>Roll the body of the part along with the trailing edge all in one direction and in one pass.</li>
</ul>
</li>
<li><strong>Plate is pinched at all times</strong> during the rolling cycle, so there’s no chance to lose the position.</li>

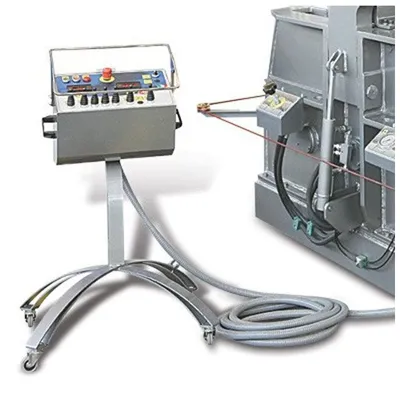

<li>Conveniently <strong>movable operator console</strong> with control panel.</li>
<li>Toggles on the console make it simple to control the roll movement.</li>
<li><strong>2 DROs</strong> on the control panel show the front and back roll positions for repeatability.</li>
<li>Hydraulic system for <strong>material removal</strong>: yoke on top roll drops, allowing the roll to lift. </li>
<li>Includes conical bending system.</li>
<li><strong>1-year parts warranty</strong>.</li>
<li>Comes with <strong>lifetime technical support</strong> by phone from our in-house team of knowledgeable reps.</li>
<li> Also available in a numerically controlled version, the PR-10500-4NC, and a computer numerically controlled version PR-10500-4CNC. <br>
</li>
</ul>
