<table cellspacing="0" cellpadding="0" border="1" width="520">
<tbody style="text-align: center;">
<tr bgcolor="#333333" class="Title_white">
<td class="TableText">
<div align="center" class="Title_white_bold">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>MODEL</strong></span>
</div>
</div>
</td>
<td width="298" class="TableText">
<div align="center"><span style="color: rgb(255, 255, 255);"><strong>HS14</strong></span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Capacity
</div>
</td>
<td class="TableText">
<div align="center">4 in. shapes, 3 in. solids
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="216" class="TableText">
<div align="center">Motor
</div>
</td>
<td class="TableText">
<div align="center"><span data-preserver-spaces="true">5HP, 1PH, 230V (only) or 3PH, 230V <br>
and/or 460V motor (specify)</span>
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Motor RPM
</div>
</td>
<td class="TableText">
<div align="center">3540
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Spindle Speed
</div>
</td>
<td class="TableText">
<div align="center">4,400 RPM
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Spindle Arbor</span>
</div>
</td>
<td class="TableText">
<div align="center">1 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Vise opening
</div>
</td>
<td class="TableText">
<div align="center">5 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center"><span data-preserver-spaces="true">Shipping Dimensions</span>
</div>
</td>
<td class="TableText">
<div align="center">L 40 x W 40 x H 42 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" width="216" class="TableText">
<div align="center">Shipping Weight
</div>
</td>
<td class="TableText">
<div align="center">300 lbs.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p>
<p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p>
<ul>

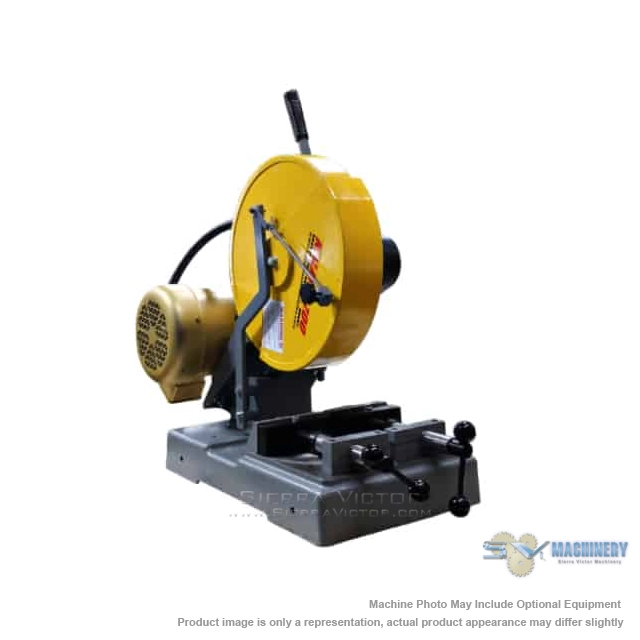

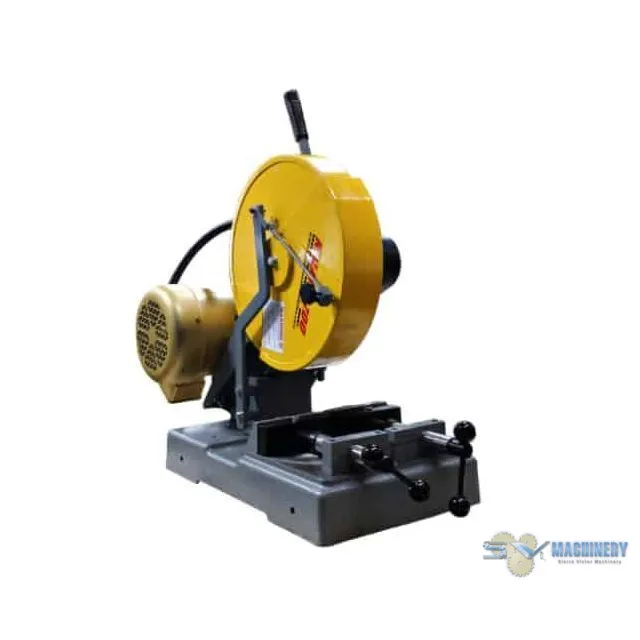

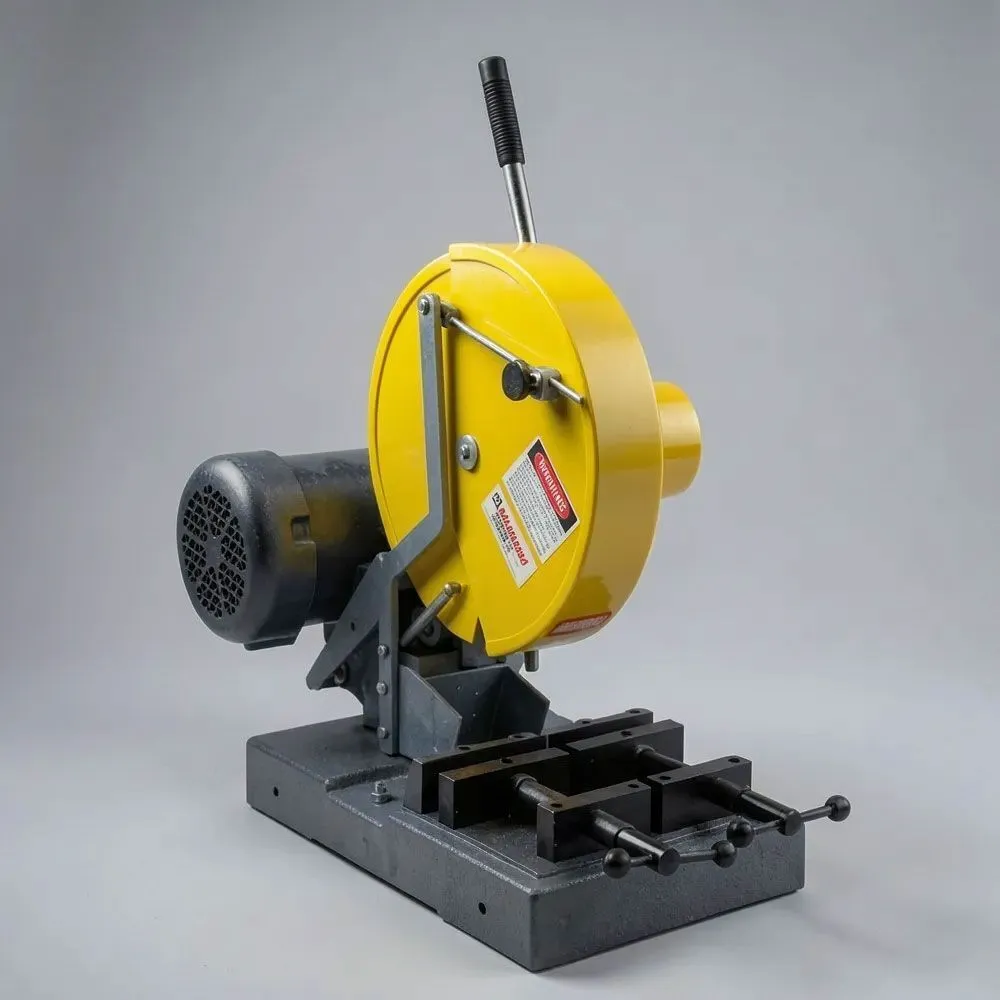

<li>The HS14 14 inch high speed non-ferrous saw is a powerful 5HP machine that will cut aluminum, brass, and other non-ferrous metals with the right high speed blade. Machine features, clamshell retractable blade guard, 5HP motor, sealed ball bearings, cast iron saw base and arm.</li>
<li>5HP 1PH 230V (only) or 3PH 230V and or 460V motor (specify)</li>
<li>Material capacities 3" solids and 4" shapes </li>
<li>Cast iron base</li>
<li>Cast iron trunnion </li>
<li>Cast iron arm</li>
<li>Adjustable threaded front stop. </li>
<li>Adjustable threaded backstop.</li>
<li>Retractable steel OSHA safety clam shell guard.</li>
<li>Magnetic on/off switch.</li>
<li>Dual screw vises. Vise opening: 5".</li>
<li>Sealed ball bearings</li>
<li><strong>DESIGNED TO CUT THE FOLLOWING MATERIAL:</strong>
<ul>
<li>Aluminum</li>
<li>Brass</li>
<li>PVC</li>
<li>Copper</li>
</ul>
</li>
<li><strong><span data-preserver-spaces="true">REMINDER: </span></strong><span data-preserver-spaces="true">CUTTING ALUMINUM AND OTHER NON-FERROUS METAL REQUIRES DIFFERENT HIGH-SPEED BLADE CONFIGURATIONS. BE SURE TO CALL YOUR BLADE SPECIALIST FOR ASSISTANCE.</span></li>
</ul>
<p><b>OPTIONAL ITEMS - CALL FOR PRICE:</b></p>
<ul>
<li>Steel Stand (12-L) - $215.00</li>
<li> PH-14 air/oil power down feed system (has to be built with the machine)- $3,100.00</li>
</ul>
