<table width="520" cellspacing="0" cellpadding="0" border="1">
<tbody style="text-align: center;">
<tr>
<td width="257" bgcolor="#cccccc" class="TableText">
<div align="center">Max Sheet Size
</div>
</td>
<td width="257" class="TableText">
<div align="center">120 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Max Shearing Capacity
</div>
</td>
<td class="TableText">
<div align="center">12 Gauge Mild Steel @ 65,000 PSI UTS 1
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Shear Angle
</div>
</td>
<td class="TableText">
<div align="center">1Degree 30
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">No Load Strokes
</div>
</td>
<td class="TableText">
<div align="center">47 per minute
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Adjustment Range of Back Gauge
</div>
</td>
<td class="TableText">
<div align="center">0.75 - 36 in.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Main Motor
</div>
</td>
<td class="TableText">
<div align="center">15 HP, 220 or 440 Volts, 3-phase <br>
(Please specify your voltage requirement.)
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Net Weight
</div>
</td>
<td class="TableText">
<div align="center">8,709 lbs.
</div>
</td>
</tr>
<tr>
<td bgcolor="#cccccc" class="TableText">
<div align="center">Dimensions (L x W x H)
</div>
</td>
<td class="TableText">
<div align="center">143 x 89 x 55 in.
</div>
</td>
</tr>
</tbody>
</table>
<p>Specifications are subject to change without notice.
</p>
<p>NOTE: Data is provided by the manufacturer.
</p><p><strong>WARRANTY: 1 YEAR</strong> – Parts
</p><br><ul>
<li>Squaring Arm with inlaid scale, 39”</li>
<li>Low Noise Gear Pump</li>
<li>High Carbon, High Chrome Shear Blades</li>
<li>Hold-downs faced w/anti-mar neoprene</li>
<li>Hydraulic, Electrical Overload Protection</li>
<li>Swing Beam Design</li>
<li>Pressure Sensing Hold Downs</li>
<li>Support Arms Included</li>
<li>Squaring Arm, 39” from blade to end</li>
<li>Electric Stroke Adjustment</li>
<li>Stroke Counter</li>

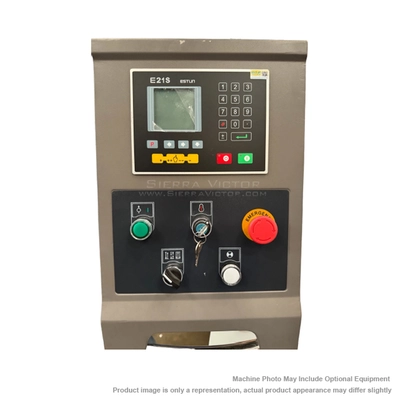

<li>Operator Control Console</li>
<li>Numerically controlled controller</li>
<li>Rear Safety Guard</li>
<li>Blade Guard</li>
<li>Moveable Foot Pedal</li>
<li>Bed Infill Plates w/ Ball Transfers</li>
<li>Cutting Illumination</li>
</ul>
